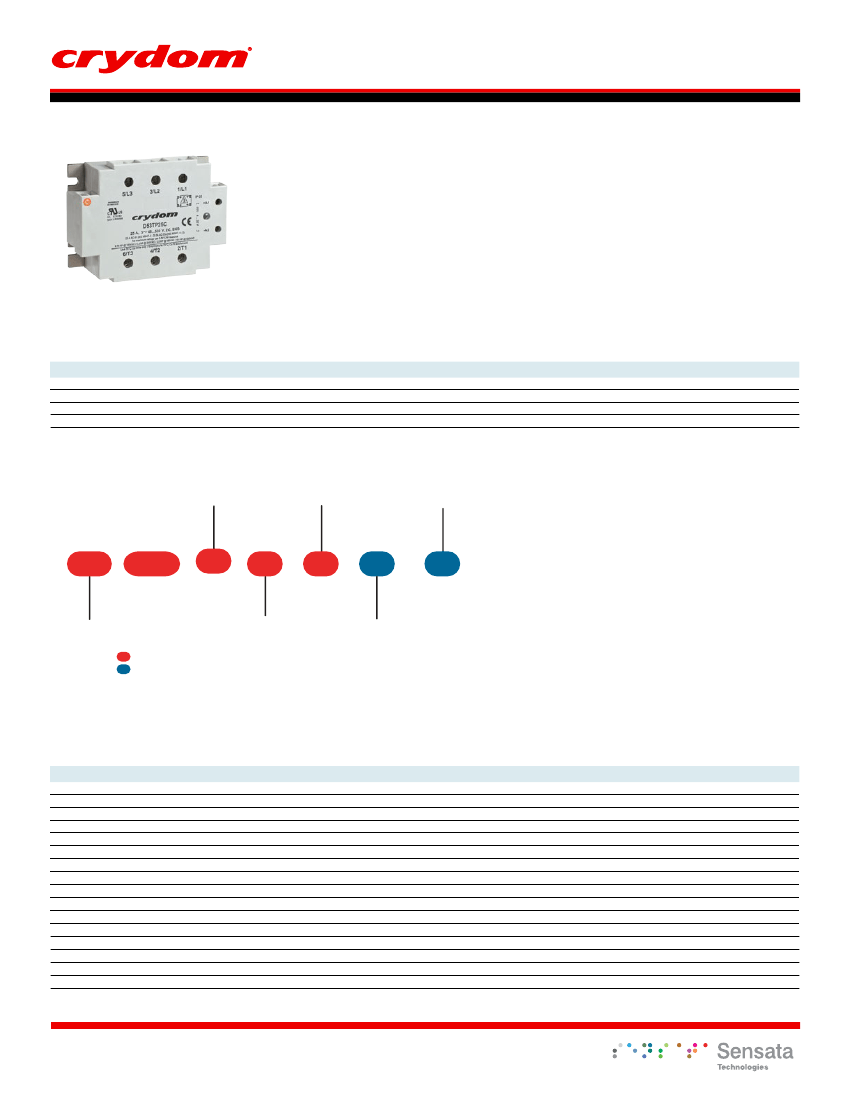

DataSheet
53TP Series IP20
•
Three-phase solid-state relay; Ratings 25 A, 50 A per phase @ 48-530 VAC
•
2 package styles IP20 or IP00 (See IP00 spec sheet for more information)
•
SCR output for heavy industrial loads
•
AC or DC control
•
Zero-crossing (resistive loads) or random-fire (inductive loads) output
•
LED input status indicator
•
Transient protection built in
Panel Mount
PRODUCT SELECTION
Control Voltage
90-140 VAC
80-260 VAC
4-32 VDC
18-36 VAC
25 A
B53TP25C
C53TP25C
D53TP25C
E53TP25C
50 A
B53TP50C
C53TP50C
D53TP50C
E53TP50C
AVAILABLE OPTIONS
Type
TP:
3 switched channels
Series
Cover
C:
IP20
Relay Options
Blank:
Zero Voltage Turn-On
-10:
Random Turn-On
D
53
TP
25
C
H
-10
Control Voltage
B:
90-140 VAC
C:
180-260 VAC
D:
4-32 VDC
E:
18-36 VAC
Load Current/per phase
25:
25 Amps
50:
50 Amps
Relay Options
H:
Thermal pad installed
Required for valid part number
For options only and not required for valid part number
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
(2)
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/ sec]
(2)
Maximum Load Current [Arms]
(3)
Minimum Load Current [Arms]
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]
Maximum 1 Second Surge Current 50/60 Hz [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum 1/2 Cycle I²t for Fusing (50/60 Hz) [A² sec]
Minimum Power Factor (with Maximum Load)
UL/IEC 60947 Motor Control Ratings at 120V [HP/KW]
(4)
UL/IEC 60947 Motor Control Ratings at 240V [HP/KW]
(4)
UL/IEC 60947 Motor Control Ratings at 380V [HP/KW]
(4)
UL/IEC 60947 Motor Control Ratings at 480V [HP/KW]
(4)
25 A
48-530
1200
3
500
25
0.1
275/300
85
1.35
0.24
380/370
0.5
0.75/0.56
1/0.74
2/1.48
3/2.22
50 A
48-530
1200
3
500
50
0.1
710/750
150
1.35
0.12
2520/2320
0.5
1.5/1.11
3/2.22
5/3.7
7.5/5.55
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
(5)
Maximum Turn-Off Time [msec]
Panel Mount
E53
18-36 VAC
18
2
15 mA
20 mA
Current Regulated
20
30
D53
4-32 VDC
4.0 VDC
1.0 VDC
24 mA
35 mA
Current Regulated
8.33
8.33
B53
90-140 VDC
90
10
7.0 mA
16 mA
Current Regulated
20
30
C53
180-260 Vrms
180
10
7.0 mA
20 mA
Current Regulated
20
30
GENERAL SPECIFICATIONS
(1)
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Terminals
Screws and Saddle clamps
Input Terminal Screw Torque Range:[in lbs/Nm]
Output Terminal Screw Torque Range:[in lbs/Nm]
Parameters
4000 Vrms
10
9
Ohms
8 pF
-40ºC to 80ºC
-40ºC to 125ºC
13.1 oz (370g)
NA
Hardware Furnished, mounted
Zinc plated Steel
8-10 / 0.9-1.1
15-20 / 1.7-2.2
1)
All parameters at 25°C unless otherwise specified.
2)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
3)
Heat sinking required, see page 3 for derating curves.
4)
At 40°C Ambient temperature.
5)
Turn-on time for Random turn-on versions is 0.02 msec (DC Control Models)
GENERAL NOTES
MECHANICAL SPECIFICATIONS
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
4.0 [101.3]
3.6 [92.0]
5/L3
1.87 [47.6]
3/L2
1/L1
3.2 [79.7]
0.2 [5.1]
6/T3
4/T2
2/T1
0.8 [19.3]
1.5 [38.6]
1.45 [36.83]
4.09 [103.9]
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
DataSheet

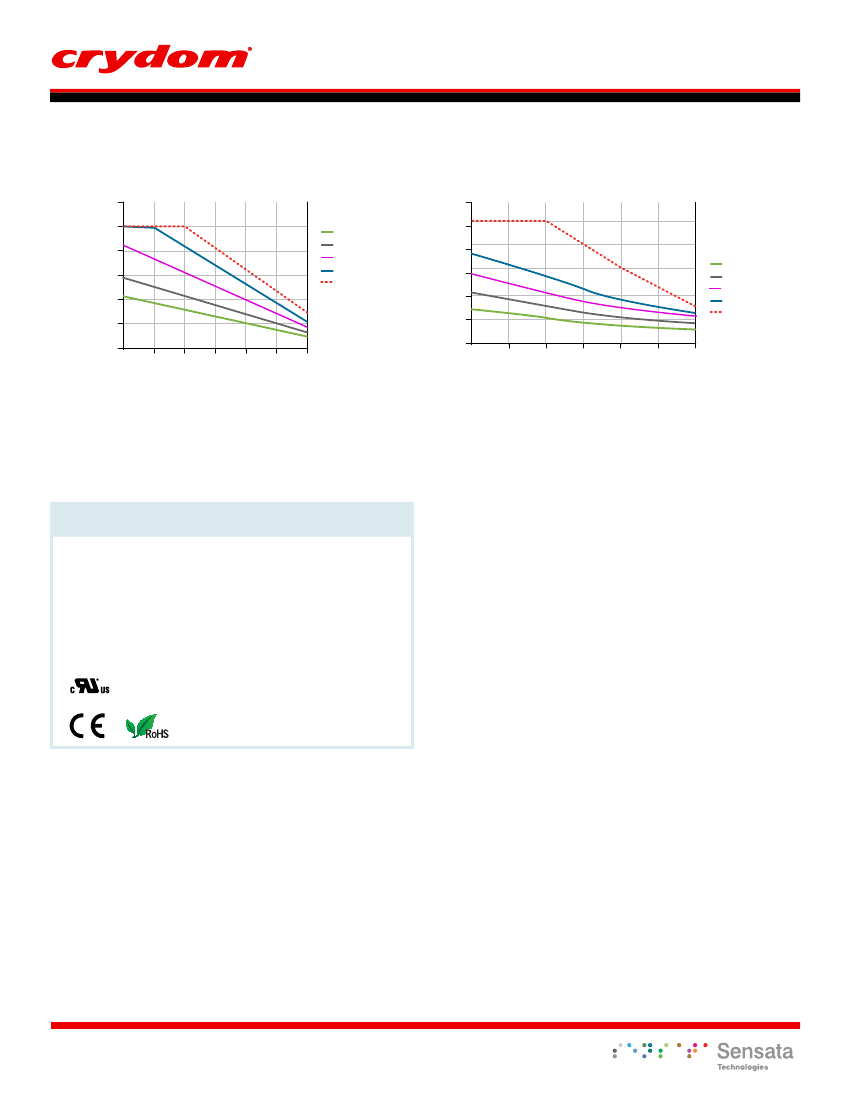

THERMAL DERATE INFORMATION
DERATE CURVES:
53TP IP20 25A
Panel Mount
DERATE CURVES:
53TP IP20 50A
Load Currect Per Channel
2.0˚C/W
1.5˚C/W
1.0˚C/W
0.7˚C/W
0.5˚C/W
Load Currect Per Channel
25
(Amperes)
50
(Amperes)
20
15
10
5
0
20
30
40
50
60
70
80
Ambient Temperature [°C]
40
30
20
10
0
20
30
40
50
60
70
80
Ambient Temperature [°C]
1.5˚C/W
1.0˚C/W
0.7˚C/W
0.5˚C/W
0.2˚C/W
AGENCY APPROVALS
Agency Approvals
Designed in accordance with the requirements of IEC 62314
EN60950 : Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7:
IEC 62314
IEC 60068-2-6 35mm / 10-55Hz
IEC 60068-2-27 15G / 11ms
IEC 1000-4-2 : Electrostatic Discharge – Level 3
IEC 1000-4-3 : Radiated Electromagnetic Noise – Level 3
IEC 1000-4-4 : Electrically Fast Transients – Level 3
IEC 1000-4-5 : Electrical Surges – Level 3
IEC 1000-4-6 : Conducted Electromagnetic Noise – Level 3
E79183
Rev. 062316
