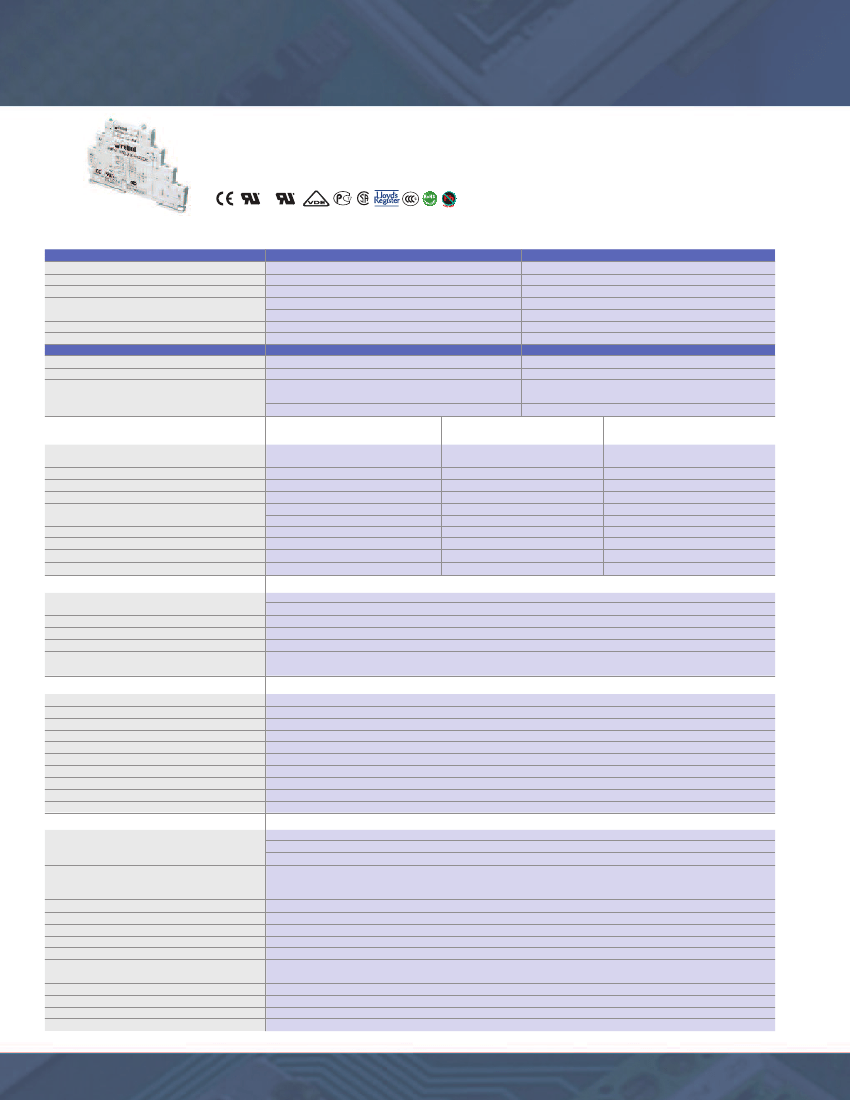

PIR6W-1PS
Subminiature Electromagnetic and Solid State Modules
•
•
•
•
•
Screw Clamp Terminals
Electronic
screw
terminals socket (PI6W-1PS)
Electromagnetic relay (RM699BV) or solid state relay (RSR30)
Width 6.2 mm
Equipped with green LED
E105728 E228916
PIR6W-1PS
Electromagnetic Relay (RM699BV)
contact information
Number and type of contacts (code of output)
Contact material
Max. switching voltage
Min. switching voltage
AC / DC
Rated load
AC1
DC1
Min. switching current
Max. inrush current
Rated current
Max. / Min. breaking capacity
AC1
Contact resistance
Max. operating frequency
• at rated load
AC1
• no load
SPDT (R)
AgSnO
2
400 V AC / 250 V DC
10 V
6 A / 250 V AC
6 A / 24 V DC; 0.15 A / 250 V DC
100 mA
10 A
20 ms
6A
1500 VA / 1 W
≤
100 mΩ
100 mA. 24 V
360 cycles/hour
72 000 cycles/hour
SPDT (R-01)
AgSnO
2
/ Au3µm
30 V AC / 36 V DC
5V
0.05 A / 30 V AC
0.05 A / 36 V DC
10 mA
0.1 A
20 ms
0.05A
1.2 VA / 0.05 W
≤
30 mΩ
10 mA. 5 V
360 cycles/hour
72 000 cycles/hour
Solid State (RSR30)
output information
Type of output (code of output)
Number and type of outputs
Rated voltage
Max./ Min. output voltage
Rated continuous output current
Triac (T)
max. 2 A
SPST (1 NO)
240 V AC
280 V AC / 12 V AC
1A
50 mA
1.5 mA
1.2 V
Transistor (C)
max. 1 A
SPST (1 NO)
48 V DC
60 V DC / 1.5 V DC
1A
1 mA
1 mA
0.4 V
10 Hz
6 ... 60 V
24 ... 230 V
AC:
≥
0.2 U
n
; DC:
≥
0.1 U
n
0.8...1.2 U
n
; 0.85...1.2 U
n 6 V DC
≤
0.8 U
n
;
≤
0.85 U
n 6 V DC
0.2 ... 0.5 W
0.5 ... 1.2 VA / 0.4 ... 1.2 W
250 V AC
4000 V
1.2 / 50 µs
III
3
4000 V AC
50/60 Hz. 1 min.. type of insulation: reinforced
6000 V
1.2 / 50 µs
2500 V AC
50/60 Hz. 1 min.
1000 V AC
50/60 Hz. 1 min.. output R and R-01
≥
6 mm /
≥
8 mm
≥
3 mm /≥ 3.6 mm
DC: 8 ms
DC: 100 µs
DC: 50 µs
DC: 10 ms
DC: 1/2 cycle + 1 ms
DC: 600 µs
> 0.5 x 10
5
> 10
7
98.5 x 6.2 x 85.5 mm
45 g
PIR6W-1PS-...--R/-R01-T: -40...+70 °C ...-C/-O:
PIR6W-1PS-...-R/-R01:
-40...+55 °C ...-T/-C/-O:
PIR6W-1PS-230VAC/DC-R: -40...+50 °C ...-C/-O:
IP 20 PN-EN 60529
RTI
PN-EN 116000-3
10 g
5 g
10...500 Hz
PIR6W-1PS-...-R/-R01:
PIR6W-1PS-...-T:
PIR6W-1PS-...-C/-O:
PIR6W-1PS-...-R/-R01:
PIR6W-1PS-...-T:
PIR6W-1PS-...-C/-O:
PIR6W-1PS-...-R:
PIR6W-1PS-...-R/-R01:
AC/DC: 20 ms
AC/DC: 10 ms
AC/DC: 10 ms
AC/DC: 25 ms
AC/DC: 30 ms
AC/DC: 20 ms
6 A. 250 V AC
Transistor (O)
max. 2 A
SPST (1 NO)
24 V DC
32 V DC / 1.5 V DC
2A
1 mA
1 mA
0.24 V
10 Hz
AC1
DC1
Min. making capacity current
Max. off-state leakage current (rest condition)
Max. on-state voltage drop on the connection (operating state)
Operating switching frequency
Input Circuit
Rated voltage
Must release voltage
Operating range of supply voltage
Must operate voltage
Rated power consumption
DC
AC: 50/60 Hz
AC/DC
DC
AC/DC
Insulation
Insulation rated voltage
Rated surge voltage
Overvoltage category
Insulation pollution degree
Dielectric strength: input - output
Dielectric strength: input - output
Dielectric strength: mass - input. output
Dielectric strength: contact clearance
Input - output distance: clearance / creepage
Mass - input. output distance: clearance / creepage
General data
Operating time (typical value)
Release time (typical value)
Electrical life (resistive AC1)
Mechanical life (cycles)
Dimensions (L x W x H)
Weight
Ambient temperature: storange
Ambient temperature: operating
Protection category
Environmental protection
Shock resistance
Vibration resistance
T - triac; C - transistor; O - transistor.
-25...+70 °C
-20...+55 °C
-20...+50 °C
94
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
DATA SUBJECT TO CHANGE WITHOUT NOTICE
PIR6W-1PS
Subminiature Electromagnetic and Solid State Modules
PIR6W-1PS
E105728 E228916

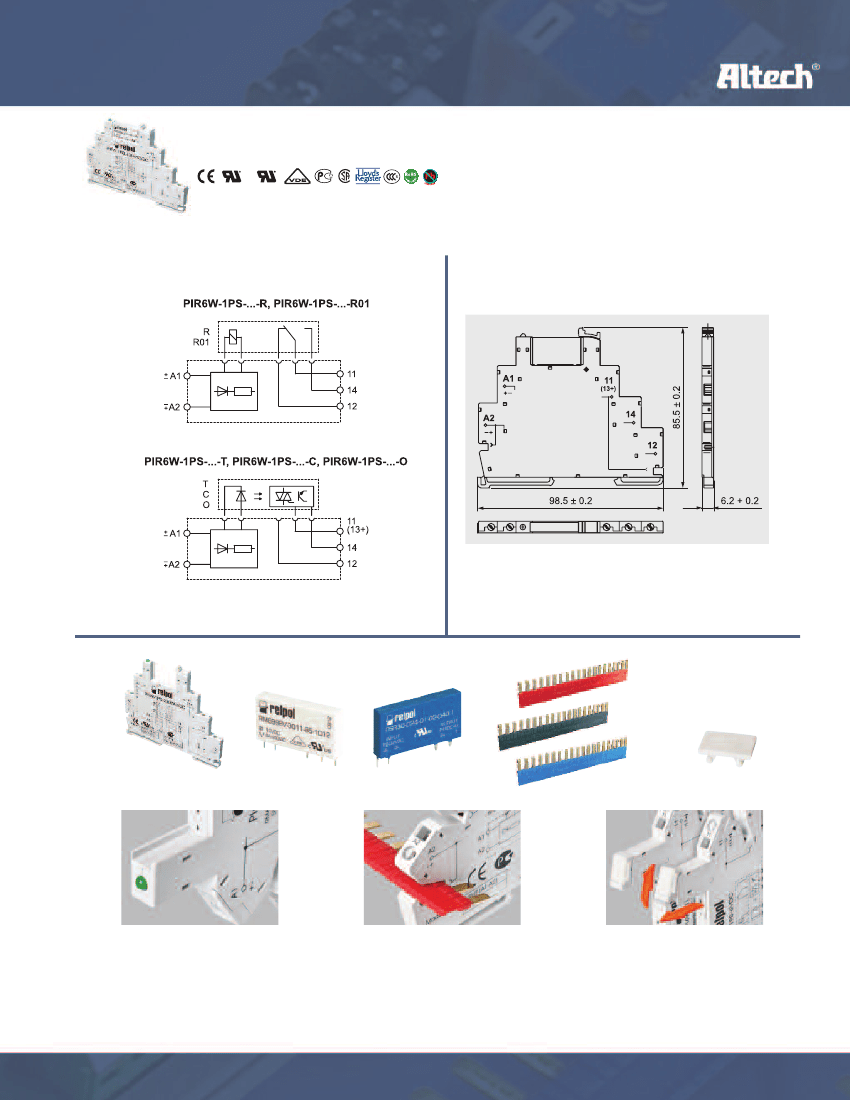

CONNECTION DIAGRAMS
DIMENSIONS
ZG20-1
ZG20-2
ZG20-3
PI6W-1P-...
RM699BV
RSR30
PI6W-1246
Green LED:
signalling the operation
status of the relay.
Interconnection strip ZG20:
bridging of common
input or output signals.
Movable ejector:
protection
and easy replacement
of the operational relay.
All accessories are sold separately.
Altech Corp.
®
• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
DATA SUBJECT TO CHANGE WITHOUT NOTICE
95

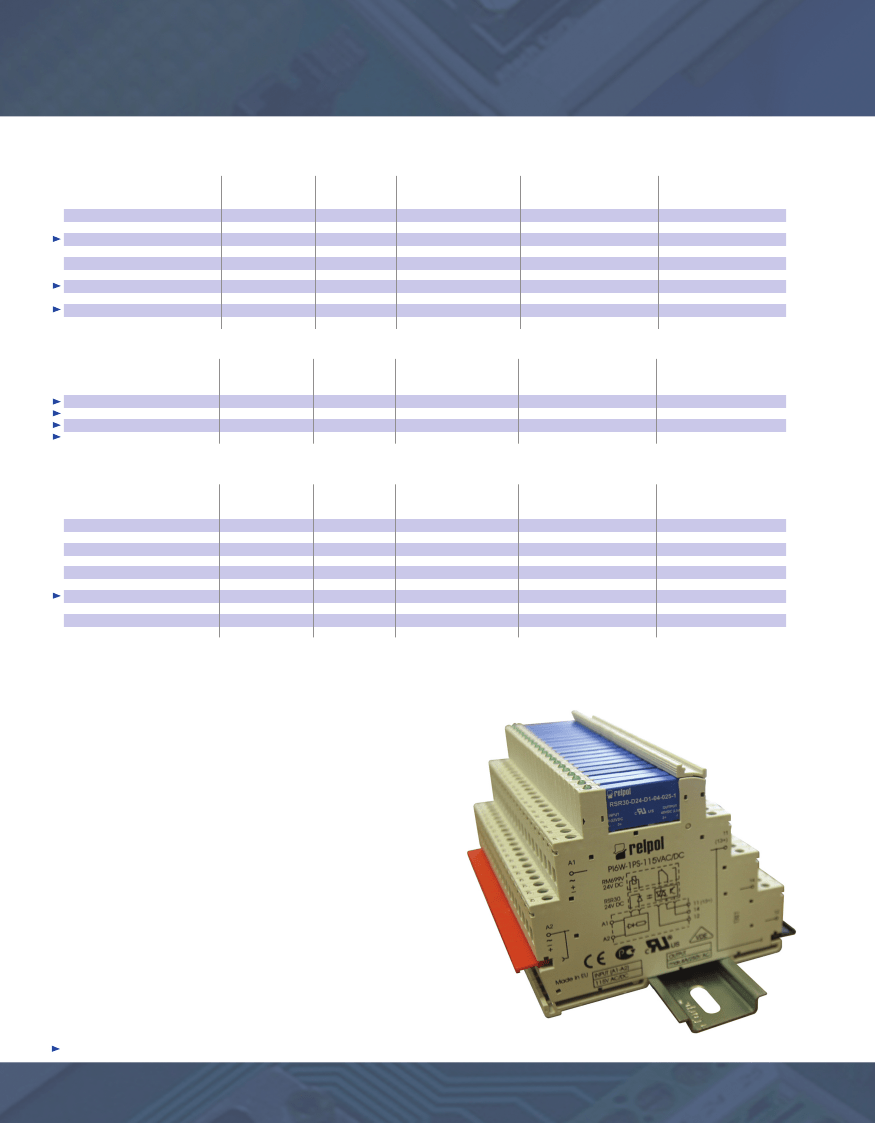

PIR6W-1PS
Subminiature Electromagnetic and Solid State Modules
Electromagnetic Relays
Featuring
Electromagnetic
relay RM699BV /
6A;
250VAC / 24VDC
Part Number
PIR6W-1PS-6VDC-R
PIR6W-1PS-12VDC-R
PIR6W-1PS-24VDC-R
PIR6W-1PS-36VDC-R
PIR6W-1PS-48VDC-R
PIR6W-1PS-60VDC-R
PIR6W-1PS-24VAC/DC-R
PIR6W-1PS-42VAC/DC-R
PIR6W-1PS-115VAC/DC-R
PIR6W-1PS-230VAC/DC-R
Rated input
voltage Un
6 V DC
12 V DC
24 V DC
36 V DC
48 V DC
60 V DC
24 V AC/DC
42 V AC/DC
115 V AC/DC
230 V AC/DC
Power of
input circuit
0.3 W
0.2 W
0.3 W
0.3 W
0.4 W
0.5 W
VA / 0.4
VA / 0.4
VA / 1.2
VA / 1.2
Socket code
PI6W-1PS-6VDC
PI6W-1PS-12/24VDC
PI6W-1PS-12/24VDC
PI6W-1PS-36VDC
PI6W-1PS-48VDC
PI6W-1PS-60VDC
PI6W-1PS-24VAC/DC
PI6W-1PS-42VAC/DC
PI6W-1PS-115VAC/DC
PI6W-1PS-230VAC/DC
*Operational
relay code
RM699BV-3011-85-1005
RM699BV-3011-85-1012
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1012
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1048
Rated voltage of
operational relay Us
5 V DC
12 V DC
24 V DC
24 V DC
24 V DC
24 V DC
12 V DC
24 V DC
24 V DC
48 V DC
0.5
0.5
1.2
1.2
W
W
W
W
Electromagnetic
relay RM699BV /
6A;
250VAC / 24VDC universal input
Part Number
PIR6W-1P-12U
PIR6W-1P-24U
PIR6W-1P-115U
PIR6W-1P-230V AC/DC
Rated input
voltage Un
12 V DC
24 V AC/DC
115 V AC/DC
230 V AC/DC
Power of
input circuit
0.3 W
0.3 VA / 0.3 W
0.9 VA / 0.9 W
0.8 VA / 0.8 W
Socket code
PI6W-1P-12VDC
PI6W-1P-24VAC/DC
PI6W-1P-115VAC/DC
PI6W-1P-230VAC/DC
*Operational
relay code
RM699BV-3011-85-1012
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1060
Rated voltage of
operational relay Us
12
24
24
60
V
V
V
V
DC
DC
DC
DC
Featuring
Electromagnetic
relay RM699BV /
0.05A;
30VAC / 36VDC. gold plated contacts
Part Number
PIR6W-1PS-6VDC-R01
PIR6W-1PS-12VDC-R01
PIR6W-1PS-24VDC-R01
PIR6W-1PS-36VDC-R01
PIR6W-1PS-48VDC-R01
PIR6W-1PS-60VDC-R01
PIR6W-1PS-24VAC/DC-R01
PIR6W-1PS-42VAC/DC-R01
PIR6W-1PS-115VAC/DC-R01
PIR6W-1PS-230VAC/DC-R01
Rated input
voltage Un
6 V DC
12 V DC
24 V DC
36 V DC
48 V DC
60 V DC
24 V AC/DC
42 V AC/DC
115 V AC/DC
230 V AC/DC
Power of
input circuit
0.3 W
0.2 W
0.3 W
0.3 W
0.4 W
0.5 W
VA / 0.4
VA / 0.4
VA / 1.2
VA / 1.2
Socket code
PI6W-1PS-6VDC
PI6W-1PS-12/24VDC
PI6W-1PS-12/24VDC
PI6W-1PS-36VDC
PI6W-1PS-48VDC
PI6W-1PS-60VDC
PI6W-1PS-24VAC/DC
PI6W-1PS-42VAC/DC
PI6W-1PS-115VAC/DC
PI6W-1PS-230VAC/DC
*Operational
relay code
RM699BV-3011-85-1005
RM699BV-3011-85-1012
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1012
RM699BV-3011-85-1024
RM699BV-3011-85-1024
RM699BV-3011-85-1048
Rated voltage of
operational relay Us
5 V DC
12 V DC
24 V DC
24 V DC
24 V DC
24 V DC
12 V DC
24 V DC
24 V DC
48 V DC
0.5
0.5
1.2
1.2
W
W
W
W
*
It should be noted that the rated input voltage of the operational relay (Us) is not always the same as the rated input voltage of the relay and socket combination (Un)
(This is important when ordering operational relays for sockets).
