38BC-4-V-4-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 38BC-4-V-4-S

38BC-4-V-4-S: DescriptionPushbutton Switches Pushbutton Switch, SPDT, momentary, .215" plunger, silver contact, o-ring seal, RoHS, RoHS Compliant; CategoryMechanical and electronic products switch; File Size109KB，1 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

38BC-4-V-4-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38BC-4-V-4-S	-	-	View	Buy Now

38BC-4-V-4-S Overview

Pushbutton Switches Pushbutton Switch, SPDT, momentary, .215" plunger, silver contact, o-ring seal, RoHS, RoHS Compliant

38BC-4-V-4-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Actuator type	PLUNGER
body width	5.08 mm
body height	8.89 mm
Body length or diameter	8.13 mm
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Electrical life	80000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

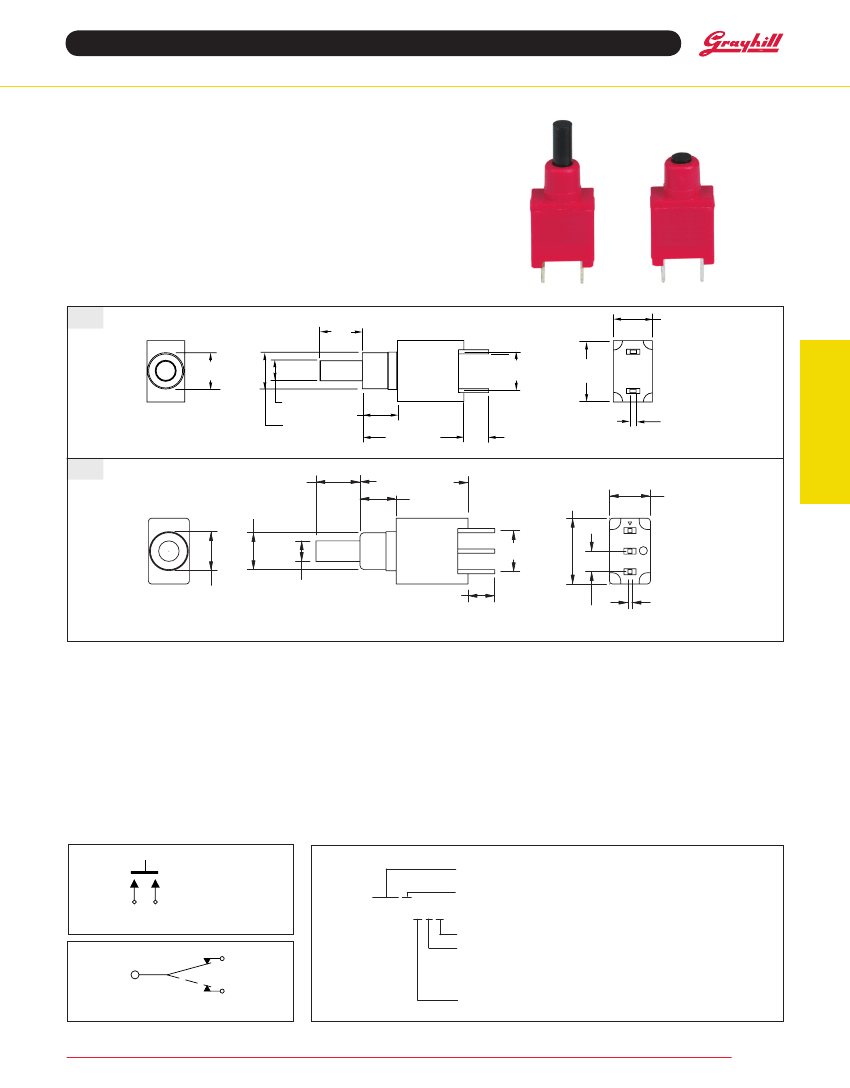

Butt Contact Pushbutton Switches

SerieS 38Bt and 38BC

Sub-Miniature Vertical PC Mount

FeatureS

• Actuates at Right Angle to Printed Circuit Board

• Drop-In Replacement for Industry Standard

• SPST and SPDT, Momentary Contact

• Sealed Plunger Option

diMenSiOnS

in inches (and millimeters)

38Bt

Dim.

.190 (4,83)

DIA.

.100 (2,54)

DIA.

.200

(5,08)

.320

(8,13)

.200

(5,08)

Pushbutton Switches

SPSt

38BC

.177

.180 (4,57) (4,50)

DIA.

.020 (0,51)

SQUARE

.527 (13,39)

.130 (3,30) TYP.

DIM "A"

.180

(4,57)

DIA.

.527(13,39)

.177

(4,50)

.320

(8,13)

.200

(5,08)

.200

SPdt

.190

(4,83)

DIA.

.100

(2,54)

DIA.

.130

(3,30)

TYP.

.100

(2,54)

TYP.

SPeCiFiCatiOnS

electrical ratings

Operating Life: 80,000 make-and-break

cycles at full load

Contact rating (resistive load):

Gold Contacts: 0.4 VA maximum at 20 Vac or

Vdc

Silver Contacts: 1.0 Amp maximum at 120

Vac or 28 Vdc

Contact resistance: Below 20 milliohms

typical initial at 2-4 Vdc, 100 mA, for both

silver and gold-plated contacts

insulation resistance: 1000 megaohms

minimum

Voltage Breakdown: 1000 Vrms minimum at

sea level

Operating temperature: -30°C. to +85°C.

Solderability: Per MIL-STD-202F, Method

208D, or EIA RS-186E, Method 9 (1 hour

steam aging)

Unless otherwise indicated, tolerances are ± .010 (0,25)

Materials and Finishes

Base and Cover: Thermoplastic (UL 94V-0)

Plunger: Thermoplastic (UL 94V-0), (S

versions include an internal o-ring seal)

terminals: Copper alloy, gold or silver plate

(as specified) over nickel plate

Spring: Plated music wire

Contact System: Copper alloy, gold or silver

plate (as specified) over nickel plate

CirCuitry

OrderinG inFOrMatiOn

38Bt-4-V-3-S

Series: 38BT = SPST, Momentary, Thru-Hole

Series: 38BC = SPDT, Momentary, Thru-Hole

dimension a: 0 = 0.020" 4 = 0.215"

Seal: S = O-Ring Seal, N = No Seal

Contact Material: 1 = Solder Dip over Gold

2 = Solder Dip over Silver

3 = Gold - RoHS Compliant

4 = Silver - RoHS Compliant

Orientation: V = Vertical to PCB

SPSt–n.O.

SPSt n.O.

COMM

TERM. 2

N.C.

TERM. 1

N.O.

TERM. 3

SPdt–n.O.

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

.020 (0,51)

SQ. TYP.

38BC-4-V-4-S Related Products

	38BC-4-V-4-S	38BT-0-V-3-N	38BT-0-V-1-N	38BT-0-V-4-N	38BT-4-V-2-N	38BC-0-V-1-S	38BT-4-V-2-S	38BT-0-V-2-S	38BC-4-V-3-S	38BT-4-V-4-S
Description	Pushbutton Switches Pushbutton Switch, SPDT, momentary, .215" plunger, silver contact, o-ring seal, RoHS, RoHS Compliant	Pushbutton Switches Pushbutton Switch, .020" plunger, gold contact, no seal, RoHS Compliant	Pushbutton Switches Pushbutton Switch, .020" plunger, gold contact, no seal	Pushbutton Switches Pushbutton Switch, .020" plunger silver contact, no seal, RoHS Compliant	Pushbutton Switches Pushbutton Switch, .215" plunger, silver contact, no seal	Pushbutton Switches Pushbutton Switch, SPDT, momentary, .020" plunger, vertical to PCB, solder dip over gold contact, o-ring seal	Pushbutton Switches Pushbutton Switch, .215" plunger, silver contact, o-ring seal	Pushbutton Switches Pushbutton Switch, .020" plunger, silver contact, o-ring seal	Pushbutton Switches Pushbutton Switch, SPDT, momentary, .215" plunger, gold contact, o-ring seal, RoHS, RoHS Compliant	Pushbutton Switches Pushbutton Switch, .215" plunger, vertical to PC board, silver contact, o-ring seal, RoHS Compliant
Is it lead-free?	Lead free	Lead free	Contains lead	Lead free	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	incompatible	conform to	incompatible	incompatible	incompatible	incompatible	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Actuator type	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body width	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
body height	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm
Body length or diameter	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm	8.13 mm
Contact (AC) maximum rated R load	1A@120VAC	.02A@20VAC	.02A@20VAC	1A@120VAC	1A@120VAC	.02A@20VAC	1A@120VAC	1A@120VAC	.02A@20VAC	1A@120VAC
Maximum contact current (AC)	1 A	0.02 A	0.02 A	1 A	1 A	0.02 A	1 A	1 A	0.02 A	1 A
Maximum contact current (DC)	1 A	0.02 A	0.02 A	1 A	1 A	0.02 A	1 A	1 A	0.02 A	1 A
Contact (DC) maximum rated R load	1A@28VDC	.02A@20VDC	.02A@20VDC	1A@28VDC	1A@28VDC	.02A@20VDC	1A@28VDC	1A@28VDC	.02A@20VDC	1A@28VDC
Maximum contact voltage (AC)	120 V	20 V	20 V	120 V	120 V	20 V	120 V	120 V	20 V	120 V
Maximum contact voltage (DC)	28 V	20 V	20 V	28 V	28 V	20 V	28 V	28 V	20 V	28 V
Electrical life	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)
JESD-609 code	e4	e4	e0	e4	e0	e0	e0	e0	e4	e4
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPST	SPST	SPST	SPST	SPDT	SPST	SPST	SPDT	SPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Terminal surface	Silver (Ag)	Gold (Au)	Tin/Lead (Sn/Pb)	Silver (Ag)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Gold (Au)	Silver (Ag)
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Base Number Matches	1	1	-	1	1	1	1	1	1	1
