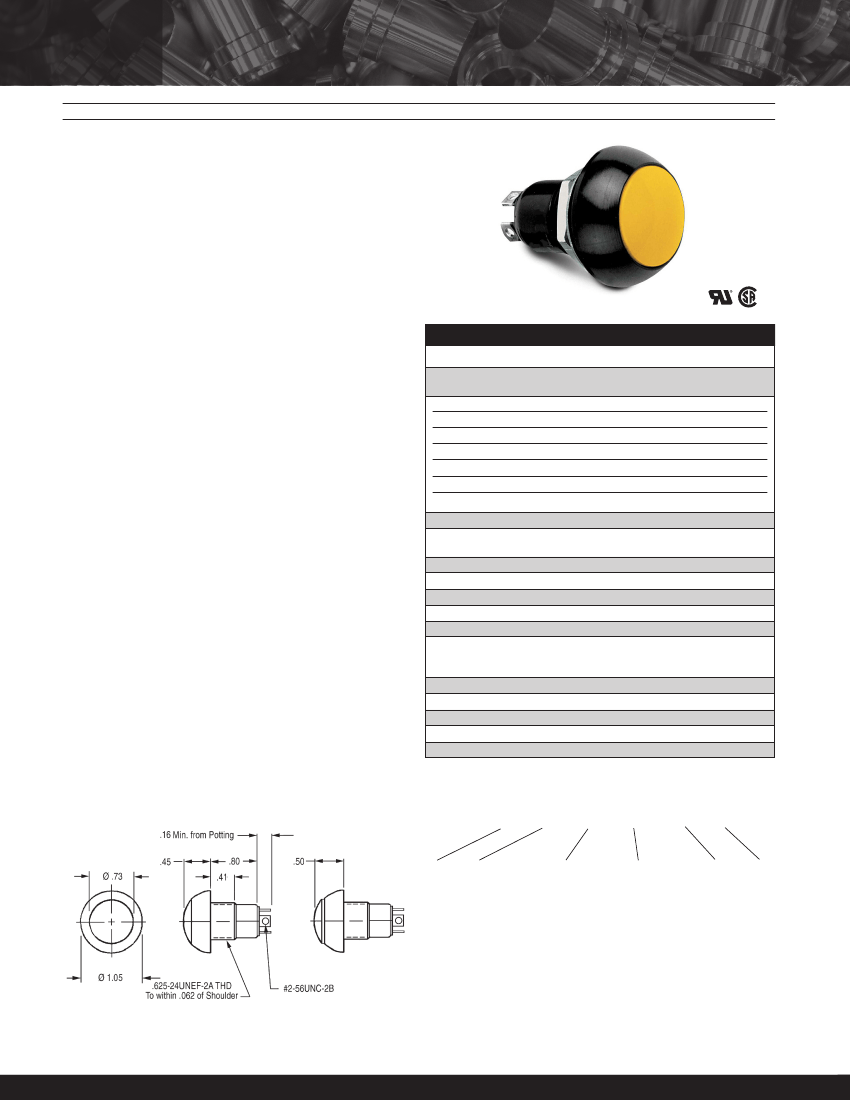

P3-D
DOME
PUSHBUTTONS
SEALED DOME PUSHBUTTON SWITCHES
MOMENTARY ACTION, ATTRACTIVE & RUGGED FOR WET & DUSTY ENVIRONMENTS
Rugged pushbutton switches with new contoured dome styling.
There are two design versions: flush dome and raised dome
button profile. They also offer excellent mechanical and
electrical performance while operating under severe conditions
found in demanding applications.
The P3-D Dome features dusttight and moistureproof or
watertight sealed construction to IP68S and IP69K (add “W” to your
part number for watertight seal). 100,000 operations at rated load of 10
amps resistive or 5 amps inductive; up to a million mechanical
operations in low level switching applications.
The P3-D Dome is available in standard and low operating force
double break snap-action models. All are momentary action.
Special contact variations are available. High contact pressure
and unique contact design provide low contact resistance for
low level switching capability as well as full rated service.
The P3-D Dome is a quality precision snap-action switch
designed for use in panels, control sticks, computers,
instruments, heavy equipment and other demanding
applications where attractive, rugged pushbutton switches
are required.
Flush Dome Button
®
C
US
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Resistive
Inductive
Lamp
Center Contact
DWV
Low Level
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Total Travel:
Overtravel:
Sea Level @ 28VDC
or 115VAC, 60/400Hz
10A
15A
5A
3A
3A max
1050Vrms
10mA @ 30mV
See Rating Chart
1,000,000 cycles, circuit forms 1, 2 & 6
100,000 cycles, circuit forms 3, 4 & 5
IP64 or IP68S and IP69K
2.0 lbs. to 4.0 lbs., +0.5/-1.0 lb.
0.075 +/- 0.015 inches
0.012 inches min
100,000
Cycles
100,000
25,000
100,000
100,000
100,000
Features:
•
•
•
•
•
•
•
•
•
Attractive dome style button
2 contoured button styles
Double break momentary action
Withstands extreme shock & vibration
Positive tactile feedback
Solder & screw terminal styles
Moistureproof & dusttight to IP64
Watertight to IP68S and IP69K available
RoHS/WEEE/Reach compliant
Operating Temp Range:
-55°C to +85°C
Movement Differential:
0.015 inches min
MATERIALS:
Case:
Button:
Terminals:
Terminal Hardware:
Mounting Hardware:
Anodized aluminum alloy
Thermoplastic
Brass with silver plate, gold plate for low level
Screws, lockwasher and terminal lugs
Hex nut, lockwasher and panel seal when applicable
P3-D
X
P3-D PART NUMBER CODE
X
X
X
X
X
*
Button
Style
1.
Flush
Dome
2.
Raised
Dome
Terminal
Style/Rating
1.
Solder/Std.
2.
Screw/Std.
3.
Solder/Low Level
4.
Screw/Low Level
Circuit
Form
1.
N.O.
2.
N.C.
3.
N.C. 3 Terminal
4.
N.O. 3 Terminal
5.
5 Terminal
6.
2 Circuit
Operating
Force/Action
1.
2.5 lbs./Momentary
2.
4.0 lbs./Momentary
Bezel
Color
1.
Clear
2.
Black
Button
Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Purple
8.
Gray
9.
White
* Add “W” suffix for watertight to IP68S and IP69K.
Flush
136
OTTO Full Line Catalog
Raised
Specifications Subject To Change Without Notice
