PB-1220PEQ: DescriptionAudio Indicators & Alerts XDUCR, 1.25-2.5VPP 12X10MM, SEALED; CategoryTopical application Mechanical and electrical/engineering/automation; File Size115KB，1 Pages; ManufacturerMallory; Websitehttps://www.msdperformance.com/brands/mallory/

Download Datasheet Parametric View All

PB-1220PEQ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PB-1220PEQ	-	-	View	Buy Now

PB-1220PEQ Overview

Audio Indicators & Alerts XDUCR, 1.25-2.5VPP 12X10MM, SEALED

PB-1220PEQ Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Mallory
Product Category	Audio Indicators & Alerts
RoHS	Details
Product	Transducers
Voltage Rating	1.5 VDC
Current Rating	32 mA
Dimensions	12 mm L x 12 mm W x 10 mm H
Height	10 mm
Length	12 mm
Type	Electromagnetic
Width	12 mm
Factory Pack Quantity	1
Unit Weight	0.070548 oz

Preview

Download Datasheet

View All

Mallory Sonalert Products Inc.

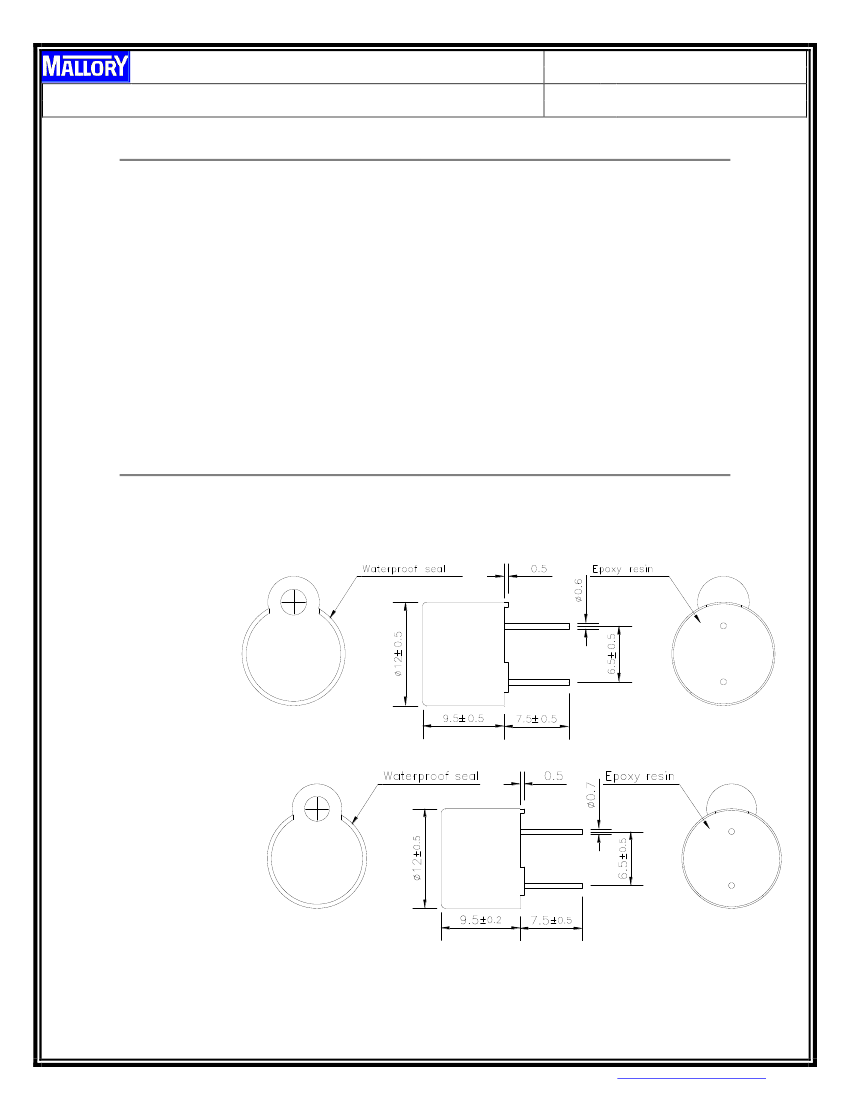

Sales Outline Drawing

Specifications:

NO CIRCUITRY

Oscillation Frequency (Hz)

Operating Voltage (Vp-p)

Rated Voltage (Vp-p)

Current Consumption Max. (mA)

Sound Pressure Level Min. (dB)

Coil Resistance (Ω)

Operating Temperature (°C)

Storage Temperature (°C)

Housing

Leading Pin

Weight (Grams)

Condition by wave soldering (°C)

Condition by hand soldering (°C)

Options

Part #

Revision

PB-1220PEQ

C

2048

1.25 ~ 2.5

1.5

32 at Rated Voltage

85 at 10cm at Rated Voltage

16 ± 5

-20 ~ +70

-30 ~ +80

PPO plastic resin (Color: Black)

Tin Plated Brass

2.0

260 ±5 / within 5 sec

350 ±20 / within 5 sec

For other options contact factory

Dimensions:

(units: mm)

PS: Vp-p = 1/2duty, square wave

RoHS Compliant

After Code Date 2017/06/13

Before Code Date 2017/06/12

Packaging:

Parts are supplied in tube (40 per tube).

4411 South High School Road, Indianapolis, Indiana 46241 USA ● Phone (317) 612-1000 ● Fax (317) 612-1010 ●

http://www.mallory-sonalert.com
