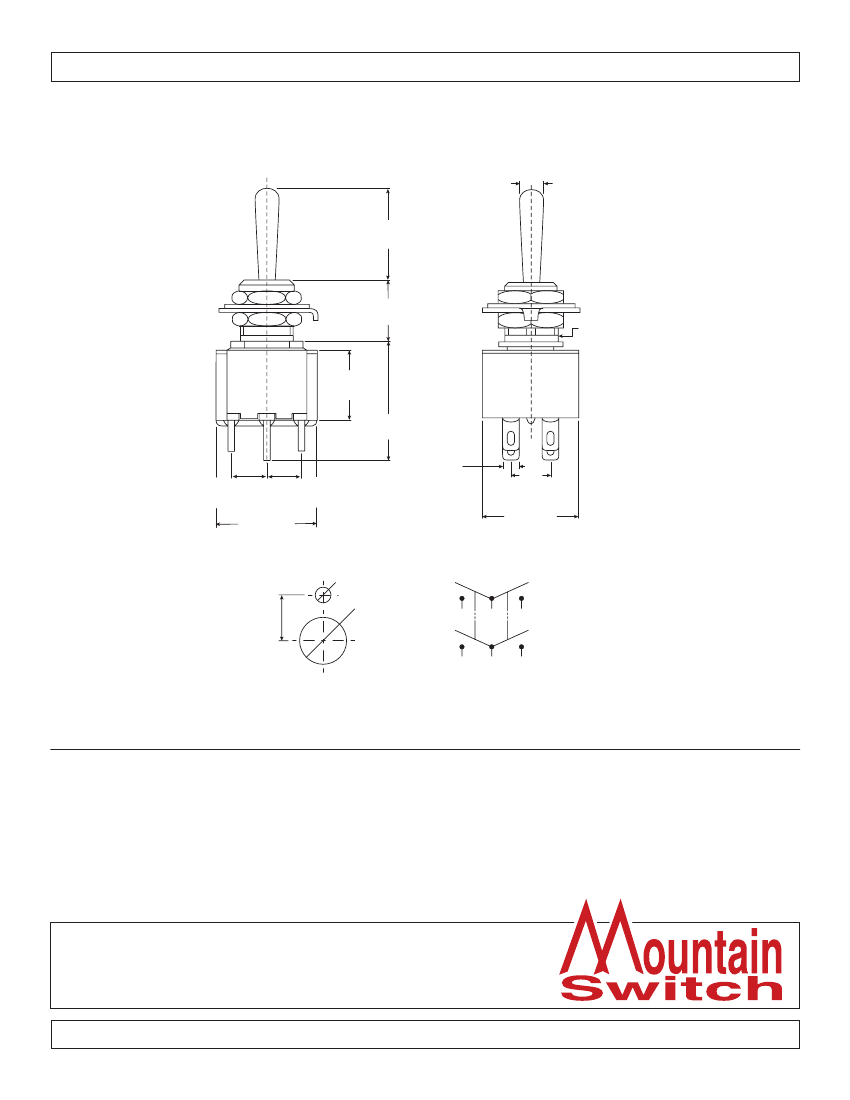

Dimensions: mm (in.)
Ref. #:
MS-101350
ø2.80 ± .20
(.11 ± .008)
10.50 ± 1
(.413 ± .039)
7.50 ± .50
(.295 ± .02)
M6 x0.75mm
9.20 ± .50
(.362 ± .02)
15.80 ± 1
(.622 ± .039)
2 ± .30
(.079 ± .012)
4.70 ± .50 4.70 ± .50
(.185 ± .02) (.185 ± .02)
13 ± 1
(.51 ± .039)
ø2.50
(ø.10)
6.30 ± .10
(.248 ± .004)
4.80 ± .50
(.189 ± .02)
12 ± 1
(.47 ± .039)
ø6.20 ± .20
(ø.244 ± .008)
A1
A2
A3
B1
Mounting Hole
B2
B3
Circuit Diagram
Electrical Specifications:
•
Rating: 6A/125VAC, 3A/250VAC
•
Contact Resistance: 50mΩ max.
•
Insulation Resistance: 100MΩ min. 500VDC
•
Dielectric Strength: 1000VAC 1min.
Mechanical Specifications:
•
Operating Temperature: -20°C to +65°C
•
Circuit: 6P DPDT On-Off-On
Note:
•
RoHS Compliant by Exemption
Miniature Toggle Switch
1055-TA1165B-EVX
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
