ASV-25.000MHZ-C-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASV-25.000MHZ-C-T

ASV-25.000MHZ-C-T: DescriptionStandard Clock Oscillators 25.000MHz 0C +70C 3.3V 50ppm; CategoryPassive components oscillator; File Size223KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASV-25.000MHZ-C-T Overview

Standard Clock Oscillators 25.000MHz 0C +70C 3.3V 50ppm

ASV-25.000MHZ-C-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	ASV
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	7.0mm x 5.08mm x 1.8mm
longest rise time	4 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

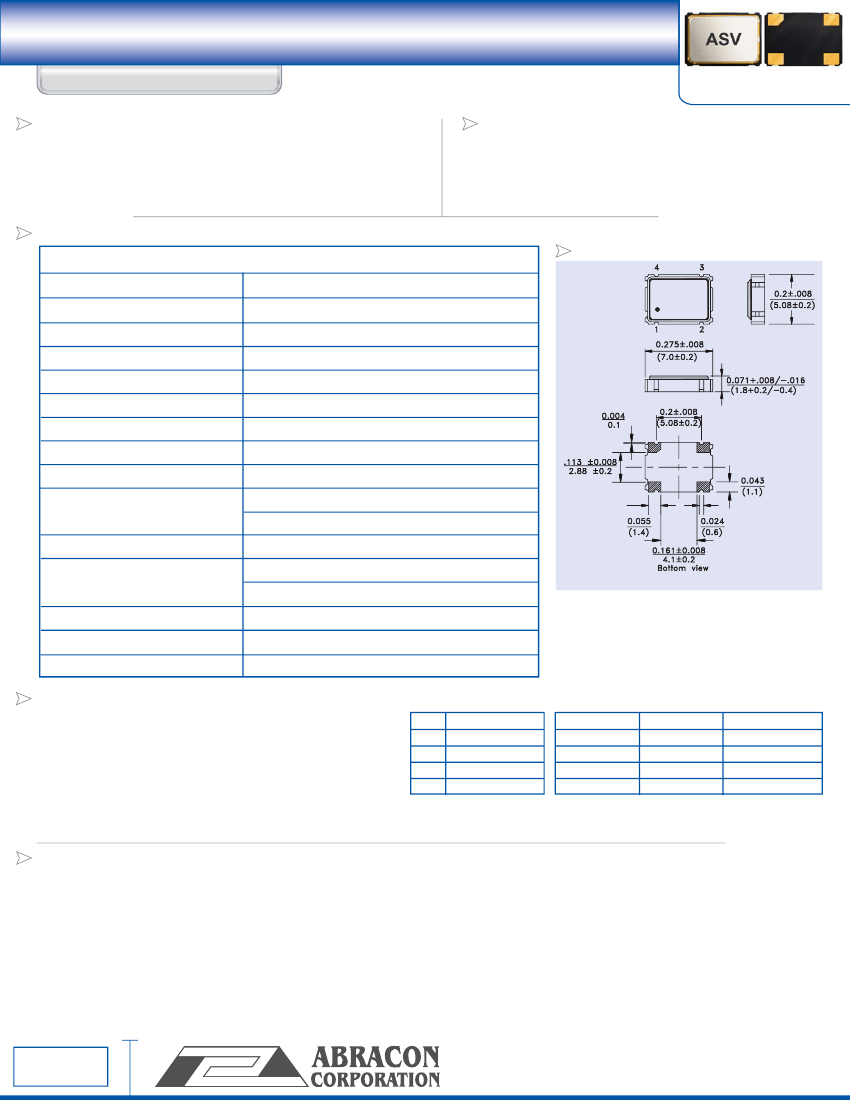

HCMOS/TTL COMPATIBLE VOLTAGE

CONTROL CRYSTAL OSCILLATOR

ASV/ASV1 SERIES

*RoHS COMPLIANT

7.0 x 5.08 x 1.8mm

| | | | | | | | | | | | | | |

FEATURES:

• Leadless chip carrier (LCC), Low profile.

• HCMOS/TTL Compatible, 3.3Vdc, 2.5Vdc, & 1.8Vdc operation.

• Seam welding, Reflow capable.

• Seam welding, 1.4 max. height (ASV1)

APPLICATIONS:

• Provide clock signals for microprocessors,

PC mainboards, Graphic cards.

• High output drive capability applications.

STANDARD SPECIFICATIONS:

PARAMETERS

Frequency Range:

Operating Temperature:

Storage Temperature:

Overall Frequency Stability:

Supply Voltage (Vdd):

Input Current:

Symmetry:

Rise And Fall Time (Tr/tf):

Output Load:

Output Voltage:

Start-up Time:

Tristate Function :

Aging At 25°c/year :

Period Jitter One Sigma :

Disable Current:

1.000 MHz to 150 MHz

-10° C to + 70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

3.3 Vdc ± 10% (see options)

See Table 1

40/60 % max.@ 1/2Vdd (see options)

See Table 1

15 pF (5TTL)

VOH = 0.9 * Vdd min.

VOL = 0.4 Vdc max.

10ms max.

"1" (VIH >= 2.2 Vdc) or open: Oscillation

"0" (VIL < 0.8 Vdc) : Hi Z

± 5ppm max.

± 25ps max.

15µA max.

NOTE:

XX.X First 3 digits of freq.

ex: 66.6 or 100

R Freq. Stability option (*)

S Duty cycle option (*)

L Temperature option (*)

Z month A to L

Y year 6 for 2006

W traceability code (A to Z)

OUTLINE DRAWING:

Dimensions: inch (mm)

MARKING:

- XX.X RS (see note)

- ASV ZYW (see note)

Alternate Marking:

Marking scheme subject to

change without notice.

Contact factory for Alternate

Marking Specifications.

Table 1

FUNCTION

Tri-state

GND/Case

Output

Vdd

Freq. (MHz)

1.0 ~ 34.99

35.0 ~ 60.0

60.01~99.99

100 ~ 150

Idd max. (mA)

Tr/Tf max. (nSec)

10ns

5ns

2.5ns

OPTIONS AND PART IDENTIFICATION (Left blank if standard):

ASV - Voltage - Frequency - Temp. - Overall Frequency Stability - Duty cycle - Packaging

Freq Stability options:

for ± 10 ppm max.

for ± 20 ppm max.

for ± 25 ppm max.

for ± 30 ppm max.

for ± 35 ppm max.

for ± 50 ppm max.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

rev2.1-5/06

Temperature options:

for 0°C to +50°C

for -10°C to +60°C

for -20°C to +70°C

for -30°C to +70°C

for -30°C to +85°C

for -40°C to +85°C

Voltage options:

for 2.5V

for 1.8V

Symmetry option:

for 45/55% at 1/2Vdd

for 45/55% at 1.4Vdc

Packaging option:

for Tape and Reel (1,000pcs/reel)

for Tape and Reel (500pcs/reel)

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
