KA324A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> KA324A

KA324A: DescriptionQUAD OP-AMP, 5000 uV OFFSET-MAX, PDIP14; Categoryaccessories; File Size347KB，8 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Compare View All

KA324A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KA324A	-	-	View	Buy Now

KA324A Overview

QUAD OP-AMP, 5000 uV OFFSET-MAX, PDIP14

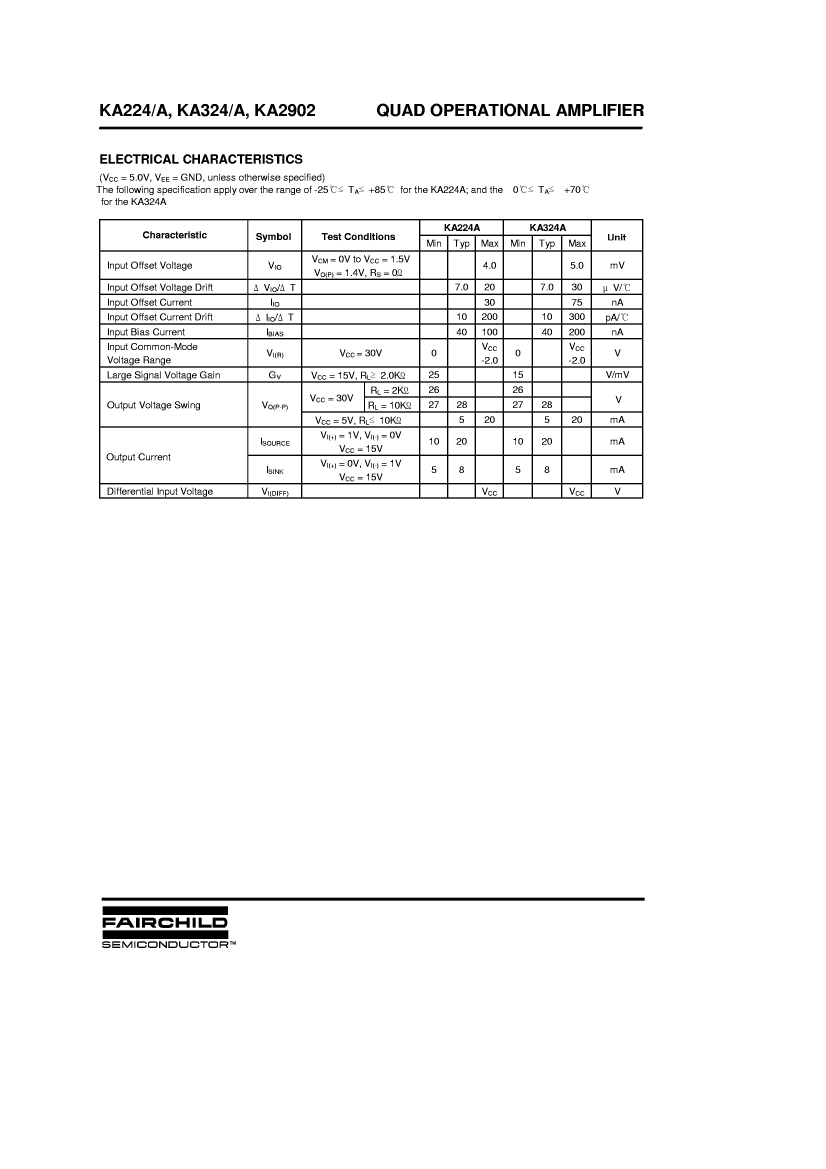

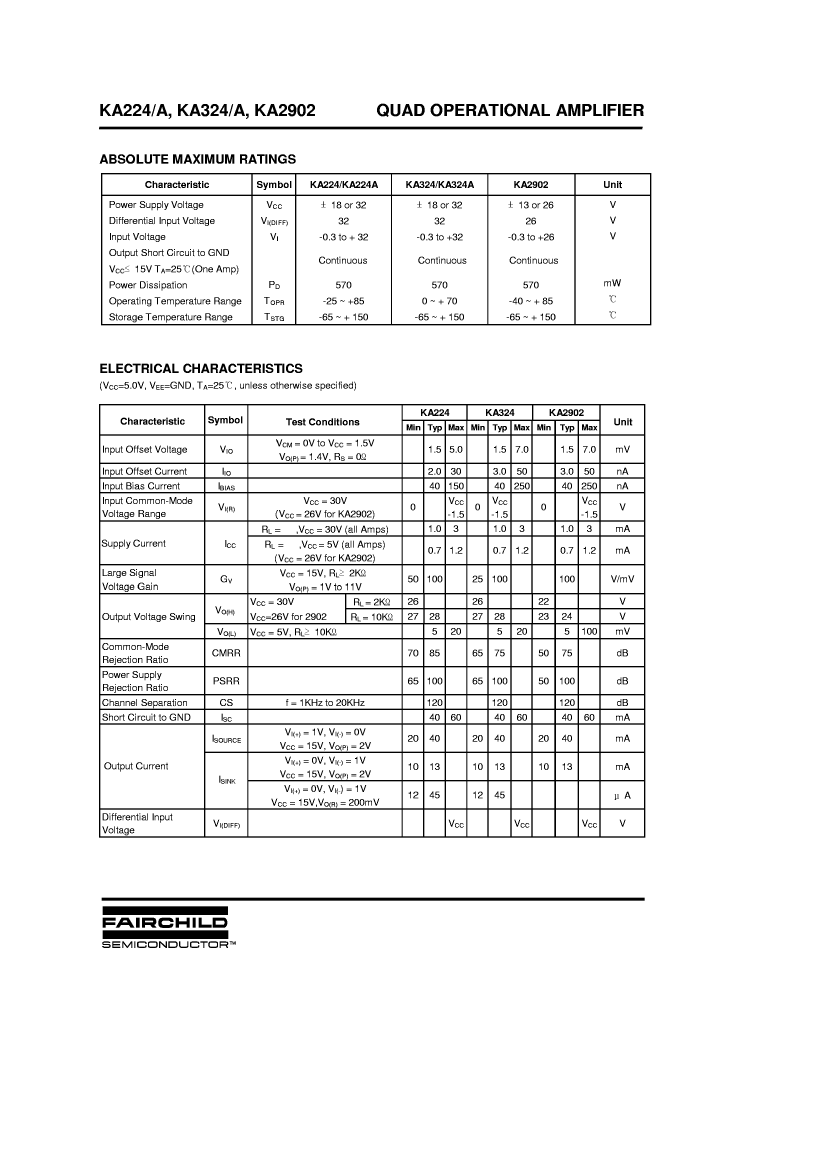

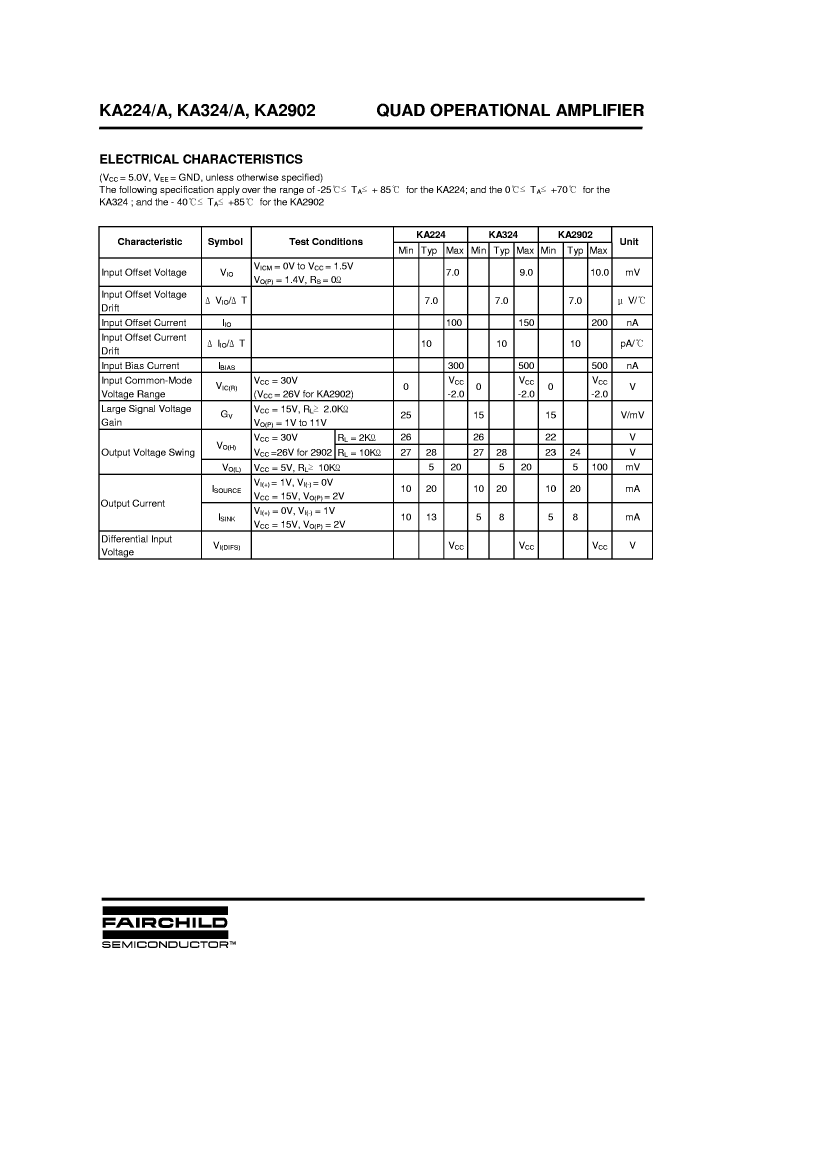

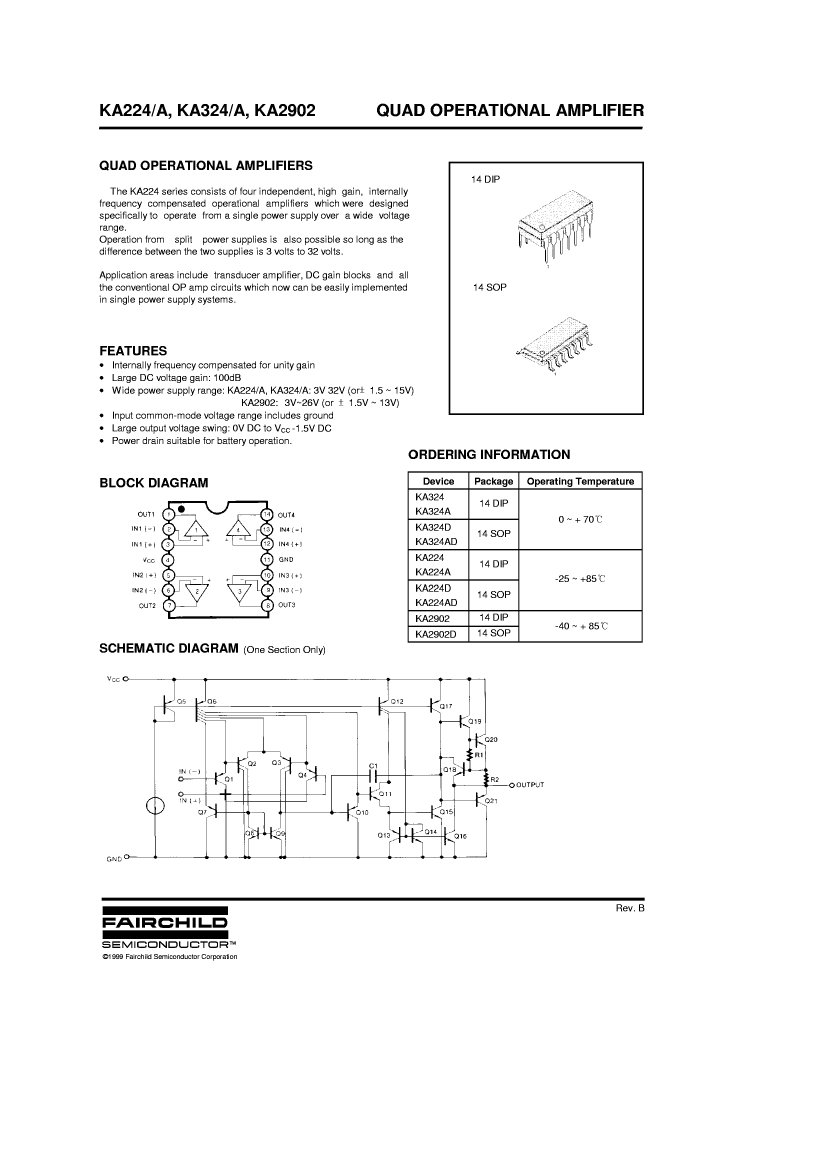

Preview

Download Datasheet

View All

KA324A Related Products

	KA324A	KA324	KA2902A	KA2902	KA224A	KA224
Description	QUAD OP-AMP, 5000 uV OFFSET-MAX, PDIP14	QUAD OP-AMP, 9000 uV OFFSET-MAX, PDIP14	QUAD OP-AMP, 9000 uV OFFSET-MAX, PDIP14	QUAD OP-AMP, 10000 uV OFFSET-MAX, PDIP14	QUAD OP-AMP, 4000 uV OFFSET-MAX, PDIP14	QUAD OP-AMP, 7000 uV OFFSET-MAX, PDIP14
Parts packaging code	-	DIP	-	DIP	DIP	DIP
package instruction	-	0.300 INCH, DIP-14	-	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	-	14	-	14	14	14
Reach Compliance Code	-	compliant	-	compli	compli	compli
ECCN code	-	EAR99	-	EAR99	EAR99	EAR99
Amplifier type	-	OPERATIONAL AMPLIFIER	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	-	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	-	0.5 µA	-	0.5 µA	0.1 µA	0.3 µA
Maximum bias current (IIB) at 25C	-	0.25 µA	-	0.25 µA	0.08 µA	0.15 µA
Nominal Common Mode Rejection Ratio	-	75 dB	-	75 dB	85 dB	85 dB
frequency compensation	-	YES	-	YES	YES	YES
Maximum input offset voltage	-	9000 µV	-	10000 µV	4000 µV	7000 µV
JESD-30 code	-	R-PDIP-T14	-	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
length	-	19.4 mm	-	19.4 mm	19.4 mm	19.4 mm
low-dissonance	-	NO	-	NO	NO	NO
micropower	-	YES	-	YES	YES	YES
Negative supply voltage upper limit	-	-18 V	-	-13 V	-18 V	-18 V
Number of functions	-	4	-	4	4	4
Number of terminals	-	14	-	14	14	14
Maximum operating temperature	-	70 °C	-	85 °C	85 °C	85 °C
Package body material	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	-	DIP	DIP	DIP
Encapsulate equivalent code	-	DIP14,.3	-	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
power supply	-	3/30/+-1.5/+-15 V	-	3/26/+-1.5/+-13 V	3/30/+-1.5/+-15 V	3/30/+-1.5/+-15 V
Certification status	-	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	5.08 mm	-	5.08 mm	5.08 mm	5.08 mm
Maximum slew rate	-	3 mA	-	3 mA	3 mA	3 mA
Supply voltage upper limit	-	18 V	-	13 V	18 V	18 V
Nominal supply voltage (Vsup)	-	5 V	-	5 V	5 V	5 V
surface mount	-	NO	-	NO	NO	NO
technology	-	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL	-	INDUSTRIAL	OTHER	OTHER
Terminal form	-	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	-	DUAL	-	DUAL	DUAL	DUAL
Minimum voltage gain	-	15000	-	15000	25000	25000
width	-	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm
