PV5H24018: DescriptionPushbutton Switches Sealed, Long Life Anti-vandal Switch 2A 36VDC OFF(ON) SPST GREEN ACTUATOR BLACK ANODIZED BODY IP65; CategoryMechanical and electronic products switch; File Size152KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

PV5H24018 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PV5H24018	-	-	View	Buy Now

PV5H24018 Overview

Pushbutton Switches Sealed, Long Life Anti-vandal Switch 2A 36VDC OFF(ON) SPST GREEN ACTUATOR BLACK ANODIZED BODY IP65

PV5H24018 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	GREEN
Actuator length	0.398 inch
Actuator type	PUSHBUTTON
Body color	BLACK
Casing diameter	0.472 inch
Casing type	M12P1
center contact material	BRASS
Center contact plating	SILVER
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@48VDC
Contact function	OFF-(ON)
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	48 V
Dielectric withstand voltage	2000VRMS V
Electrical life	200000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.149 inch
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

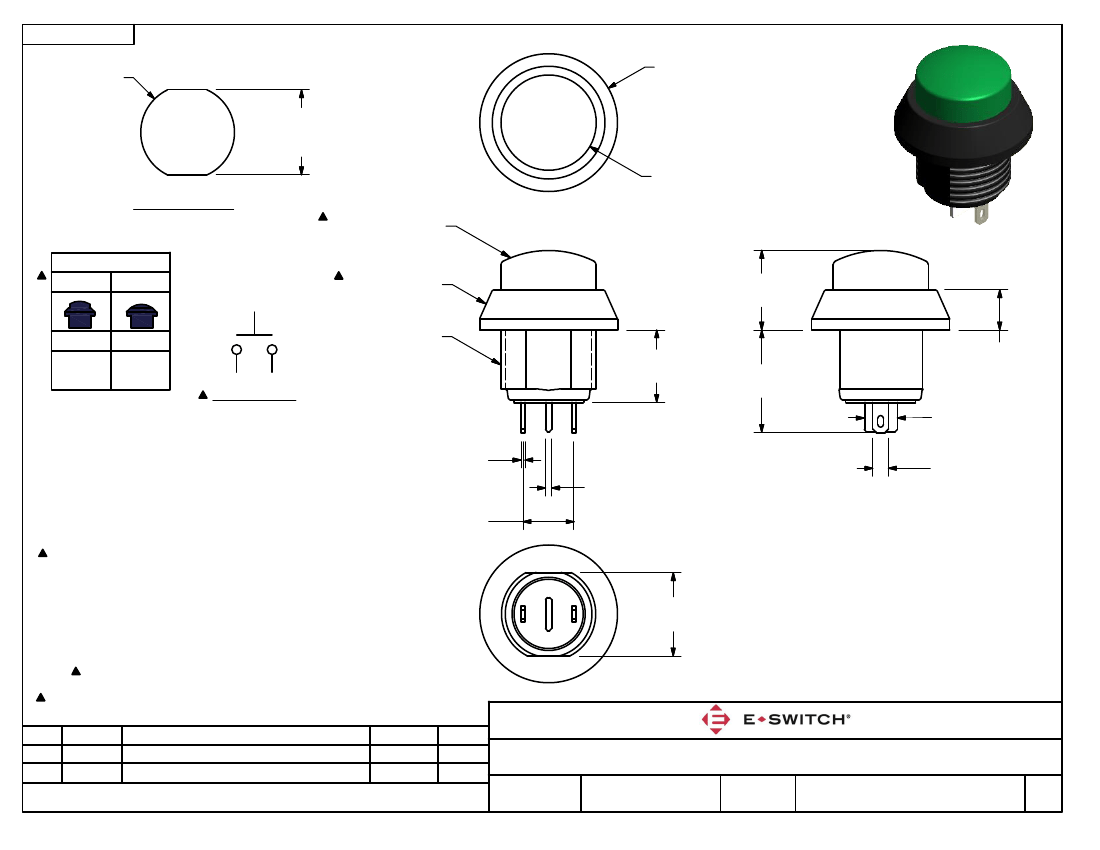

SHEET 1 OF 1

[

.472

12.00

+.20

- .00

+.008

- .000

in

]

[

.425

10.80

+.20

- .00

+.008

- .000

17.50

[.689 in]

in

]

12.10

[.476 in]

RAISED ACTUATOR

COLOR: GREEN

PANEL MOUNTING

MAX. PANEL THICKNESS 4mm

SWITCH FUNCTION

POS. 1

POS. 2

BODY COLOR:

BLACK ANODIZED

M12x1.0

THREAD

1

OPEN

1-2

CIRCUIT: SPST

1

.50

[.020 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X= 0.4

X.XX= 0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A @ 36 VDC

6. ELECTRICAL LIFE: 200,000 CYCLES

7. CONTACT RESISTANCE: 50 m MAX. @ 1A 12VDC (INITIAL)

8. INSULATION RESISTANCE: 1,000 M MIN. @ 500VDC.

9. DIELECTRIC STRENGTH: 2,000 VAC rms.

10. OPERATING TEMPERATURE: -20 C TO +70 C.

11. PANEL THICKNESS MAX: 4.0 mm.

12. INGRESS PROTECTION: IP65

13.

DENOTES CRITICAL PARAMETER.

14. 2011/65/EU (ROHS) COMPLIANT

15. HARDWARE INCLUDED, 1 O-RING & 1 HEX NUT.(NOT SHOWN)

B

A

REV

22667

20158

PCR NO

UPDATED FLAT ALIGNMENT

RELEASE FOR PRODUCTION

DESCRIPTION

1/9/17

9/19/11

DATE

.80

[.031 in]

6.50

[.256 in]

2

2.00

[.079 in]

2

9.2

1.0

[.36

.04

in]

13.0

1.0

[.51

.04

in]

10.1

1.0

[.40

.04

in]

OFF

(ON)

5.10

[.201 in]

(ON) = MOMENTARY

4.20

[.165 in]

10.60 FLAT

[.417 in]

MJR

BGL

BY

SCALE

DATE

DR

DWG

REV

TITLE

PV5H24018

2:1

9/19/2011

BGL

52-PV5H24018

B

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
