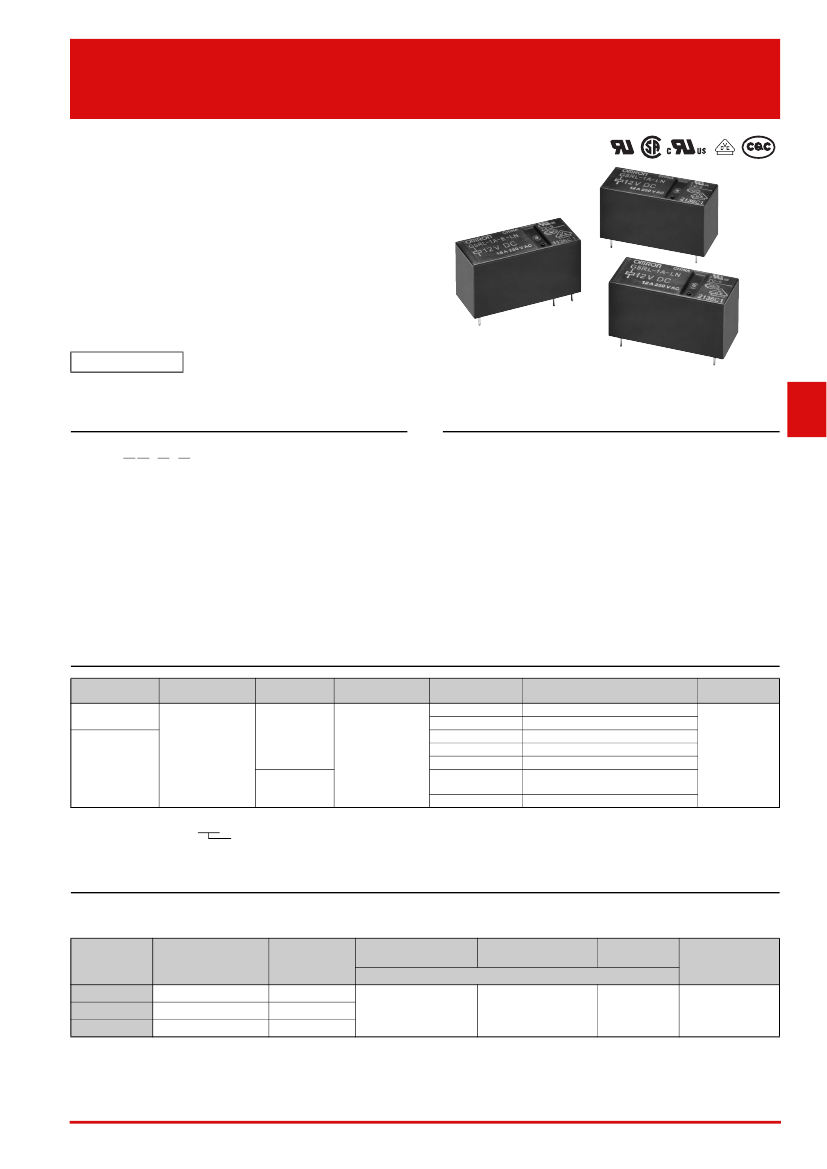

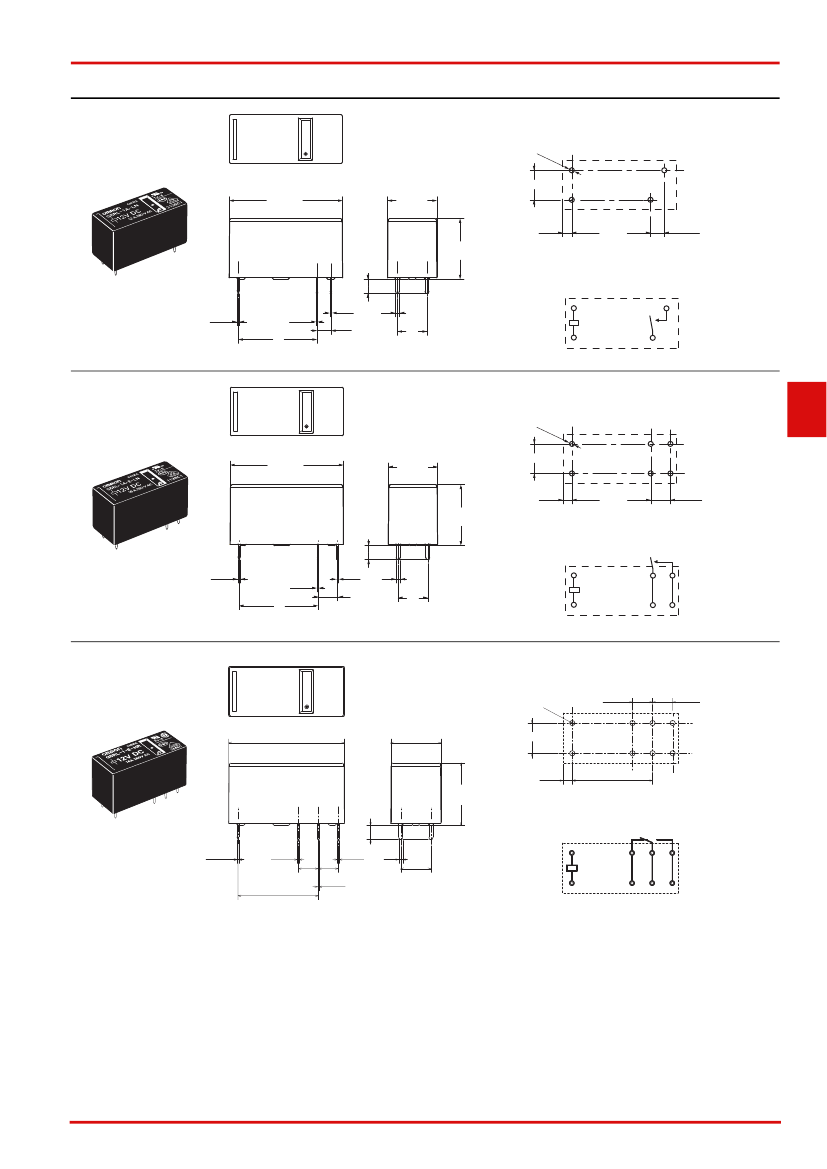

G5RL
PCB Power Relay
Low-profile Relay with Various
Models
• Low profile: 15.7 mm in height.
• Creepage distance 8mm between coil and contacts
• 10 kV Impulse withstand voltage
• Models with AC coil available.
• High-Inrush model available (Inrush peak currents up to 100 A)
• Low Noise models available (Approx. 10 to 20 dB less sound
pressure than standard G5RL-Series Relays)
• TV8 Rating models available (TV8 for UL standard)
RoHS Compliant
■Model
Number Legend
G5RL-
@ @-@
-
@
1 2
3
4
3. Classification
None: Standard
E : High-capacity
4. Additional Models
None: Standard
HR: High-inrush
LN: Low Noise
TV8: TV8 rating
1. Number of poles
1: 1-pole
■Application
Examples
•
•
•
•
•
Housing equipments
Audio-visual products
Office automation machines
Air-conditioners
Lighting
G
5
R
L
2. Contact Form
None: SPDT (1c)
A : SPST-NO (1a)
■Ordering
Information
Classification
Standard
SPST-NO (1a)
PCB terminals
High-capacity
SPDT (1c)
Flux protection
Terminal Shape
Contact form
Enclosure rating
Model
G5RL-1A-LN
G5RL-1A-TV8
G5RL-1A-E-HR
G5RL-1A-E-LN
G5RL-1A-E-TV8
G5RL-1-E
G5RL-1-E-HR
Rated coil voltage
5VDC, 12VDC, 24VDC
5VDC, 12VDC, 24VDC, 48VDC
5VDC, 12VDC, 24VDC, 48VDC
5VDC, 12VDC, 24VDC
5VDC, 12VDC, 24VDC, 48VDC
24VAC, 100VAC, 115VAC/120VAC,
200VAC, 230VAC/240VAC
5VDC, 12VDC, 24VDC, 48VDC
Minimum
packing unit
100 pcs/tray
Note. When ordering, add the rated coil voltage to the model number.
Example: G5RL-1A-LN DC5
Rated coil voltage
However, the notation of the coil voltage on the product case as well as on the packing will be marked as
@@
VDC.
■Ratings
●Coil
Low Noise Models: G5RL-1A(-E)-LN
Rated Voltage
(VDC)
5
12
24
Rated current
(mA)
106
44.2
22.1
Coil resistance
(Ω)
47.2
272
1,086
70% max.
10% min.
110%
Approx. 530
Must operate voltage
(V)
Must release voltage
(V)
% of rated voltage
Max voltage
(V)
Power
consumption
(mW)
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
2. Be sure to use a diode for surge absorption for the coil.
3. The operating characteristics are measured at a coil temperature of 23°C.
4. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
1
G5RL
High-Inrush Models: G5RL-1(A)-E-HR, G5RL-1A(-E)-TV8
Rated Voltage
(VDC)
5
12
24
48
Rated current
(mA)
80
33.3
16.7
8.96
Coil resistance
(Ω)
62.5
360
1,440
5,358
70% max.
10% min.
Must operate voltage
(V)
Must release voltage
(V)
% of rated voltage
PCB Power Relay
Max. voltage
(V)
Power
consumption
(mW)
130%
Approx. 400
Approx. 430
Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
2. The operating characteristics are measured at a coil temperature of 23°C.
3. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
Models with AC Coil: G5RL-1-E
Rated Voltage
(VAC)
24
100
115/120
200
230/240
Rated current
at 50Hz
(mA)
31.3
7.5
5.85/6.25
3.75
3.00/3.13
Rated current
at 60Hz
(mA)
28.3
6.88
5.35/5.70
3.45
2.76/2.88
Coil resistance
(Ω)
443
8,220
11,600
33,000
47,600
75% max.
15% min.
110%
Approx. 750
Must operate voltage Must release voltage
(V)
(V)
% of rated voltage
Max. voltage
(V)
Power consumption
(mW)
G
5
R
L
●Contacts
Low Noise Models: G5RL-1A(-E)-LN
Load
Contact form
Contact Type
Contact material
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Note 1. The rated current tolerance is +15%/-20%.
2. The operating characteristics are measured at a coil temperature of 23°C.
3. Coil resistances are provided as reference values.
4. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
Resistive load
Standard
SPST-NO (1a)
Single
Ag Alloy
12 A at 250 VAC
12 A at 24 VDC
12 A
250 VAC, 24 VDC
12 A
16 A
16 A at 250 VAC
16 A at 24 VDC
16 A
High-capacity
High-Inrush Models: G5RL-1(A)-E-HR, G5RL-1A(-E)-TV8
Load
Contact form
Contact Type
Contact material
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Resistive load
Standard
SPST-NO (1a)
High-capacity
SPST-NO (1a)
Single
Ag Alloy
16 A at 250 VAC
16 A at 24 VDC
16 A
250 VAC, 24 VDC
16 A
SPDT (1c)
12 A at 250 VAC
12 A at 24 VDC
12 A
12 A
16 A at 250 VAC, 24VDC (NO)
5 A at 250 VAC, 24 VDC (NC)
16 A (NO), 5 A (NC)
16 A (NO), 5 A (NC)
Models with AC Coil: G5RL-1-E
Load
Contact form
Contact Type
Contact material
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Resistive load
High-capacity
SPDT (1c)
Single
Ag Alloy
16 A at 250 VAC, 24 VDC (NO)
5 A at 250 VAC, 24 VDC (NC)
16 A (NO), 5 A (NC)
250 VAC, 24 VDC
16 A (NO), 5 A (NC)
2
G5RL
■Characteristics
●Low
Noise Models: G5RL-1A(-E)-LN
Item
Contact resistance
Operate time
Release time
Insulation resistance
Classification
Standard
PCB Power Relay
High-capacity
100 mΩ max.
15 ms max.
15 ms max.
1,000 MΩ min.
Between coil and contacts
6,000 VAC, 50/60 Hz for 1 min
Dielectric strength
Between contacts of the same polarity 1,000 VAC, 50/60 Hz for 1 min
Impulse withstand voltage
Between coil and contacts
10 kV (1.2
×
50
μs)
Insulation distance
Between coil and contacts
Clearance: 8 mm, Creepage: 8 mm
Destruction
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Vibration resistance
Malfunction
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Destruction
1,000 m/s
2
Shock resistance
Malfunction
100 m/s
2
Mechanical
1,000,000 operation min. (at 18,000 operations/hr)
Durability
Electrical
100,000 operations min. (at 1,800 operations/hr) 50,000 operations min. (at 1,800 operations/hr)
Failure rate (P level) (reference )
100 mA at 5 VDC
Ambient operating temperature
-40°C to 85°C (with no icing or condensation)
Ambient operating humidity
5% to 85%
Weight
Approx. 10 g
Note 1. Values in the above table are initial values.
2. The contact resistance is measured with 1 A applied at 5 VDC using a fall-of-potential method.
3. The insulation resistance is measured between coil and contacts and between contacts of the same polarity at 500 VDC.
4. The release time is value with a diode attached.
5. Failure rate (P level) was measured at a switching frequency of 120 operations/min.
●High-Inrush
Models: G5RL-1(A)-E-HR, G5RL-1A(-E)-TV8
100 mΩ max.
15 ms max.
5 ms max.
1,000 MΩ min. (at 500 VDC)
Between coil and contacts
6,000 VAC, 50/60 Hz for 1 min
Dielectric strength
Between contacts of the same polarity 1,000 VAC, 50/60 Hz for 1 min
Impulse withstand voltage
Between coil and contacts
10 kV (1.2
×
50
μs)
Insulation distance
Between coil and contacts
Clearance: 8 mm, Creepage: 8 mm
Destruction
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Vibration resistance
Malfunction
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Destruction
1,000 m/s
2
Shock resistance
Malfunction
100 m/s
2
Mechanical
10,000,000 operation min. (at 18,000 operations/hr)
Durability
Electrical
100,000 operations min. (at 1,800 operations/hr) 50,000 operations min. (at 1,800 operations/hr)
Failure rate (P level) (reference )
100 mA at 5 VDC
Ambient operating temperature
-40°C to 85°C (with no icing or condensation)
Ambient operating humidity
5% to 85%
Weight
Approx. 10 g
Note 1. Values in the above table are initial values.
2. The contact resistance is measured with 1 A applied at 5 VDC using voltage drop method.
3. The insulation resistance is measured between coil and contacts and between contacts of the same polarity at 500 VDC.
4. The resistive load ratings for NO contact apply when there is no load on NC contact.
5. Failure rate (P level) was measured at a switching frequency of 120 operations/min.
Item
Contact resistance
Operate time
Release time
Insulation resistance
Classification
Standard
High-capacity
G
5
R
L
●Models
with AC Coil: G5RL-1-E
100 mΩ max.
20 ms max.
20 ms max.
1,000 MΩ min. (at 500 VDC)
Between coil and contacts
6,000 VAC, 50/60 Hz for 1 min
Dielectric strength
Between contacts of the same polarity 1,000 VAC, 50/60 Hz for 1 min
Impulse withstand voltage
Between coil and contacts
10 kV (1.2
×
50
μs)
Insulation distance
Between coil and contacts
Clearance: 8 mm, Creepage: 8 mm
Destruction
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Vibration resistance
Malfunction
10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Destruction
1,000 m/s
2
Shock resistance
Malfunction
100 m/s
2
Mechanical
10,000,000 operation min. (at 18,000 operations/hr)
Durability
Electrical
50,000 operations min. (at 720 operations/hr)
Failure rate (P level) (reference )
40 mA at 24 VDC
Ambient operating temperature
-40°C to 70°C (with no icing or condensation)
Ambient operating humidity
5% to 85%
Weight
Approx. 10 g
Note 1. Values in the above table are initial values.
2. The contact resistance is measured with 1 A applied at 5 VDC using voltage drop method.
3. The insulation resistance is measured between coil and contacts and between contacts of the same polarity at 500 VDC.
4. The resistive load ratings for NO contact apply when there is no load on NC contact.
5. Failure rate (P level) was measured at a switching frequency of 120 operations/min.
Item
Contact resistance
Operate time
Release time
Insulation resistance
Classification
High-capacity
3
