NOTES:
1. DRAWING TO BE INTERPRETED IN ACCORDANCE
WITH THE CURRENT REVISION OF ASME Y14.5.
2. THIS PART/PRODUCT IS TO BE MANUFACTURED WITH THE LATEST APPLICABLE
REGULATIONS OF EC DIRECTIVES FOR THE RESTRICTION OF THE USE OF
HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT (ROHS),
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) AND REGISTRATION,
EVALUATION, AUTHORIZATION AND RESTRICTION OF CHEMICALS (REACH).
3. OUTPUTS ARE FROM THE CENTER TO THE FULL
TRAVEL POSITION IN EACH DIRECTION.
OPTIONS "AA", "BB", "CC", "DD", "EE", "FF" PROVIDE INCREASED
VOLTAGE IN +X, +Y; AND DECREASING VOLTAGE IN -X, -Y
DIRECTION FROM ONE OUTPUT PER AXIS.
OPTIONS "GG" AND "HH" PROVIDE INCREASING VOLTAGES.
IN ALL DIRECTIONS (+X, +Y, -X, -Y) FROM 2 OUTPUTS PER AXIS.
4. OPTIONS "BB" AND "EE" PROVIDE REDUNDANT OUTPUT 2
WHICH DUPLICATES OUTPUT 1.
OPTIONS "CC" AND "FF" PROVIDE REDUNDANT OUTPUT 2
WHICH IS INVERSE OF OUTPUT 1.
5. SEE PAGE 4 FOR ALTERNATE BUTTON DESIGN. ONLY
BUTTON STYLE "2", "5", AND "6" ARE OFFERED WITH
A WATERTIGHT PANEL SEAL.
6. MARKING TO INCLUDE:
"OTTO" P/N & DATE CODE "YYWW".
HTL4-
BUTTON STYLE
HTL4-__________
REV
OCN #
DATE
APR
5
CASE STYLE
5
SEAL
TRAVEL
1 = 25 DEGREES
GATING
OPERATE FORCE
OUTPUT 1
3
AA = 2.5+/-2.0 VDC
BB = 2.5+/-2.0 VDC
CC = 2.5+/-2.0 VDC
DD = 2.5+/-1.5 VDC
EE = 2.5+/-1.5 VDC
FF = 2.5+/-1.5 VDC
GG = 0.5-4.5 VDC
HH = 1-4 VDC
OUTPUT 2
4
TERMINATION
1 = WIRE LEADS, 22 AWG, UL1569
2 = PINS
3 = WIRE LEADS, 24 AWG, SAE AS22759
4 = WIRE LEADS, 22 AWG, UL1569,
SHARED POWERS AND GROUNDS.
(SEE SCHEMATIC).
5 = WIRE LEADS, 24 AWG, SAE AS22759,
SHARED POWERS AND GROUNDS.
(SEE SCHEMATIC).
BUTTON COLOR
2 = BLACK
1 = CASTLE
1 = .970 SQ.
2 = EXTERNAL CASTLE BOOT
3 = SHORT DOUBLE STADIUM
4 = TALL CONCAVE STADIUM
5 = EXTERNAL BAT HANDLE BOOT
6 = EXTERNAL SMOOTH BOOT
7 = LONG CONCAVE Y AXIS BUTTON
1 = DUSTTIGHT
2 = WATERTIGHT
1 = 16 OZ
1 = OMNI DIRECTIONAL;
SQUARE; ON AXIS
GUIDED FEEL
2 = GATED; TWO AXIS -
RETURN TO CENTER
3 = OMNI DIRECTIONAL;
ROUND; SMOOTH FEEL
NONE
2.5+/-2.0 VDC
2.5-/+2.0 VDC
NONE
2.5+/-1.5 VDC
2.5-/+1.5 VDC
0.5-4.5 VDC
1-4 VDC
SEE DETAIL A
PRODUCT SPECIFICATIONS
ELECTRICAL:
RATED AT
Vcc = 5V @ 20 C
LOAD = 1ma (4.7K
)
UNITS
VDC
VDC
@5V Vcc
VDC
@5V Vcc
mA
mA
MIN
4.50
-.25
-.25
NA
-1.00
TYP
5.00
NA
NA
NA
NA
MAX
5.50
.25 TYP.
+.25
+.25
10.00
1.00
1.244
1,000,000 CYCLES
DEGREES
OZ
LBS
LBS
IN-LBS
23
NA
NA
NA
NA
25
16
NA
NA
NA
27
20
25
25
5.5
W
.150 .016
.280 .016
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
034205
034752
035067
036344
036978
041177
041250
041618
045291
045737
046891
049665
055105
056569
061838
063013
063582
070736
071505
10 OCT 06
16 NOV 06
06 DEC 06
06 MAR 07
20 APR 07
25 JAN 08
30 JAN 08
19 FEB 08
23 SEP 08
16 OCT 08
19 JAN 09
22 JUN 09
16 APR 10
20 JUL 10
20 JUN 11
19 SEP 11
28 OCT 11
31 MAY 13
08 AUG 13
LBG
LBG
LBG
LBG
LBG
LBG
LBG
LBG
LBG
LBG
LBG
LBG
LBG
LBG
MRM
MRM
KLW
DCF
DCF
SUPPLY VOLTAGE, Vcc
OUTPUT VOLTAGE TOLERANCE
AT CENTER (SEE APPROPRIATE
GRAPH FOR OUTPUT VALUES)
OUTPUT VOLTAGE TOLERANCE
FULL TRAVEL (SEE APPROPRIATE
GRAPH FOR OUTPUT VALUES)
SUPPLY CURRENT PER SENSOR
B=0, Vcc=5V, Iout=0
OUTPUT
SOURCE CURRENT LIMIT
B=-X*, Vo=0
PINS NOT PRESENT
IN ALL CONFIGURATIONS
SCALE 1:1
MECHANICAL:
MECHANICAL LIFE
ALL DIRECTIONS
TRAVEL ANGLE
OPERATING FORCE (W/BOOT)
AT TOP OF BUTTON, @ 20 C
MAX. ALLOWABLE VERTICAL
FORCE ON BUTTON
MAX. ALLOWABLE RADIAL
FORCE ON BUTTON
MAX. ALLOWABLE TORQUE
ON BUTTON ABOUT SHAFT AXIS
+Y
(.160)
.444
(.995)
PIN INDICATES
+Y DIRECTION
-X
+X
18.5 .5
6
(.269)
2X ( .075)
ENVIRONMENTAL:
OPERATING TEMPERATURE
ELECTRONICS SEAL INTEGRITY
EMI/RFI WITHSTAND
C
-40
20
WATERTIGHT PER IP68S, 1 METER
PER SAE J1113
CONTACT FACTORY FOR DETAILS
85
-Y
OPERATING FORCE
REFERENCE POINT
(.649)
MATERIAL:
BOOT
BUTTON
CASE
FLANGE
HARDWARE
ELASTOMER, BLACK
THERMOPLASTIC, BLACK
THERMOPLASTIC, BLACK
THERMOPLASTIC, BLACK
4X ITW FASTEX PANEL FASTENER
P/N 36030002, OR EQUIVALENT
GND 2X
VCC 2X
GND 2Y
OUTPUT 2X
OUTPUT 2Y
VCC 2Y
4X
.118
.025 .001
TYP.
.10
.05
.30
.200
(2X 1.25)
4X
FASTENER
.970 SQ.
1.010
OUTPUT 1Y
OUTPUT 1X
GND 1X
.10
.20
VCC 1Y
VCC 1X
GND 1Y
UNLESS OTHERWISE
SPECIFIED:
DIMENSIONS ARE
IN INCHES.
SHIPPED UNASSEMBLED
SUGGESTED PANEL
OPENING
DESCRIPTION
SCALE 4:1
ALL PINS NOT PRESENT IN ALL CONFIGURATIONS
DETAIL A
HTL4, LINEAR HALL EFFECT
R
KEY
CHARACTERISTICS
SR SPECIAL
REQUIREMENT
TOLERANCES:
.03
.XX
.010
.XXX
2
ANGLES
DO NOT SCALE
CARPENTERSVILLE, ILLINOIS USA
4-WAY TOGGLE
DRWN.
JLW
CHKD.
SIZE
THIS DOCUMENT IS THE CONFIDENTIAL
PROPERTY OF OTTO ENGINEERING, INC..
IT IS NOT TO BE USED IN ANY WAY
DETRIMENTAL TO THE INTERESTS
OF OTTO ENGINEERING, INC..
MRM
APPD.
AH
C
FSCM NO
DRAWING NO.
REV.
21649
THIRD ANGLE
PROJECTION
HTL4-__________
Scale 1:1
W
Sheet 1 OF 5
OPTION AA
4.50
OPTION BB
4.50
OPTION CC
4.50
3.50
3.50
3.50
VOLTS
2.50
VOLTS
2.50
2.50 VOLTS
1.50
1.50
1.50
0.50
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
0.50
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
0.50
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
OPTION DD
4.50
OPTION EE
4.50
OPTION FF
4.50
3.50
3.50
3.50
2.50
VOLTS
2.50 VOLTS
2.50
VOLTS
1.50
1.50
1.50
0.50
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
0.50
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
0.50
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
OPTION GG
4.50
OPTION HH
4.50
3.50
3.50
2.50
VOLTS
2.50
VOLTS
1.50
1.50
0.50
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
-25
-20
-15
-10
-5
0
DEGREES
5
10
15
20
25
0.50
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
-X,-Y TRAVEL
+X,+Y TRAVEL
OUTPUT1
OUTPUT2
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE AS LISTED.
MUST BE FREE FROM BURRS
AND SHARP EDGES
TOLERANCES
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
NOMINAL OUTPUT VOLTAGE ALL DIRECTIONS
.03
.XX
.010
.XXX
2
ANGLES
DO NOT SCALE DRAWING
THIS DOCUMENT IS THE CONFIDENTIAL
PROPERTY OF OTTO ENGINEERING, INC..
IT IS NOT TO BE USED IN ANY WAY
DETRIMENTAL TO THE INTERESTS
OF OTTO ENGINEERING, INC..
DRWN.
JLW
CHKD.
MRM
APPD.
WT.
SIZE
AH
C
FSCM NO
DRAWING NO.
REV.
THIRD ANGLE
PROJECTION
21649
HTL4-__________
Scale 1:1
W
Sheet 2 OF 5
BLUE
OUTPUT
BLUE
OUTPUT
GREEN
GND
VIOLET
VCC
CASE
PCB
4700pF
4700pF
OUTPUT1 X
CASE
PCB
4700pF
OUTPUT1 X
BLACK
GND
YELLOW
OUTPUT
RED
VCC
4700pF
4700pF
OUTPUT2 Y
4700pF
4700pF
RED (2)
VCC
YELLOW (2)
OUTPUT
BLACK (2)
GND
YELLOW
OUTPUT
RED
VCC
BLACK
GND
4700pF
4700pF
4700pF
OUTPUT2 Y
4700pF
4700pF
RED (2)
VCC
YELLOW (2)
OUTPUT
BLACK (2)
GND
OUTPUT1 Y
4700pF
4700 pF
OUTPUT1 Y
4700pF
4700 pF
OUTPUT2 X
OUTPUT2 X
GREEN (2)
GND
VIOLET (2)
VCC
BLUE (2)
OUTPUT
BLUE (2)
OUTPUT
TERMINATION STYLE 1, 2, AND 3
TERMINATION STYLE 4 AND 5
ALL WIRES NOT PRESENT
IN ALL CONFIGURATIONS
OUTPUT2 NOT PRESENT
IN ALL CONFIGURATIONS
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE AS LISTED.
MUST BE FREE FROM BURRS
AND SHARP EDGES
TOLERANCES
.03
.XX
.010
.XXX
2
ANGLES
DO NOT SCALE DRAWING
THIS DOCUMENT IS THE CONFIDENTIAL
PROPERTY OF OTTO ENGINEERING, INC..
IT IS NOT TO BE USED IN ANY WAY
DETRIMENTAL TO THE INTERESTS
OF OTTO ENGINEERING, INC..
DRWN.
JLW
CHKD.
DCF
APPD.
SIZE
AH
C
FSCM NO
DRAWING NO.
REV.
THIRD ANGLE
PROJECTION
21649
HTL4-__________
Scale 1:1
W
Sheet 3 OF 5

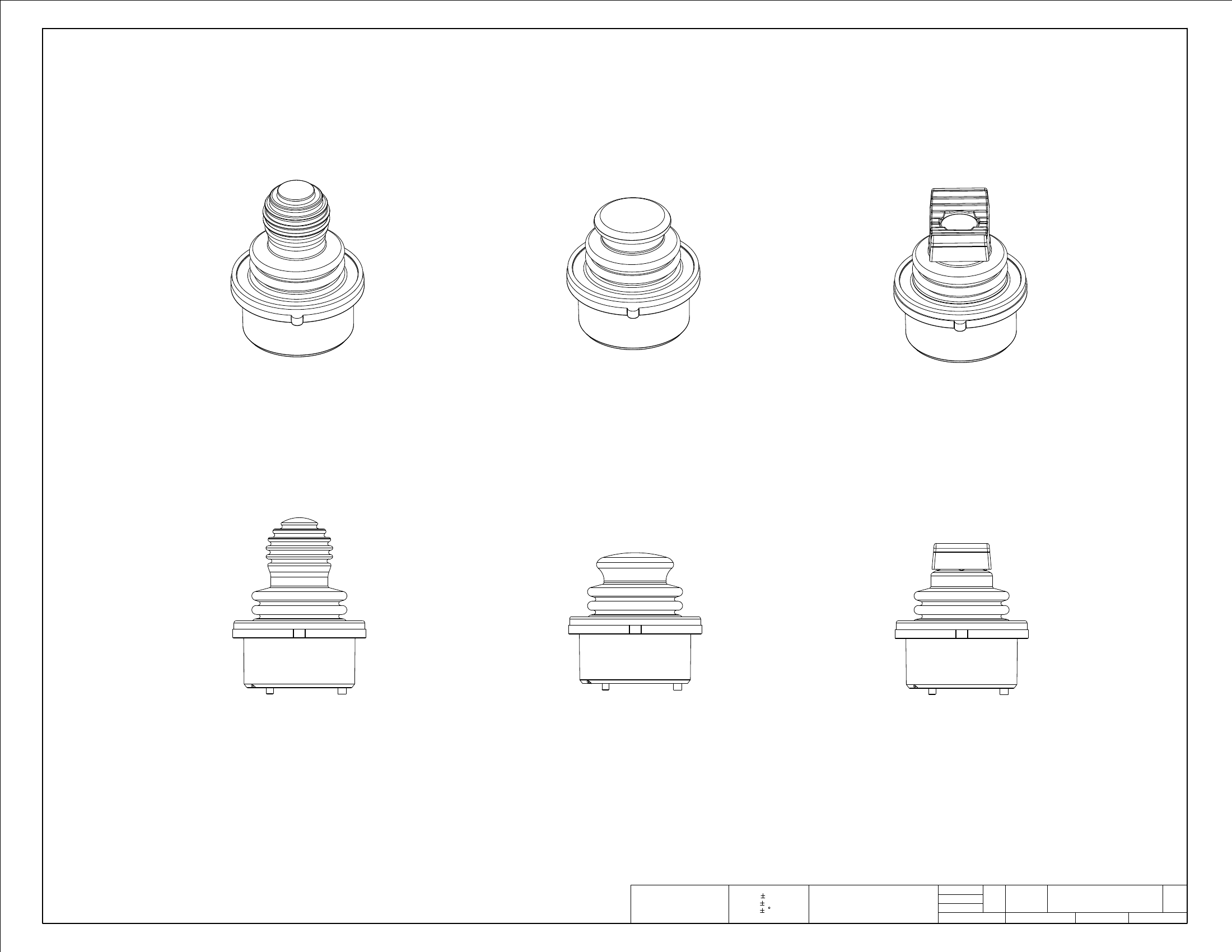

BUTTON STYLE 5
(EXTERNAL BAT
HANDLE BOOT)
BUTTON STYLE 6
(EXTERNAL SMOOTH BOOT)
BUTTON STYLE 7
(LONG CONCAVE Y AXIS BUTTON)
BUTTON STYLE CONFIGURATION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE AS LISTED.
MUST BE FREE FROM BURRS
AND SHARP EDGES
TOLERANCES
.03
.XX
.010
.XXX
2
ANGLES
DO NOT SCALE DRAWING
THIS DOCUMENT IS THE CONFIDENTIAL
PROPERTY OF OTTO ENGINEERING, INC..
IT IS NOT TO BE USED IN ANY WAY
DETRIMENTAL TO THE INTERESTS
OF OTTO ENGINEERING, INC..
DRWN.
JLW
CHKD.
DCF
APPD.
WT.
SIZE
AH
C
FSCM NO
DRAWING NO.
REV.
THIRD ANGLE
PROJECTION
21649
HTL4-__________
Scale 1:1
W
Sheet 5 OF 5
