Relays with Forcibly Guided Contacts
G7SA
Compact, Slim Relays Conforming to
EN Standards
• Additional Push-In Plus terminal sockets are used to save
wiring work in comparison with traditional screw terminals.
(Wiring time is reduced by 60%* in comparison with
traditional screw terminals.)
• Relays with forcibly guided contacts
(EN 50205 Class A, certified by VDE).
• Supports the CE marking of machinery (Machinery
Directive).
• Helps avoid hazardous machine status when used as part of
an interlocking circuit.
• Four-pole and six-pole Relays are available.
• The Relay’s terminal arrangement simplifies PWB pattern
design.
• Reinforced insulation between inputs and outputs.
Reinforced insulation between some poles of different polarity.
*
According to OMRON actual measurement data
Note:
Sockets are sold separately.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
Be sure to read the
Safety Precautions
on page 9.
Model Number Structure
Model Number Legend
G7SA-@A@B@
⎯
1
⎯
2
⎯
3
1. NO Contact Poles
2: DPST-NO
3: 3PST-NO
4: 4PST-NO
5: 5PST-NO
3. Coil Rated Voltage (V)
12 VDC
18 VDC
21 VDC
24 VDC
48 VDC
110 VDC
Specify the power supply voltage (coil rated voltage) when ordering.
Relays with forcibly guided contacts
Sockets
P7SA-@@-@-@@
⎯⎯⎯⎯ ⎯ ⎯ ⎯ ⎯ ⎯
1
2 3 4 5 6
1. Basic Model Name
P7SA: Socket for G7SA
2. Number of Poles
10: 4 poles (10 terminals)
14: 6 poles (14 terminals)
3. Mounting Type
F: Front-mounting
P: Back-mounting
4. LED Indicator
Blank: Without operation indicator LED/built-in diode
ND: With operation indicator LED/built-in diode
5. Terminal Type
Blank: Screw terminals when 3. is F type
PCB terminals when 3. is P type
PU: Push-In Plus terminals
6. Coil Rated Voltage (V)
24 VDC: When 4. is ND
2. NC Contact Poles
1: SPST-NC
2: DPST-NC
3: 3PST-NC
1
G7SA
Ordering Information
Specify the coil rated voltage when ordering.
Relays with Forcibly Guided Contacts
Type
Sealing
Poles
4 poles
Standard
Flux-tight
6 poles
Contact configuration
3PST-NO, SPST-NC
DPST-NO, DPST-NC
5PST-NO, SPST-NC
4PST-NO, DPST-NC
3PST-NO, 3PST-NC
Coil rated voltage
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
12, 18, 21, 24, 48, 110 VDC
Model
G7SA-3A1B
G7SA-2A2B
G7SA-5A1B
G7SA-4A2B
G7SA-3A3B
Sockets
Mounting
Terminal Type
Push-In Plus terminals
Front-mounting
Screw terminals
No
Back-mounting
PCB terminals
No
LED
Indicator
Yes
Yes
Poles
4 poles
6 poles
4 poles
6 poles
4 poles
6 poles
4 poles
6 poles
24 VDC
Coil rated voltage
Model
P7SA-10F-ND-PU
P7SA-14F-ND-PU
P7SA-10F-ND
P7SA-14F-ND
P7SA-10F
P7SA-14F
P7SA-10P
P7SA-14P
Accessories (Order Separately)
Short Bars (For P7SA-@F-ND-PU)
Pitch
No. of poles
2
5.2 mm
3
4
5
Red (RD)
Blue (BL)
Yellow (YL)
Colors
Model*1*2
XW5S-P2.5-2@
XW5S-P2.5-3@
XW5S-P2.5-4@
XW5S-P2.5-5@
Note:
Use for crossover wiring of adjacent contact terminals (bottom) within one Socket.
*1.
Replace the box (@) in the model number with the code for the covering color. Color Options: RD = red, BL = blue, YL = yellow
Example: XW5S-P2.5-10RD when the covering color is red.
*2.
XW5S-P2.5-5@ cannot be used with P7SA-10F-ND-PU.
Parts for DIN Track Mounting
Type
DIN Tracks
End Plate
*
Spacer
1m
0.5 m
Model
PFP-100N
PFP-50N
PFP-M
PFP-S
Minimum Order
(quantity)
1
10
Refer to your OMRON website for details on the PFP-@.
*
When mounting DIN track, please use End Plate (Model PFP-M).
2
G7SA
Specifications
Ratings
Coil (4 poles)
Item
Rated voltage
12 VDC
18 VDC
21 VDC
24 VDC
48 VDC
110 VDC
Rated
current
(mA)
30
20
17.1
15
7.5
3.8
Coil
resistance
(Ω)
400
900
1,225
1,600
6,400
28,810
Max.
voltage
(V)
Power
consumption
(mW)
Contacts
Item
Load
Rated load
Rated carry current
Max. switching voltage
Max. switching current
Contact materials
Resistive load
6 A at 250 VAC, 6 A at 30 VDC
6A
250 VAC, 125 VDC
6A
Au plating + Ag alloy
110%
Approx. 360
Approx. 420
Coil (6 poles)
Item
Rated voltage
12 VDC
18 VDC
21 VDC
24 VDC
48 VDC
110 VDC
Rated
current
(mA)
41.7
27.8
23.8
20.8
10.4
5.3
Coil
resistance
(Ω)
288
648
882
1,152
4,606
20,862
Max.
voltage
(V)
Power
consumption
(mW)
110%
Approx. 500
Approx. 580
Note: 1.
The rated current and coil resistance are measured at a coil
temperature of 23°C with tolerances of ±15%.
2.
The maximum voltage is based on an ambient operating
temperature of 23°C maximum.
Characteristics
Contact resistance
*1
Operating time
*2
Response time
*3
Release time
*2
Must operate voltage
Must release voltage
Maximum operating
frequency
Mechanical
Rated load
Between coil and
contacts
Dielectric Strength
*5 *6
Between
contacts of
different polarity
100 mΩ max.
20 ms max.
10 ms max.
20 ms max.
75% max.
10% min.
36,000 operations/h
1,800 operations/h
1,000 MΩ min.
4,000 VAC, 50/60 Hz for 1 min.
4,000 VAC, 50/60 Hz for 1 min. (except for followings)
4 poles (for poles 3-4 in 4-pole Relays),
6 poles (for poles 3-5, 4-6, and 5-6 in 6-pole Relays): 2,500 VAC, 50/60 Hz for 1 min.
Insulation resistance
*4
Between contacts
1,500 VAC, 50/60 Hz for 1 min.
of the same polarity
Vibration resistance
Shock resistance
Durability
*7
Destruction
Malfunction
Mechanical
Electrical
10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
1,000 m/s
2
100 m/s
2
10,000,000 operations min. (at approx. 36,000 operations/h)
100,000 operations min. (at the rated load and approx. 1,800 operations/h)
AC15 AC240V 2A
DC13 DC24V 1A
5 VDC, 1 mA
12 to 48 VDC: -40 to 85°C (with no icing or condensation)
110 VDC:
-40 to 60°C (with no icing or condensation)
5% to 85%
4 poles: Approx. 22 g
6 poles: Approx. 25 g
Inductive load switching capability
*8
(IEC60947-5-1)
Failure rate (P level)
(reference value
*9)
Ambient operating temperature
*10
Ambient operating humidity
Weight
Note: 1.
The above values are initial values.
2.
Performance characteristics are based on coil temperature of 23°C.
*1.
The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.
*2.
These times were measured at the rated voltage and an ambient temperature of 23°C. Contact bounce time is not included.
*3.
The response time is the time it takes for the normally open contacts to open after the coil voltage is turned OFF. Contact bounce time is
included. Measurement conditions: Rated voltage operation, Ambient temperature: 23°C
*4.
The insulation resistance was measured with a 500-VDC megohmmeter at the same locations as the dielectric strength was measured.
*5.
Pole 3 refers to terminals 31-32 or 33-34, pole 4 refers to terminals 43-44, pole 5 refers to terminals 53-54, and pole 6 refers to terminals 63-64.
*6.
When using a P7SA Socket, the dielectric strength between coil contacts/different poles is 2,500 VAC, 50/60 Hz for 1 min. When using Push-
In Plus terminal sockets (P7SA-@F-ND-PU), the dielectric strength between coil contacts as well as between different poles is 4,000 VAC, 50/
60 Hz for 1 min.
*7.
The durability is for an ambient temperature of 15 to 35°C and an ambient humidity of 25% to 75%. For the durability performance to the load,
refer to the Durability Curve.
*8.
AC15: cosφ = 0.3, DC13: L/R = 48-ms.
*9.
The failure rate is based on an operating frequency of 300 operations/min.
*10.
12 to 48 VDC: When operating between 70 and 85°C, reduce the rated carry current of 6 A by 0.1 A for each degree above 70°C.
110 VDC: When operating between 40 and 60°C, reduce the rated carry current of 6 A by 0.27 A for each degree above 40°C.
3
G7SA
Characteristics of Sockets
Push-In Plus terminals
4 poles
Items
Models
P7SA-10F-ND-PU
6 poles
P7SA-14F-ND-PU
Screw terminals
4 poles
P7SA-10F(-ND)
6 poles
P7SA-14F(-ND)
PCB terminals
4 poles
P7SA-10P
6 poles
P7SA-14P
Ambient operating temperature
• With operation indicator LED/built-in diode
P7SA-@F-ND(-PU):
−20
to +70°C
• Without operation indicator LED/built-in diode
P7SA-@F:
−40
to +85°C
(with no icing or condensation)
25% to 85%
6 A
*1
4,000 VAC for 1 min.
−40
to +85°C
(with no icing or condensation)
5% to 85%
Ambient operating humidity
Continuous carry current
Between coil and
contact terminals
Between contact
terminals of different
polarity
Between contact
terminals of same
polarity
2,500 VAC for 1 min.
2,500 VAC for 1 min.
Dielectric
strength
1,500 VAC for 1 min.
1,000 MΩ min.
*2
Approx. 58 g
Approx. 70 g
Approx. 44 g
Approx. 59 g
Approx. 9 g
Approx. 10 g
Insulation resistance
Weight
*1.
When operating the P7SA-@F-ND-PU at a temperature between 50 and 70°C, reduce the continuous current (6 A at 50°C or less) by 0.25 A
for each degree above 50°C.
When operating the P7SA-@F-ND at a temperature between 50 and 70°C, reduce the continuous current (6 A at 50°C or less) by 0.3 A for
each degree above 50°C.
When operating the P7SA-@F at a temperature between 50 and 85°C, reduce the continuous current (6 A at 50°C or less) by 0.1 A for each
degree above 50°C.
*2.
Measurement conditions: For 500 VDC applied to the same location as for dielectric strength measurement.
Engineering Data
Durability Curve
G7SA-@A@B
No. of operations (× 10
4
operations)
1,000
700
500
300
AC1, 240 VAC
100
70
50
30
DC13, 24 VDC
AC15, 240 VAC
10
7
5
3
DC1, 24 VDC
1
0.1
0.3
0.5 0.7 1
3
5
7 10
Contact current (A)
Ambient temperature and contact current
P7SA-@F-ND-PU
Contact current (A)
Contact current (A)
Total*1
Total*2
-10F
15
12.6
10.2
7.8
5.4
3
0
1 circuit
-14F
7
20
17
14
11
8
5
0
6
5
4
3
2
1
0
P7SA-@F-ND
P7SA-@F
7
6
5
4
3
2
1
0
P7SA-
@
F-ND
P7SA-@F
24
20
16
12
8
4
0
-20 -10
0
10
20
30 40 50 60 70 80
Ambient temperature (°C)
-40 -30 -20 -10
0
10
20
30
40
50
60
70
80
90
Ambient temperature (°C)
*1.
When using a G7SA-5A1B relay, be careful not to exceed the total current (24 A).
(Example: at 50°C, 5 contacts × 4.8 A)
*2.
Certification conditions for the TÜV certification. Care should be taken not to exceed the total current.
4
G7SA

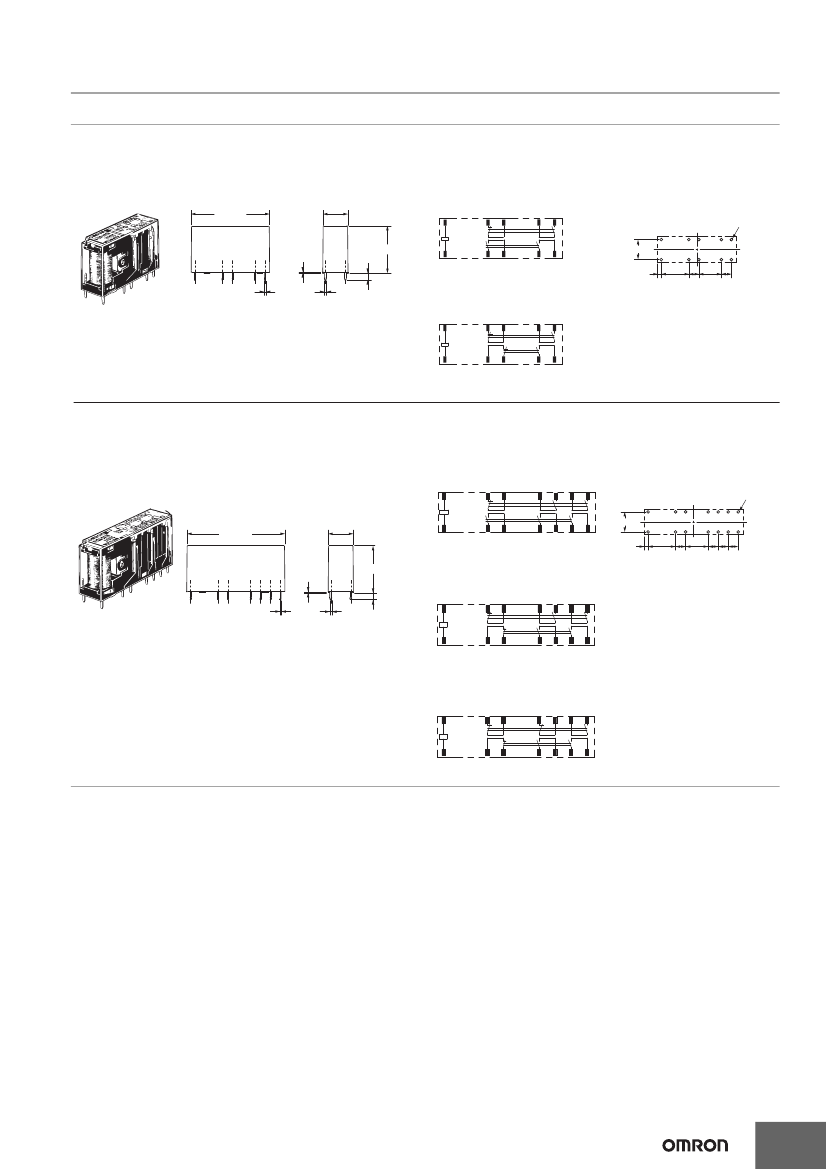

Dimensions
Relays with Forcibly Guided Contacts
4 poles
G7SA-3A1B
G7SA-2A2B
13 max.
(Unit: mm)
Terminal Arrangement/
Internal Connection Diagram
(Bottom View)
G7SA-3A1B
0
＋
−
1
3.5
Printed Circuit Board
Design Diagram
(Bottom View)
(±0.1 tolerance)
40 max.
11 12
33 34
Ten, 1.4 dia.
10.16
24 max.
0.5
23 24
43 44
(1.83)
13.97
11.43
5.08
5.08
0.5
1
G7SA-2A2B
0
＋
−
1
21 22
43 44
11 12
33 34
Note: 1.
Terminals 23-24, 33-34,
and 43-44 are normally
open. Terminals 11-12 and
21-22 are normally closed.
2.
The colors of the cards
inside the Relays are as
follows: G7SA-3A1B: Blue
and G7SA-2A2B: White.
6 poles
G7SA-5A1B
G7SA-4A2B
G7SA-3A3B
Terminal Arrangement/
Internal Connection Diagram
(Bottom View)
G7SA-5A1B
0
11 12
＋
13 max.
50 max.
Printed Circuit Board
Design Diagram
(Bottom View)
(±0.1 tolerance)
33 34 53 54
10.16
Fourteen, 1.4 dia.
−
1
24 max.
23 24
43 44 63 64
(1.83)
13.97
11.43
5.08
5.08 5.08 5.08
0.5
G7SA-4A2B
0
11 12
33 34 53 54
1
3.5
0.5
＋
−
1
21 22
G7SA-3A3B
0
＋
−
1
21 22
11 12
Note: 1.
Terminals 23-24, 33-34,
43-44, 53-54, and 63-64
43 44 63 64
are normally open.
Terminals 11-12, 21-22,
and 31-32 are normally
closed.
31 32 53 54
2.
The colors of the cards
inside the Relays are as
follows: G7SA-5A1B: Blue,
G7SA-4A2B: White, and
43 44 63 64
G7SA-3A3B: Yellow.
5
京公网安备 11010802033920号
EEWORLD
