1413NC7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1413NC7

1413NC7: DescriptionPushbutton Switches SPST-NO 3A 12V IVORY; CategoryMechanical and electronic products switch; File Size71KB，3 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

1413NC7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1413NC7	-	-	View	Buy Now

1413NC7 Overview

Pushbutton Switches SPST-NO 3A 12V IVORY

1413NC7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	IVORY
Actuator length	0.137 inch
Actuator material	POLYAMIDE
Actuator type	SQUARE PLUNGER TYPE
body width	18 mm
body height	14.5 mm
Body length or diameter	18 mm
center contact material	COPPER
Center contact plating	SILVER
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@12VDC
Contact resistance	0.01 mΩ
Maximum contact voltage (DC)	12 V
Electrical life	10000 Cycle(s)
End contact material	COPPER
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Installation features	PANEL MOUNT
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
method of packing	BULK
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal length	0.236 inch
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

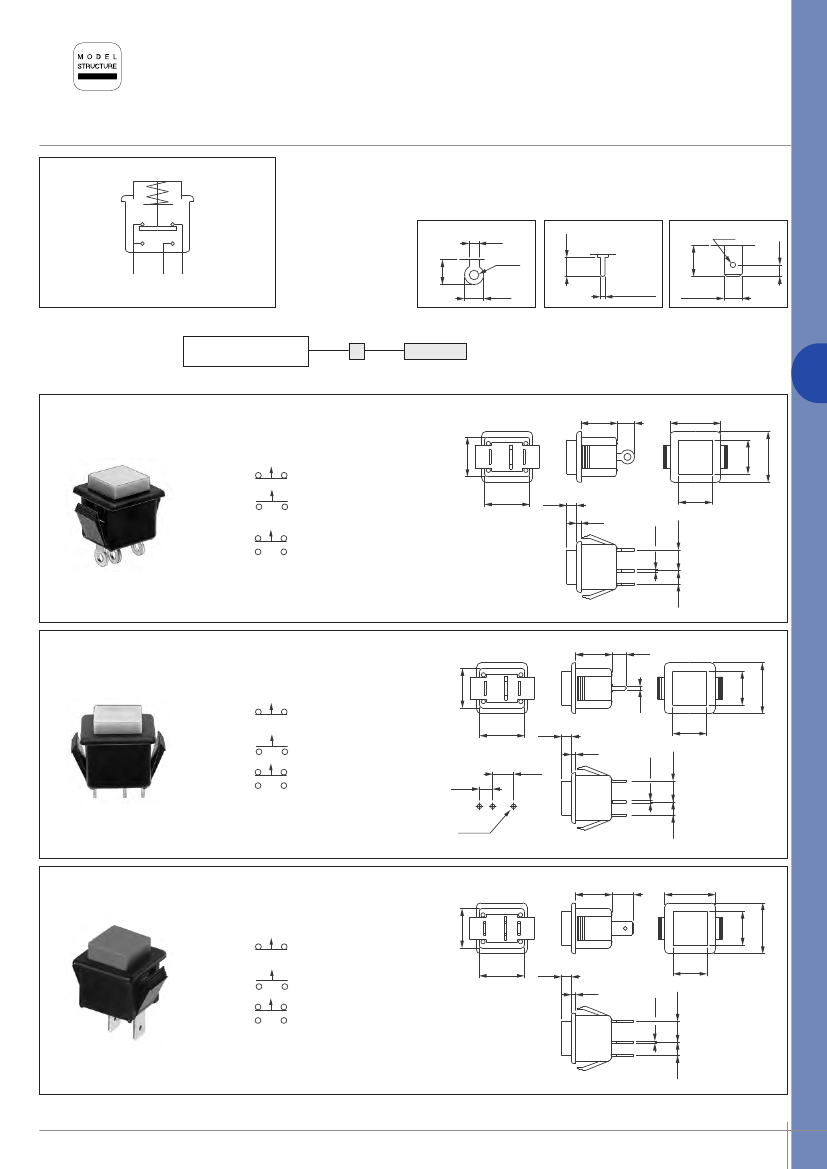

1400N series

Momentary pushbutton switches - snap-in mounting - square plunger

Distinctive features and specifications

UG1410A

Butt action contacts, double break

Solder lug, straight PC and quick-connect terminals

ELECTRICAL SPECIFICATIONS

MATERIALS

• Max. current/voltage rating with resistive load :

- silver contacts (A) : 6A 12VDC

- silver plated copper contacts (C) : 3A 12VDC

• Initial contact resistance : 10 mΩ

• Insulation resistance : 1.000 MΩ min. at 500VDC

• Dielectric strength :

1.500 Vrms 50 Hz min. between terminals

2.000 Vrms 50 Hz min. between terminals and metal panel

• Electrical life : 10.000 cycles at full load

• Case : polyamide

• Plunger : polyamide

• Contacts :

: silver

: copper, silver plated

GENERAL SPECIFICATIONS

• Panel thickness : 2 mm (.078) max.

• Operating temperature : -20°C to +55°C

Dimensions

: first dimensions are in mm while inches are shown as bracketed numbers.

Packaging unit

: 60 pieces.

The company reserves the right to change specifications without notice.

B2-114

www.apem.com

APEM
