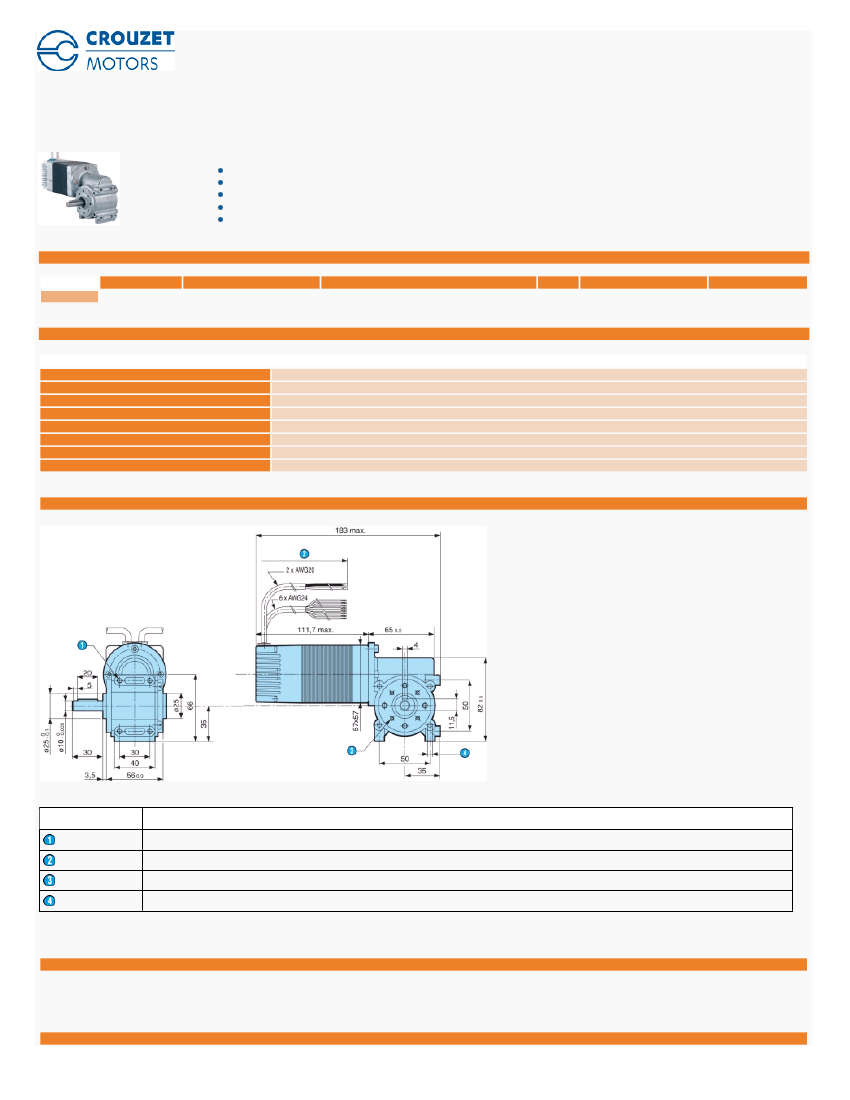

80 and 100 W - 10 Nm - Right-angle gearbox 801810 TNi20 - PWM Part number Contact us
With or without integrated control electronics
Output perpendicular to motor
Ideal for short reduction ratios
Ideal for very compact applications
Silent operation
Non-reversible movement at high ratios
Part numbers
Type
80181002
With built-in electronic control Without built-in control, with Hall effect sensors Ratios (i) Output speed (rpm) 24 V DC Available torque (Nm)
-
10
325
1,7
801810 TNi20 - PWM TNi20
Specifications
General characteristics
Motor
Nominal motor power at 24 V (W)
Speed control
Axial load dynamic (N)
Radial load dynamic (N)
Temperature rise at 50 % cycle (°C)
Weight (g)
Protection index
801800
80
PWM
100
150
45
1920
IP54
Dimensions (mm)
801810 with built-in TNi20
N
o
Legend
4 x M5 over depth 8 mm
Length of cable 500 ± 5 mm
4 x M4 over Ø 36 depth 8 mm
4 x M5 depth 8 mm
Precautions for use
The limits and precautions for use described in the 80 W brushless motor section must be observed.
Continuous use may cause the gearbox to overheat.
This geared motor is recommended for applications in which the operating time does not exceed 50 % of the total time. For longer times, please consult us.
Product adaptations
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
2-quadrant speed regulation
With built-in electronic card TNi20
No lead output but connector in motor
Dimensions of gearbox shaft
Cable length, with or without connector
Other reduction ratios
Other windings
Mechanical holding brake
www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
