Min. 1,000 MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,000 Vrms for 1 min. (Detection current: 10mA)
5,000 Vrms for 1 min. (Detection current: 10mA)
Max. 55°C
131°F
[with nominal coil voltage and at 16A contact carrying current (resistance method) at 20°C
68°F]
10,000 V
Max. 15ms (excluding contact bounce time)
Max. 5ms (excluding contact bounce time, without diode)
100 m/s
2
(Half-wave pulse of sine wave: 11ms; detection time: 10µs)
1,000 m/s
2
(Half-wave pulse of sine wave: 6ms)
10 to 55Hz at double amplitude of 1.5mm (Detection time: 10µs)
(Only the N.C. side of 1 Form C is 0.8mm)
10 to 55Hz at double amplitude of 1.5mm
Min. 10
7
N.O.: Min. 10
5
, N.C.: Min. 5
×
10
4
Ambient temperature: –40°C to +85°C
–40°F to +185°F
(Class B),
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 times/min. (at nominal switching capacity)
Approx. 12 g
.42 oz
Rating
Mechanical
characteristics
Expected life
Destructive
Mechanical (at 180 times/min.)
Electrical (at 20 times/min.)*
3
Conditions for operation, transport and storage*
4,
*
5
Max. operating speed
Conditions
Unit weight
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Wave is standard shock voltage of
±1.2 ×
50µs according to JEC-212-1981.
*3. In order to obtain the full rated life cycles, the relay should be properly vented by removing the vent nib. More detail, please look at caution for NOTES.
*4. Class F type is ambient temperature 105°C
221°F.
*5. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
*Please note that some of the specifications listed above may not comply with overseas standards.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB203E 201209-T
LZ (ALZ)

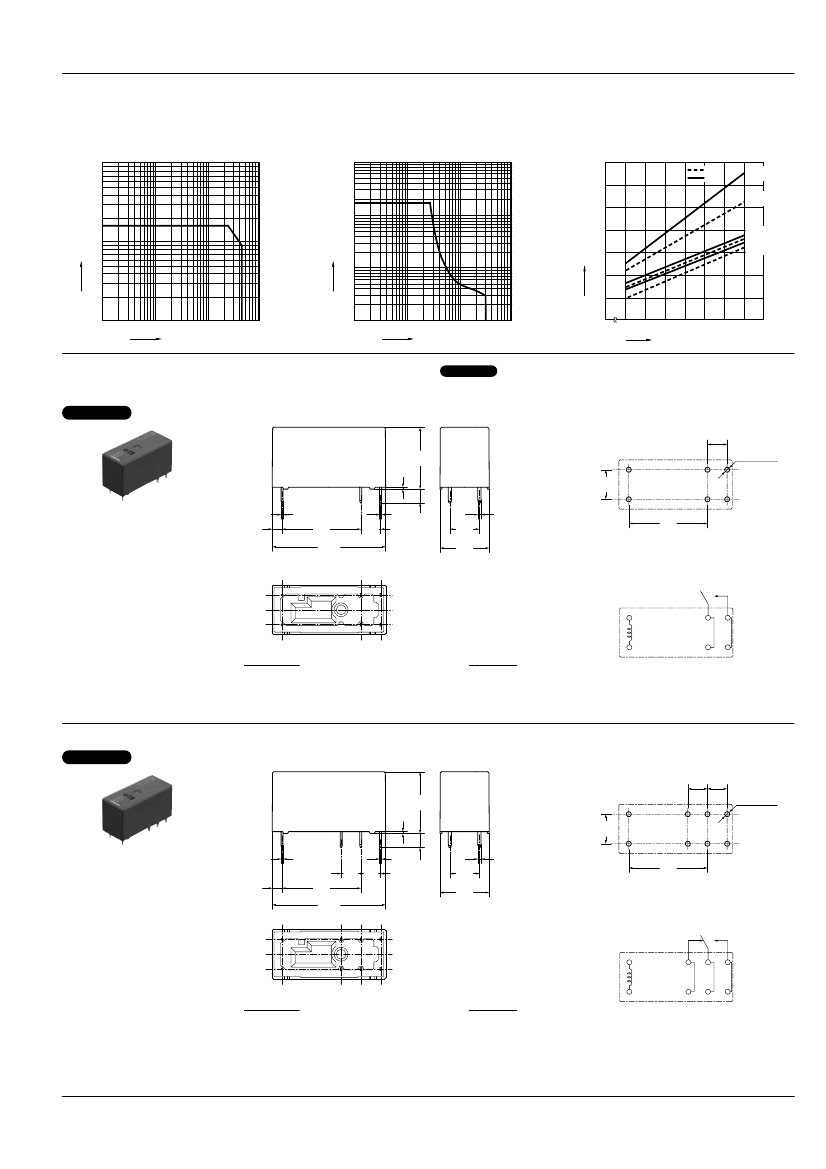

REFERENCE DATA
1. Max. switching power (AC resistive load)
2. Max. switching power (DC resistive load)
3. Coil temperature rise
Sample: ALZ11F12, 5pcs.
Measured portion: coil inside
Contact current: 0 A, 16 A
100
100
Temperature rise,
°C
55
50
45
40
35
30
25
1
1
10
30
100
440 1000
0
10
100
Contact voltage, V
20
0
100 105 110 115 120 125 130 135
Coil applied voltage, %V
Normal
temperature
85°C
85°C
105°C
105°C
0A
16A
Normal
temperature
Contact current, A
Contact current, A
Contact voltage, V
10
16
10
1
DIMENSIONS
(mm
inch)
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
1. 1 Form A type (New PC board terminal)
External dimensions
PC board pattern
5
.197
15.7
0.5
.618
.020
7.5
.295
0.5
.020
0.5
.020
3.5
.138
0.8
.031
6-1.3 dia.
6-.051 dia.
2.5
.098
20
.787
28.8
1.134
5
.197
7.5
.295
12.5
.492
20
.787
Tolerance:
±0.1
±.004
Schematic (Bottom view)
Coil
Dimension:
Less than 1mm
.039inch:
Min. 1mm
.039inch
less than 3mm
.118 inch:
Min. 3mm
.118 inch:
Tolerance
±0.1
±.004
±0.2
±.008
±0.3
±.012
2. 1 Form C type
CAD Data
External dimensions
PC board pattern
5
5
.197 .197
8-1.3 dia.
8-.051 dia.
7.5
.295
0.8
.031
15.7
0.5
.618
.020
0.5
.020
2.5
.098
20
.787
28.8
1.134
5
5
.197 .197
0.5
.020
3.5
.138
7.5
.295
12.5
.492
20
.787
Tolerance:
±0.1
±.004
Schematic (Bottom view)
Coil
Dimension:
Less than 1mm
.039inch:
Min. 1mm
.039inch
less than 3mm
.118 inch:
Min. 3mm
.118 inch:
Tolerance
±0.1
±.004
±0.2
±.008
±0.3
±.012
ASCTB203E 201209-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
LZ (ALZ)
SAFETY STANDARDS
File No.
E43149
UL/C-UL (Recognized)
Contact rating
16A 277V AC, 34.8LRA/7.2FLA/120V AC, 15LRA/3FLA/120V AC
In embedded development, after we have completed the project creation, code editing and other operations, we can start the project compilation. For projects created using built-in project templates or...
