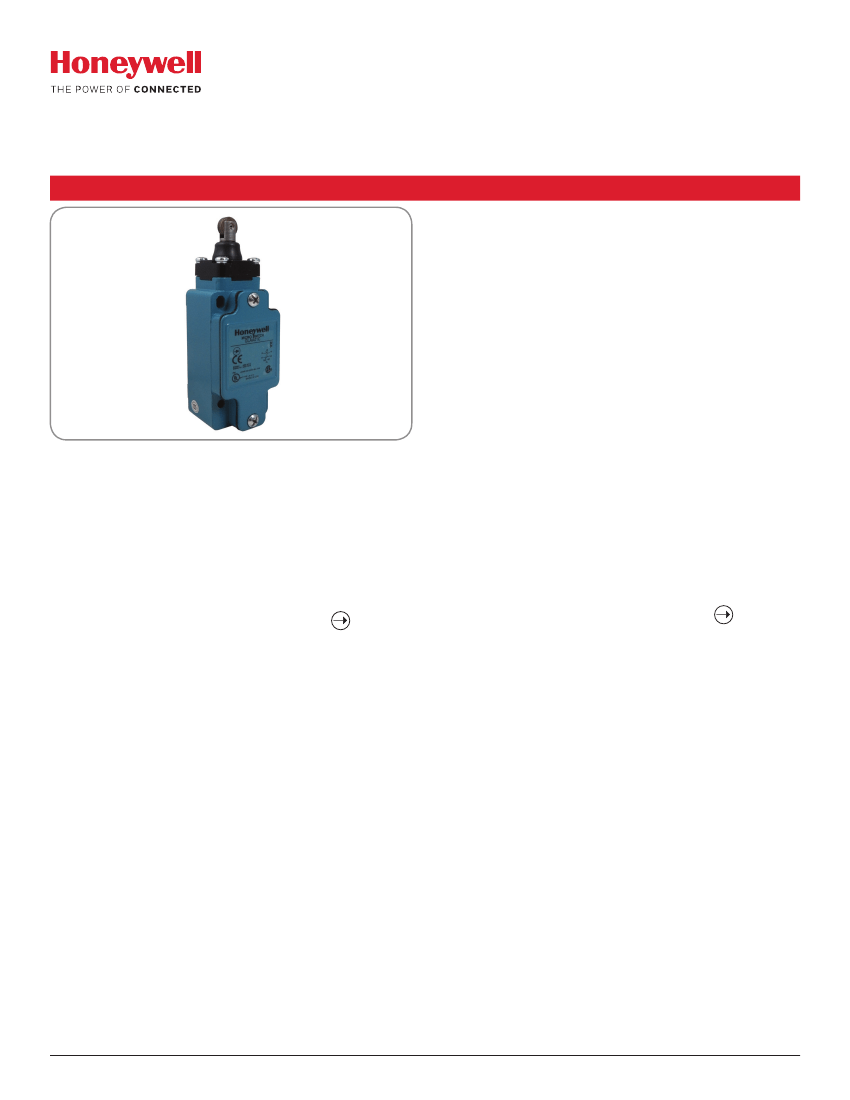

-40 °C to 85 °C [-40 °C to 185 °F] side rotary actuator
-25 °C to 85 °C [-13 °F to 185 °F] other actuators
Up to 15 million operations
10 g conforming to IEC 68-2-6
50 g conforming to IEC 68-2-27
Standard limit switch with 1 LED pilot light (GLF Series) or 2 LED pilot lights (GLH Series) in front cover
Plug-in limit switch with 1 LED pilot light (GLG Series) in front cover
Rated operational voltage (Ue) 240 Vac, 600 Vac, 250 Vdc
*Normally closed (NC) contacts are positive opening except for the center neutral limit switches
1
CCC certification is not available on the GL Series Switches sold within Europe, Middle East, and Africa. Option for CCC certification in these regions is available
upon request.
Table 2. Electrical Ratings
Electrical Rating
ac
A600
Ue
(Volts)
120
240
380
480
500
600
AC15
Ie
(Amps)
6
3
1.9
1.5
1.4
1.2
dc
Q300
Ue
(Volts)
24
125
250
DC13
Ie
(Amps)
2.8
0.55
0.27
1 V 10
mA
min.
50 V 100 mA max.
Gold-plated
contacts
2
sensing.honeywell.com
MICRO SWITCH Global Limit Switches, GLA Series
Figure 1. Product Nomenclature
GL
Switch Type
A
Body Style
(EN50041)
A
Conduit
01
Basic Switch
A
Heads
E7B
Actuators or Levers*
GL
Series
Global
Limit
Switch
A
B
F
G
H
Non plug-in
Plug-in
Non plug-in
with 1 LED
pilot light
Plug-in
with 1 LED
pilot light
Non plug-in
with 2 LED
pilot lights
A
B
C
D
0.5-14
NPT
PG 13,5
20 mm
G 1/2
(PF 1/2)
01
1NC/1NO, SPDT
20
snap action
07
gold contacts,
snap action
1NC/1NO, SPDT,
22
2NC/2NO,
DPDT
snap action
2NC/2NO, DPDT,
gold contacts,
snap action
2NC/2NO, DPDT
snap action,
LED
2NC/2NO, DPDT,
snap action, gold
contacts, LED
A
J
B
C
D
H
E
K
Side rotary
Side rotary,
center neutral
Top pin
plunger (SST)
Top roller
plunger, SST
12 x 5 mm roller
Top roller
lever, nylon
19 x 8 mm roller
Top
adjustable
plunger
Wobble stick
Cat
whisker
1A
1B
1C
1T
1Y
2A
2B
2D
2W
2Y
38 mm fixed,
19 x 6 nylon
roller
38 mm fixed,
19 x 6 steel
roller
38 mm fixed,
25 x 12 nylon
roller
38 mm fixed,
19 x 9 SST roller
38 mm fixed,
50 x 10 rubber
roller
38 to 93 mm
adjustable, 19 x
6 nylon roller
38 to 93 mm
adjustable, 19 x
6 steel roller
38 to 93 mm
adjustable, 38 x
5 nylon roller
38 to 93 mm
adjustable, 38 x
12 rubber roller
38 to 93 mm
adjustable, 50 x
10 rubber roller
3
3A
3B
4J
4K
4N
5A
5B
38 mm fixed
yoke, no
rollers
38 mm fixed
yoke, 19 x 6
nylon rollers
38 mm fixed
yoke, 19 x 6
steel rollers
Adjustable
aluminum rod,
200 mm max.
Adjustable
aluminum rod,
140 mm max.
Adjustable
SST rod,
318 mm max.
38 mm fixed
offset, 19 x 6
nylon roller
38 mm fixed
offset, 19 x 6
steel roller
7A
7B
7C
7D
8A
8B
8C
150 mm x
Ø6,4 mm
plastic rod
141 mm x
Ø6,7 mm
coil spring
153 mm x
Ø4,7 mm
steel coil spring
165 mm x
Ø1,3 mm
SST wire
140 mm x
Ø1,2 mm
SST wire
190 mm x
Ø1,2 mm
SST wire
141 mm x
Ø6,7mm
SST coil spring
1
2
3
4
5
6
CW actuation
only
CCW actuation
only
Head with
lever to right
Head with
lever to left
Head with lever
to mounting
surface
Roller plunger
perpendicular
to mtg. surface
02
1NC/1NO, SPDT
24
snap action**
12
snap action,
1 LED**
03
SPDT, BBM,
slow action
1NC/1NO, SPDT,
1NC/1NO, SPDT
32
21
1NC/1NO,
2NC/2NO, DPDT,
snap action,
sequential
2NC/2NO, DPDT,
snap action, gold
contacts, sequential
2NC/2NO, DPDT,
snap action,
LED, sequential
2NC/2NO, DPDT,
snap action, gold
contacts, LED,
sequential
2NC/2NO, DPDT,
snap action,
center neutral
2NC/2NO, DPDT,
snap action, gold
contacts,
center neutral
slow action,
28
33
BBM,contacts
gold
SPDT,
04
1NC/1NO, action
25
MBB, slow
slow action,
31
34
MBB,contacts
gold
1NC/1NO, SPDT,
05
2NO,action
slow
action,
35
slow contacts
gold
2NO,
26
29
27
30
06
slow action
action,
36
slow contacts
gold
2NC,
2NC,
2NC/2NO, DPDT,
snap action, LED,
center neutral
2NC/2NO, DPDT,
snap action, LED,
center neutral, gold
contacts
* Levers beginning with codes 1 to 5 are for
A
and
J
style side rotary heads only.
Actuators beginning with Code 7 are for
E
style wobble stick head only.
Actuators beginning with Code 8 are for
K
style cat whisker head only.
**NOTE: Basic switch codes
02
and
12
may only be used
with body styles
B
and
G.
Sensing and Internet of Things
3
MICRO SWITCH Global Limit Switches, GLA Series

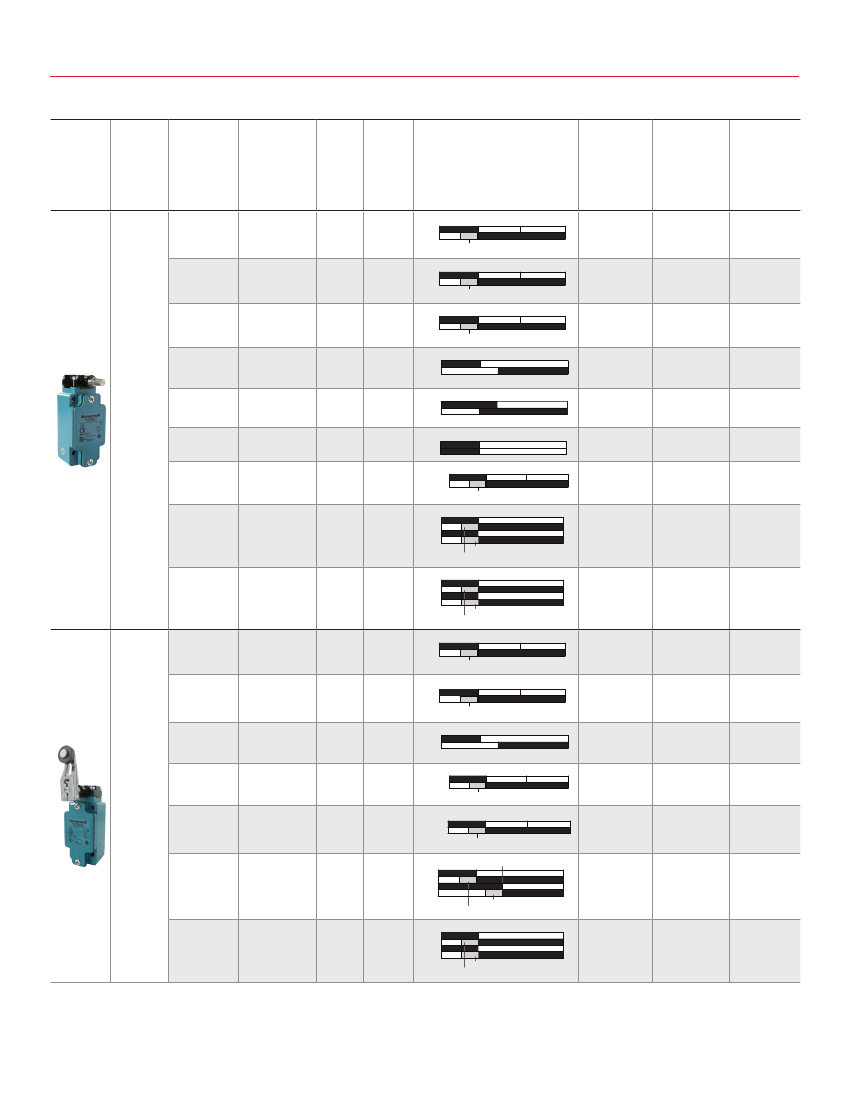

Table 3. MICRO SWITCH GLA Series Side Rotary Order Guide
Catalog Listing*
Operating Torque
max. Nm [in-lb]
Contact Material
Head and Lever
Type
With LED Pilot
Light/s
Contact Type
Contact
Arrangement
Bar Chart (degrees)
¢
contact closed
£
contact open
21-22
13-14
26°
55°**
75° min.
>
<
0.5-14 NPT
Conduit
20 mm
Conduit
1NC/1NO
Snap action
Silver
alloy
Silver
alloy
Gold-
plated
Silver
alloy
Silver
alloy
Silver
alloy
Silver
alloy
Silver
alloy
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
–
1 LED
(yellow)
–
–
GLAA01A
GLAC01A
12° Differential travel
26°
55°**
75° min.
>
<
1NC/1NO
Snap action
21-22
13-14
GLFA01A
GLAA07A
–
GLAA04A
–
GLAA20A
–
GLAC07A
GLAC03A
–
GLAC06A
–
12° Differential travel
26°
55°**
75° min.
>
<
1NC/1NO
1NC/1NO
Side
rotary,
no lever
1NC/1NO
2NC
2NC/2NO
2NC/2NO
Center
neutral
2NC/2NO
Center
neutral
1NC/1NO
Snap action
Slow action,
BBM
Slow action,
MBB
Slow action
Snap action
21-22
13-14
12° Differential travel
21-22
13-14
26° **
38°
38° **
26°
75° min.
21-22
13-14
75° min.
–
75° min.
11-12
21-22
26° **
–
–
11-12, 21-22
13-14, 23-24
26°
55°**
75° min.
>
<
12° Differential travel
Snap action
† 11-12
13-14
‡ 21-22
23-24
0°
16°
75° min.
>
<
>
<
–
GLAA26J
–
8° Differential travel
8° Differential travel
0°
16°
75° min.
>
<
>
<
Snap action
Gold-
plated
Silver
alloy
Gold-
plated
Silver
alloy
Silver
alloy
Silver
alloy
Silver
alloy
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
† 11-12
13-14
‡ 21-22
23-24
–
GLAA29J
–
8° Differential travel
8° Differential travel
Snap action
21-22
13-14
26°
55°**
75° min.
>
<
–
2 LEDs
(green &
yellow)
–
GLAA01A1A
GLAC01A1A
12° Differential travel
26°
55°**
75° min.
>
<
1NC/1NO
1NC/
1NO
Side
rotary,
fixed
lever,
nylon
roller
2NC/2NO
Snap action
Slow action,
BBM
Snap action
21-22
13-14
GLHA07A1A
GLAA03A1A
GLAA20A1A
–
–
GLAC20A1A
12° Differential travel
21-22
13-14
26° **
38°
26°
55°**
75° min.
11-12, 21-22
13-14, 23-24
75° min.
>
<
–
2 LEDs
(green &
yellow)
–
12° Differential travel
2NC/2NO
2NC/2NO
Sequen-
tial
2NC/2NO
Center
neutral
Snap action
11-12, 21-22
13-14, 23-24
26°
55°**
75° min.
>
<
12° Differential travel
–
GLHC24A1A
Snap action
11-12
13-14
21-22
23-24
27°
42°
75° min.
>
<
>
<
GLAA21A1A
–
8° Differential travel
8° Differential travel
0°
16°
75° min.
>
<
>
<
Snap action
Silver
alloy
0,33
[2.9]
† 11-12
13-14
‡ 21-22
23-24
–
GLAA26J1A
–
8° Differential travel
8° Differential travel
* Note: When conduit style G1/2 (PF1/2) is required, change the 4th digit in the catalog listing to the letter D. For example, GLAA01A1A would change to GLAD01A1A
for G1/2 conduit. When conduit style PG13,5 is required, change the 4th digit in the cagalog listing to the letter B. For example, GLAA01A1A would change to GLA-
B01A1A
for PG13,5 conduit.
** Positive opening occurs.
† Contacts 11-12, 13-14 operate in CCW direction. ‡ Contacts 21-22, 23-24 operate in CW direction.
4
sensing.honeywell.com
MICRO SWITCH Global Limit Switches, GLA Series
Table 3. MICRO SWITCH GLA Series Side Rotary Order Guide, continued
Catalog Listing*
Operating Torque
max. Nm [in-lb]
Contact Material
Head and Lever
Type
With LED Pilot
Light/s
Contact Type
Contact
Arrangement
Bar Chart (degrees)
¢
contact closed
£
contact open
21-22
13-14
26°
55°**
75° min.
>
<
0.5-14 NPT
Conduit
20 mm
Conduit
1NC/1NO
Snap action
Silver
alloy
Silver
alloy
Silver
alloy
Gold-
plated
Silver
alloy
Silver
alloy
Silver
alloy
Silver
alloy
Gold-
plated
Silver
alloy
Silver
alloy
Gold-
plated
Silver
alloy
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
0,33
[2.9]
–
1 LED
(yellow)
2 LEDs
(green &
yellow)
–
–
GLAA01A1B
GLAC01A1B
12° Differential travel
26°
55°**
75° min.
>
<
1NC/1NO
Snap action
21-22
13-14
GLFA01A1B
–
12° Differential travel
26°
55°**
75° min.
>
<
1NC/1NO
Snap action
21-22
13-14
GLHA01A1B
GLHC01A1B
12° Differential travel
26°
55°**
75° min.
>
<
1NC/1NO
1NC/1NO
1NC/1NO
2NC
Side
rotary,
fixed
lever,
steel
roller
2NC/2NO
2NC/2NO
2NC/2NO
Snap action
Slow action,
BBM
Slow action,
MBB
Slow action
Snap action
Snap action
Snap action
21-22
13-14
GLAA07A1B
GLAA03A1B
GLAA04A1B
GLAA06A1B
GLAA20A1B
GLAA22A1B
GLFA24A1B
GLAC07A1B
–
–
GLAC06A1B
GLAC20A1B
–
–
12° Differential travel
21-22
13-14
26° **
38°
38° **
26°
75° min.
21-22
13-14
75° min.
–
75° min.
11-12
21-22
26° **
–
–
–
1 LED
(yellow)
2 LEDs
(green &
yellow)
2 LEDs
(green &
yellow)
–
11-12, 21-22
13-14, 23-24
26°
55°**
75° min.
>
<
12° Differential travel
26°
55°**
75° min.
>
<
11-12, 21-22
13-14, 23-24
12° Differential travel
26°
55°**
75° min.
>
<
11-12, 21-22
13-14, 23-24
12° Differential travel
2NC/2NO
Snap action
11-12, 21-22
13-14, 23-24
26°
55°**
75° min.
>
<
12° Differential travel
26°
–
–
2NC/2NO
Snap action
11-12, 21-22
13-14, 23-24
55°**
75° min.
>
<
12° Differential travel
GLHA32A1B
–
2NC/2NO
Sequential
2NC/2NO
Center
neutral
2NC/2NO
Center
neutral
Snap action
11-12
13-14
21-22
23-24
27°
42°
75° min.
>
<
>
<
–
GLAC21A1B
8° Differential travel
8° Differential travel
0°
16°
75° min.
>
<
>
<
Snap action
Silver
alloy
0,33
[2.9]
† 11-12
13-14
‡ 21-22
23-24
–
GLAA26J1B
–
8° Differential travel
8° Differential travel
0°
16°
75° min.
>
<
>
<
Snap action
Gold-
plated
0,33
[2.9]
† 11-12
13-14
‡ 21-22
23-24
–
GLAA29J1B
–
8° Differential travel
8° Differential travel
* Note: When conduit style G1/2 (PF1/2) is required, change the 4th digit in the catalog listing to the letter D. For example, GLAA01A1A would change to GLAD01A1A
for G1/2 conduit. When conduit style PG13,5 is required, change the 4th digit in the cagalog listing to the letter B. For example, GLAA01A1A would change to GLA-
B01A1A
for PG13,5 conduit.
** Positive opening occurs.
† Contacts 11-12, 13-14 operate in CCW direction. ‡ Contacts 21-22, 23-24 operate in CW direction.
I defined NV_RESTORE in the protocol stack so that it can automatically join the original network every time it is powered on. But the problem comes with it. The device information recorded in the coo...
After graduation, I have been engaged in debugging work. I want to make a circuit by myself. The frequencies used in the company are very high, usually above 500M, so I want to make a lower frequency....
I use CC2541 to communicate with Bluetooth module DS-BT19-S Bluetooth module.
Now it is connected, but the CC2541 sends data and the Bluetooth module cannot receive it.
Use the mobile phone LIGHTBLUE ...
Abstract: The snubber circuit parameter values play a vital role in the GTO turn-off performance and the working performance of the entire GTO inverter. This paper analyzes the waveforms of the anode ...
[i=s]This post was last edited by Not Just a Passerby on 2022-1-12 16:55[/i]How to set the maximum FM bandwidth 4GHZ in the CFG configuration file in TI millimeter wave radar...
Traditional broadcasting systems generally need to be operated manually at a fixed time, and can only realize one-way broadcasting with few functions. Traditional bell ringing equipment has a singl...[Details]
1. Circuit composition
The whole circuit consists of two parts:
1. Power saving control circuit
As shown in the figure below. Including delay circuit and drive circuit.
(1) Delay ci...[Details]
1. Introduction
With the growth of parking demand, the scale of parking lots is becoming larger and larger. A lot of research has been done on intelligent parking lots in China, but most of th...[Details]
Converged processors meet scalability requirements
In current embedded system design, solutions based on MCU, DSP, FPGA and ASIC account for more than 90% of the market share. These solutions ...[Details]
In recent years, lighting has become an important area that countries around the world are targeting to promote energy conservation and environmental protection. According to statistics, about 20% ...[Details]
As a simple and practical input device, buttons have been used in various microcontroller application systems and are ubiquitous. However, the buttons used in different practical occasions are also...[Details]
Abstract: The output of high-range acceleration sensor is less than 10 mV under the excitation of small signal. The noise of traditional test system may cover such small voltage signal, so that hig...[Details]
Introduction
In industrial control, speed measurement is often required. Generally, a contact tachometer is used. This tachometer must be placed against the center of the shaft to measure. It...[Details]
1. Proposal of
reconfigurable
measurement and control system
The measurement and control system generally refers to a system based on
computers
to realize data acquisition a...[Details]
A stepper motor is an electromagnetic mechanical device that converts an electrical pulse signal into an angular displacement or a linear displacement. The stability and reliability of a stepper mo...[Details]
The future energy storage hotspot is not coal or iron ore, but lithium. This lightest metal in nature may be the heaviest resource in the future energy landscape. China launched an ambitious electr...[Details]
Currently, high-frequency and high-efficiency DCDC converters are increasingly used in automotive electronic systems.
High switching frequency can use smaller power inductors and output filter...[Details]
introduction
The core features of mobile value-added service products are mobility, immediacy and personalization. Mobile value-added services are a new service mode that is rapidly developing...[Details]
1 Introduction
With the development of computer technology and information technology in the world, the global information age has arrived. All countries are formulating their own development p...[Details]
The principles to be followed are as follows:
(1) In terms of component layout, related components should be placed as close as possible. For example, clock generators, crystal oscillat...[Details]
ARM Technology
京公网安备 11010802033920号
EEWORLD
