Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
Electro-Tin
3/0 STR/FLEX
LCCX3/0-14BH
.43 R Ref
Stranded Copper: Class B & C,
Compact, Class G, H, I, K, M,
Locomotive
1-5/8 in.
1/4 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
1.06±.04
Wire Strip Length
Stud Size
UL Listed Wire
Connector
PANDUIT
3/0 STR/FLEX
PANDUIT
ORANGE DIE P50 (14)
.35±.04
.75±.02
.27±.02 DIA
(2) PLS
Color coded
barrel markings
.71±.01
.57±.01
Beveled wire entry
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
1.56±.04
ORANGE
Panduit Die Index No. P50
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(14)
Wire inspection window
45°±5°
1.97 REF
CERTIFIED
LISTED
Wire Connector
.14±.01
2.98 REF
CORP.
00
REV
TINLEY PARK, ILLINOIS
6/03
DATE
SAC SAC
BY
CHK
RELEASED
DESCRIPTION
10850
ECN
LCCX3/0-14BH-X

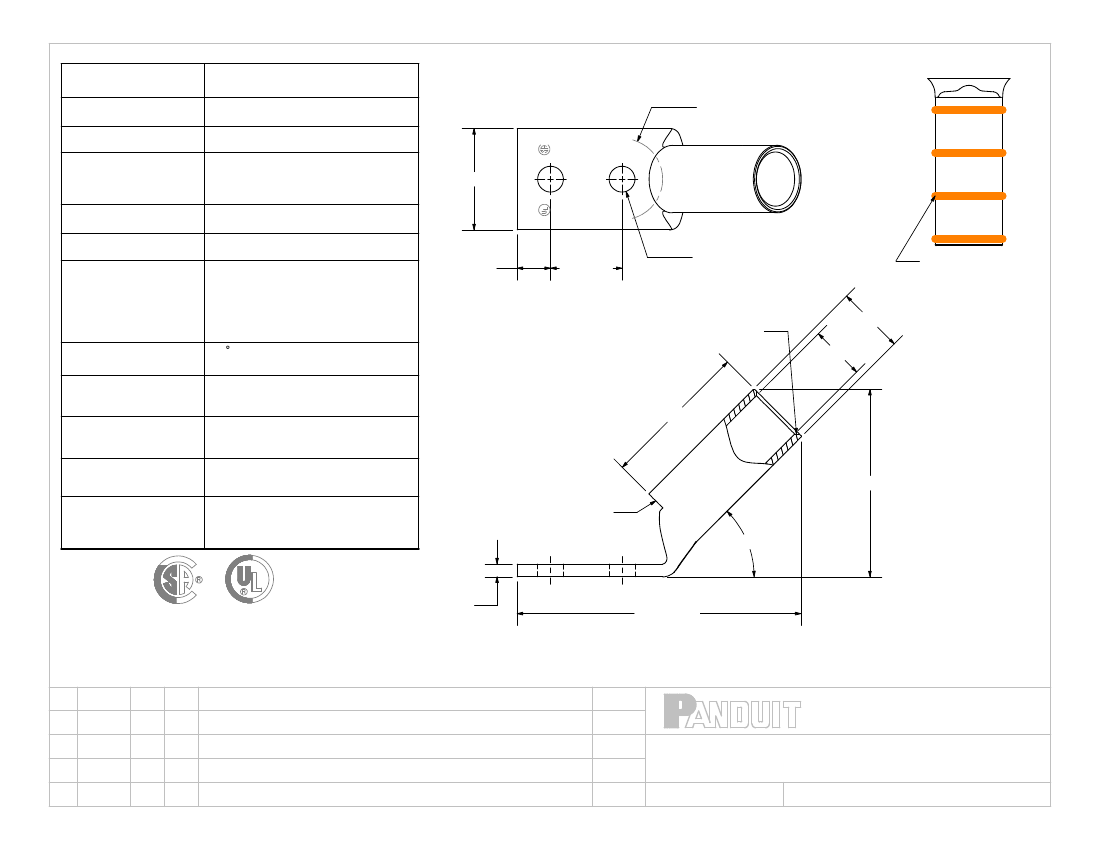

Copper Lug - Two-Hole, Long Flex Barrel with Window, 45° Angle Tongue
SCALE
N/A
DRAWING NO / CAD FILE
LCCX3_0-14BH-CUST
