R141237161W

Description
RF Connectors / Coaxial Connectors BNC(F) STG FX CR 5/50SS
CategoryThe connector    The connector
File Size24KB,2 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

R141237161W Online Shopping

Suppliers Part Number Price MOQ In stock
R141237161W - - View Buy Now

R141237161W Overview

RF Connectors / Coaxial Connectors BNC(F) STG FX CR 5/50SS

R141237161W Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Factory Lead Time4 weeks 2 days
Is SamacsysN
Other featuresSTANDARDS: MIL-C-39012; IEC-169-8
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPOLYPROPYLENE
JESD-609 codee4
MIL complianceYES
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency1.5 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.14
Base Number Matches1

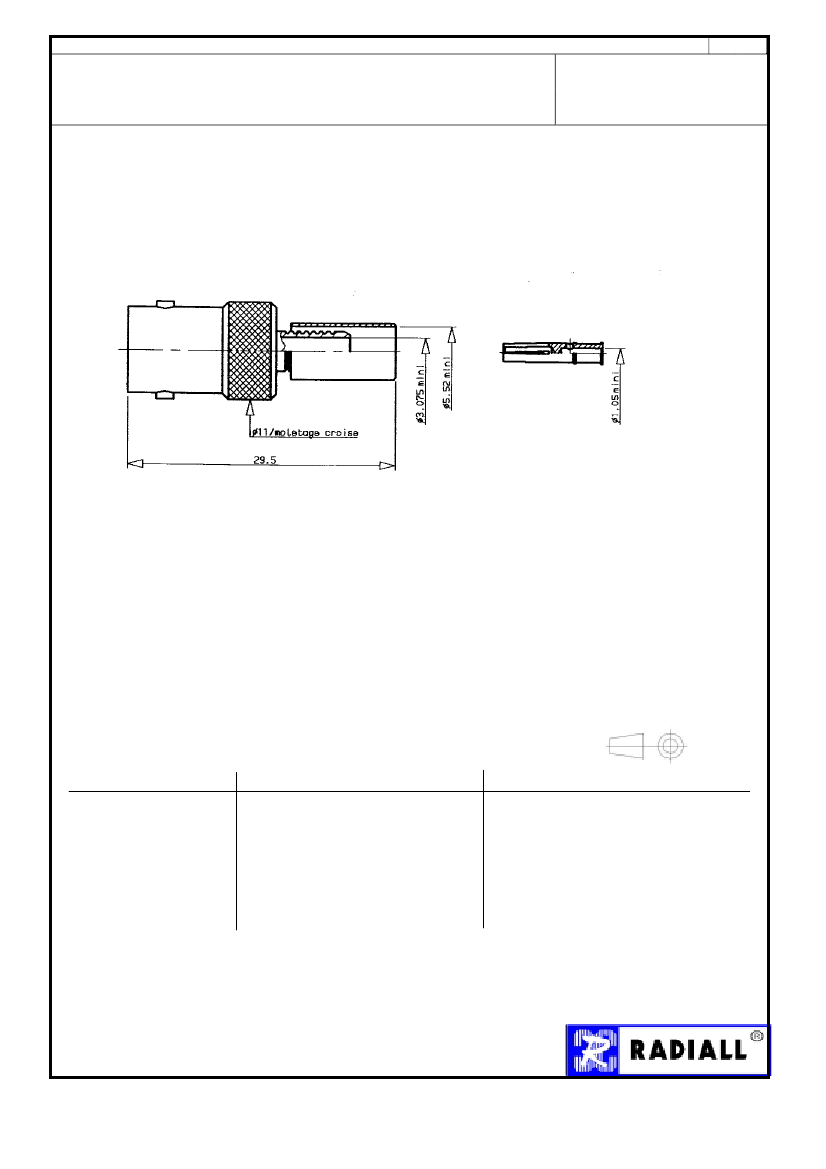

TECHNICAL DATA SHEET
1/2
STRAIGHT JACK CRIMP TYPE
CABLE 5/50 S - PACK 100
R141.237.161
Series :
BNC-COM
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
BRASS
BRASS
-
PTFE
-
BRASS
-
-
MATERIALS
PLATINGS
(µm)
NICKEL 2
GOLD 0.5 OVER NICKEL 2
-
NICKEL 2
-
-
Issue : 0339 F
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.

R141237161W Related Products

R141237161W R141237161
Description RF Connectors / Coaxial Connectors BNC(F) STG FX CR 5/50SS RF Connectors / Coaxial Connectors TNC(M) R/A PLG CRP 5/50, 100P
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Reach Compliance Code compliant compliant
Is Samacsys N N
Other features STANDARDS: MIL-C-39012; IEC-169-8 APPLICABLE CABLES: RG 58; RG 141, CAPTIVE CENTER CONTACT
Body/casing type JACK JACK
Characteristic impedance 50 Ω 50 Ω
Connector type RF BNC CONNECTOR RF BNC CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated Gold (Au) Gold (Au) - with Nickel (Ni) barrier
Contact point gender FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED
Coupling type BAYONET BAYONET
DIN compliance NO NO
Filter function NO NO
IEC compliance YES NO
insulator material POLYPROPYLENE POLYTETRAFLUORO ETHYLENE
JESD-609 code e4 e4
MIL compliance YES NO
Installation method STRAIGHT STRAIGHT
Installation type CABLE CABLE
Maximum operating frequency 1.5 GHz 4 GHz
Options GENERAL PURPOSE GENERAL PURPOSE
Panel mounting NO NO
Termination type CRIMP CRIMP
voltage standing wave ratio 1.14 1.22
Base Number Matches 1 1
