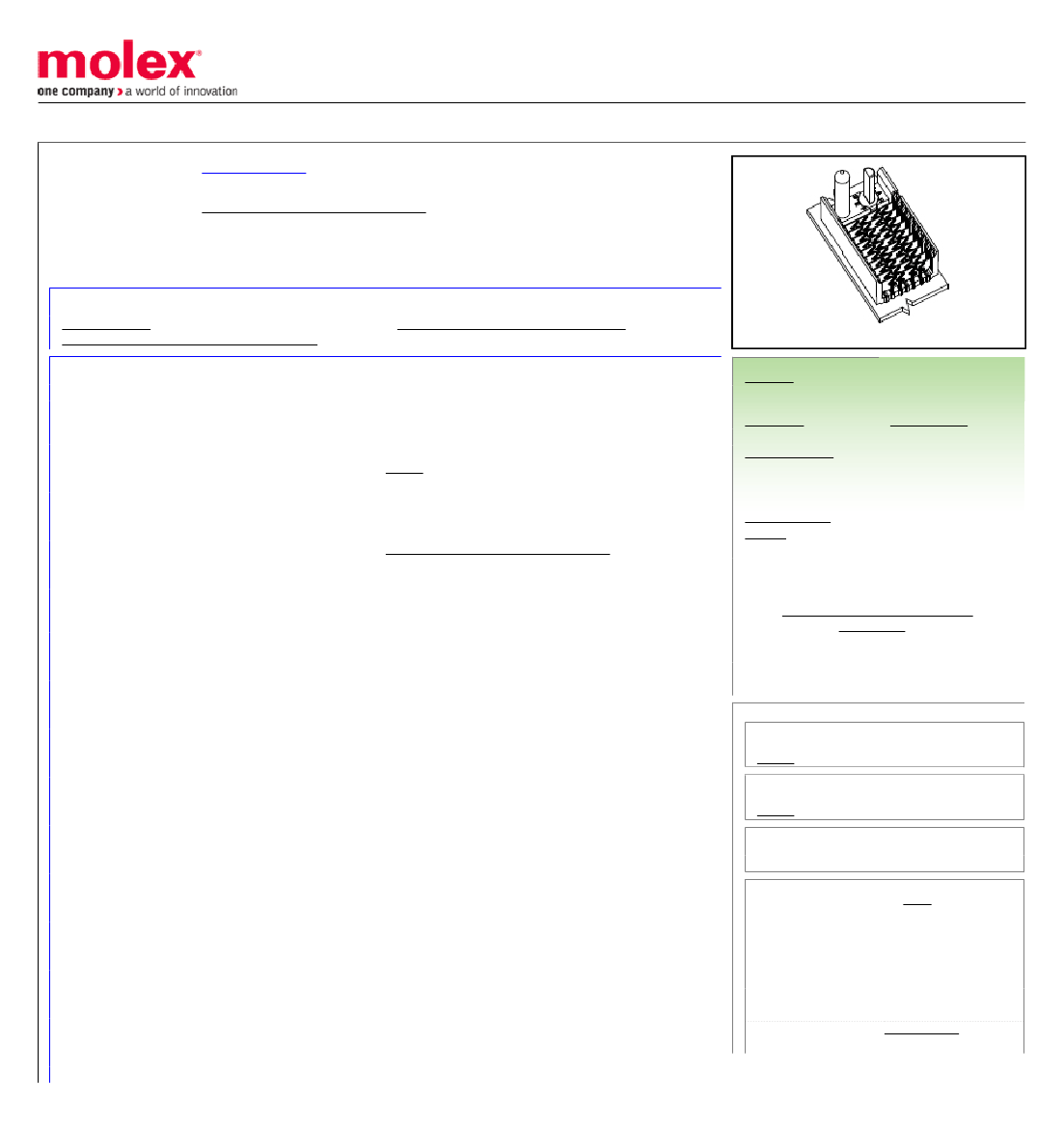

High Speed / Modular Connectors HSD BACKPLANE 6R 10C 10C SIGNAL END ASSY
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT, TUBE PACKAGING |
| body width | 0.673 inch |
| subject depth | 0.484 inch |
| body length | 1.063 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | MATTE TIN |
| Contact completed and terminated | Matte Tin (Sn) |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 18 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 750VAC V |
| Durability | 200 Cycles |
| maximum insertion force | .3892 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e3 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.089 inch |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 6 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.286 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED KEY |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.098 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 40 |
| Evacuation force-minimum value | .139 N |
| Base Number Matches | 1 |
