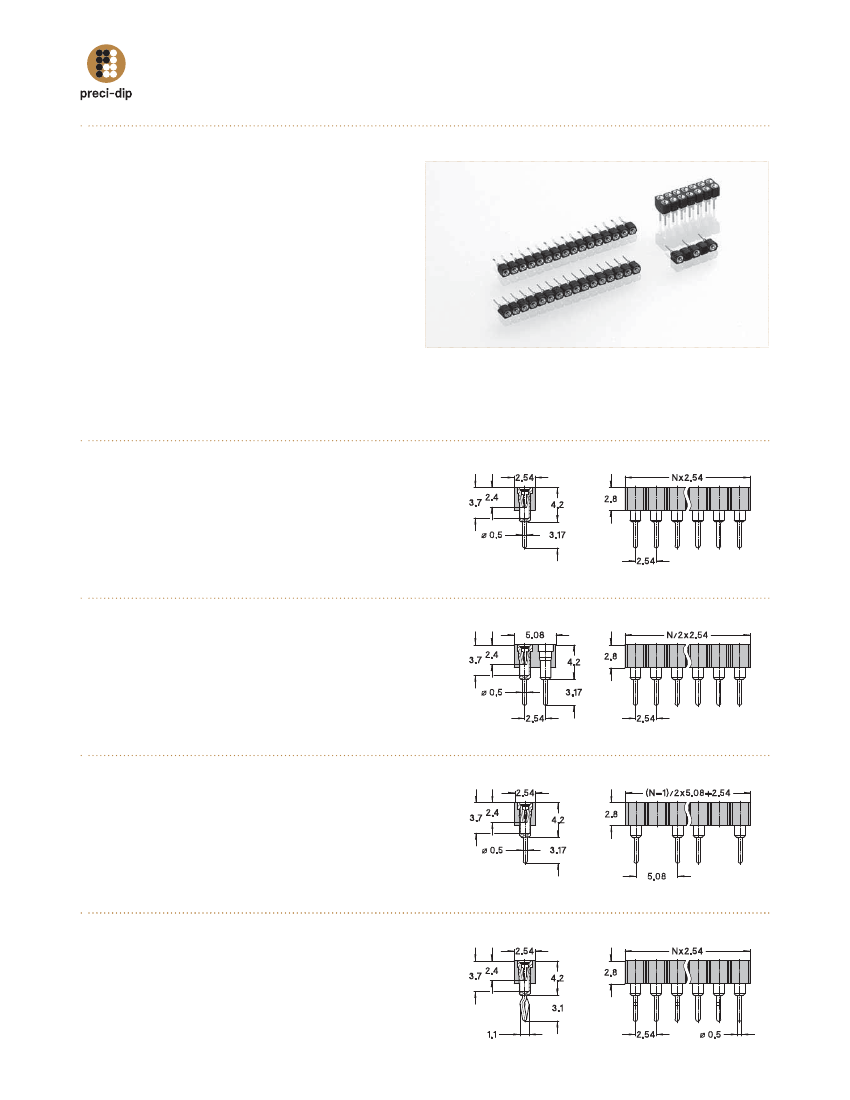

SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.47 mm / SINGLE ROW / DOUBLE ROW / SOLDER TAIL
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Socket connector strips, solder tail.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
FL AMMABILIT Y
SLEEVE
CONTACT CLIP (4 FINGER)
MATING PIN Ø
FORCES
MECHANICAL LIFE
RATED CURRENT
CONTACT RESISTANCE
DIELECTRIC STRENGTH
Black glass filled polyester PCT-GF30-FR
UL 94V-O
Brass CuZn36Pb3 (C36000)
Beryllium copper (C17200)
0.40 to 0.56 mm
2 N typ. insertion
1 N typ. withdrawal
(polished steel gauge Ø 0.43 mm)
Min. 500 cycles
3A
Max. 10 m
Min. 1’000 V
RMS
For corresponding pin connectors, see pages 101-108.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87
83
Tin
Tin
Flash gold
0.75 μm gold
Other plating on request (see page 178 for plating specs).
NN number of poles.
Replace
NN
with the requested number of poles,
e.g. 410-83-2NN-41-001101 for a double row version with 16 pins
becomes 410-83-216-41-001101.
310-PP-1NN-41-001101
Straight socket connector height 4.2 mm, solder tail, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
410-PP-2NN-41-001101
Straight socket connector height 4.2 mm, solder tail, double row
AVAIL ABILIT Y FROM
4 to 72 contacts
(standard number of contacts: 72)
310-PP-1YY-01-609101
Straight socket connector height 4.2 mm, solder tail, single row,
partially equipped 5.08 mm
AVAIL ABILIT Y FROM
2 to 32 contacts
YY number of poles:
please consult for ordering code
310-PP-1NN-01-666101
Straight socket connector height 4.2 mm, with clinched (right/left)
solder tails, single row
AVAIL ABILIT Y FROM
3 to 64 contacts
(standard number of contacts: 64)
70
Due to technical progress, all information provided is subject to change without prior notice.
