KYW35A05: Description35 A, 400 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size173KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KYW35A05 Overview

35 A, 400 V, SILICON, RECTIFIER DIODE

KYW35A05 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
package instruction	ROHS COMPLIANT, METAL, PRESSFIT-1
Contacts	1
Reach Compliance Code	compli
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	O-MUPF-P1
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	400 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	35 A
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
surface mount	NO
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

KYW 35A05 ... KYW 35A6

KYW 35K05 ... KYW 35K6

Silicon Press-Fit-Diodes

Silizium-Einpreßdioden

Nominal current – Nennstrom

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

Metal press-fit case with glass seal

Metall-Einpreßgehäuse mit Glasdurchführung

Weight approx.

Gewicht ca.

Dimensions / Maße in mm

35 A

50…600 V

10 g

Standard packaging: bulk

Standard Lieferform: lose im Karton

Maximum ratings

Type / Typ

Wire to / Draht an

Anode

Cathode

KYW 35A05

KYW 35A1

KYW 35A2

KYW 35A3

KYW 35A4

KYW 35A6

KYW 35K05

KYW 35K1

KYW 35K2

KYW 35K3

KYW 35K4

KYW 35K6

Repetitive peak reverse voltage

Periodische Spitzensperrspanng.

V

RRM

[V]

50

100

200

300

400

600

T

C

= 100

/

C

f > 15 Hz

T

A

= 25

/

C

T

A

= 25

/

C

Grenzwerte

Surge peak reverse voltage

Stoßspitzensperrspannung

V

RSM

[V]

60

120

240

360

480

700

Max. average forward rectified current, R-load

Dauergrenzstrom in Einwegschaltung mit R-Last

Repetitive peak forward current

Periodischer Spitzenstrom

Peak forward surge current, 50 / 60 Hz half sine-wave

Stoßstrom für eine 50 / 60 Hz Sinus-Halbwelle

Rating for fusing, t <10 ms

Grenzlastintegral, t <10 ms

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Maximum pressure – Maximaler Einpreßdruck

1

I

FAV

I

FRM

I

FSM

i

2

t

T

j

T

S

35 A

110 A

1

)

360 / 400 A

660 A

2

s

– 50...+175

/

C

– 50...+175

/

C

7 kN

84

) Max. case temperature T

C

= 150

/

C – Max. Gehäusetemperatur T

C

= 150

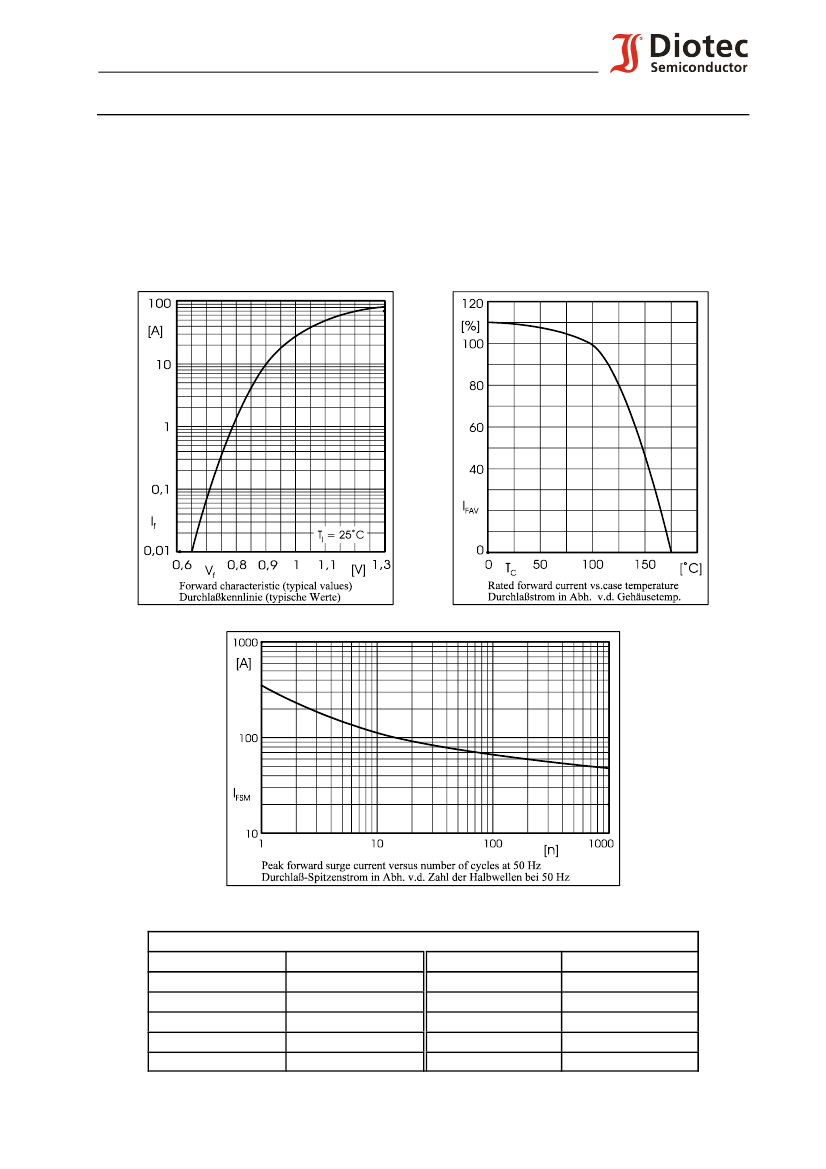

28.02.2002
