ULTRA MINIATURE CERAMIC GLASS SEALED SMD CRYSTAL
ABM8G
• Low in height; suitable for thin equipment
• Glass sealed package assures high reliability
and high temperature operation
• Tight tolerance and stability available
• IR reflow capable
• Low cost version of ABM8 crystal
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
O p e r a t i on M o d e
Operating Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Stability over the Operating
Temperature
( ref. to +25°C)
Pb in glass exemption 7 (c)-I per
RoHS/RoHS II Compliant
RoHS II 2011/65/EU Annex
3.2 x 2.5 x 1.0mm
Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
FEATURES:
• High density applications.
• Modems, communication and test equipment.
• PMCIA, wireless applications
APPLICATIONS:
Minimum
12.000
Typical
Fundamental
Maximum
50.000
+60
+85
+50
+50
120
80
60
50
5.0
Units
MHz
ºC
ºC
ppm
ppm
Notes
-10
-40
-50
-50
See options
See options
See options
12.000MHz
12.001MHz ~ 20.000MHz
20.001MHz ~ 28.000MHz
28.001MHz ~ 50.000MHz
See options
First year
@ 100Vdc ± 15V
Equivalent series resistance
Shunt capacitance (C0)
Load capacita nce (CL)
Drive Level
Aging@25°C±3°C
Insulation Resistance
Ω
pF
pF
µW
ppm
MΩ
10
10
500
100
±3
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ABM8G -
MHz -
-
-
-
-
-
Packaging
Blank: Bulk
T: Tape & Reel
(1k pcs /reel)
T3: Tape & Reel
(3k pcs /reel)
Freq. Stability
U*: ± 10 ppm
G**: ± 15 ppm
X: ± 20 ppm
W: ± 25 ppm
Y: ± 30 ppm
H: ± 35 ppm
Q: ± 100 ppm
Frequency in MHz
Please specify the
frequency in MHz.
e.g. 14.31818MHz
Load Capacitance
(pF)
Please specify CL in
pF or S for series.
(Minimum 7pF)
Please contact
Abracon for values
under 10pF
Custom ESR
if other than
standard
R□
□: Specify a
value in Ω
(e.g.: R40)
Operating Temp.
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
Freq. Tolerance
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
* -10 ~ 60°C only. Contact Abracon for tighter freq. stability.
** -10 ~ 60°C option E, B, C, N only.
ABRACON IS
ISO 9001 : 2008
ISO 9001 / QS 9000
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 08.13.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
ULTRA MINIATURE CERAMIC GLASS SEALED SMD CRYSTAL
ABM8G

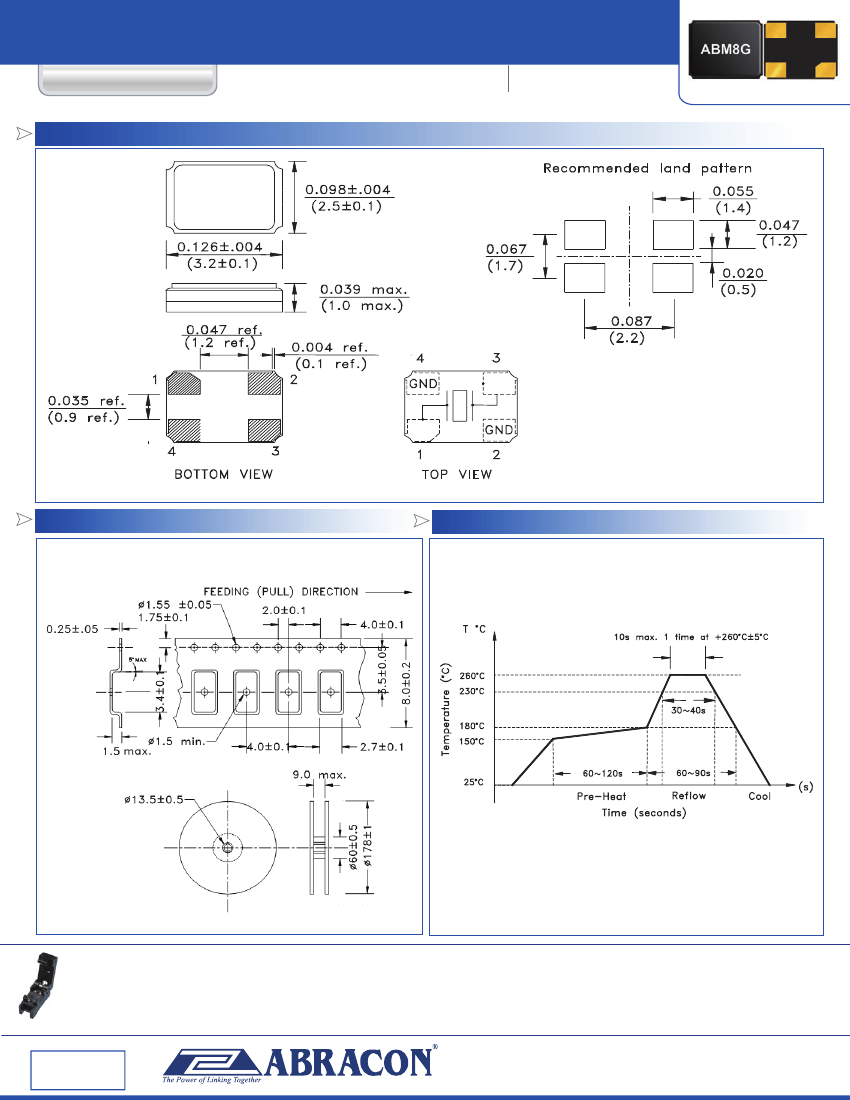

OUTLINE DRAWING:
Pb in glass exemption 7 (c)-I per
RoHS/RoHS II Compliant
RoHS II 2011/65/EU Annex
3.2 x 2.5 x 1.0mm
Note: Due to the availability of raw materials,
this part may be manufactured with the
chamfer on pin 4. Be advised that this does
not affect the electrical characteristics of
the crystal in any way.
Per the Top Marking from left to right, Pin 1 is
always located on the bottom left.
Dimensions: Inch (mm)
TAPE & REEL:
Tape and reel (1,000pcs/reel)
Tape and reel (3,000pcs/reel)
REFLOW PROFILE:
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for
Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not
-
specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application
requiring high reliability where component failure could result in loss of life and/or property. For applications
requiring high reliability and/or presenting an extreme operating environment, written consent and authoriza-
tion from Abracon Corporation is required. Please contact Abracon Corporation for more information.
Need a test socket for the ABM8G Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here.
ABRACON IS
ISO 9001 : 2008
ISO 9001 / QS 9000
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 08.13.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
