32F8003-CN datasheet, PDF - EEWORLD Datasheet

32F8003-CN: DescriptionContinuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16; CategoryAnalog mixed-signal IC filter; File Size262KB，10 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

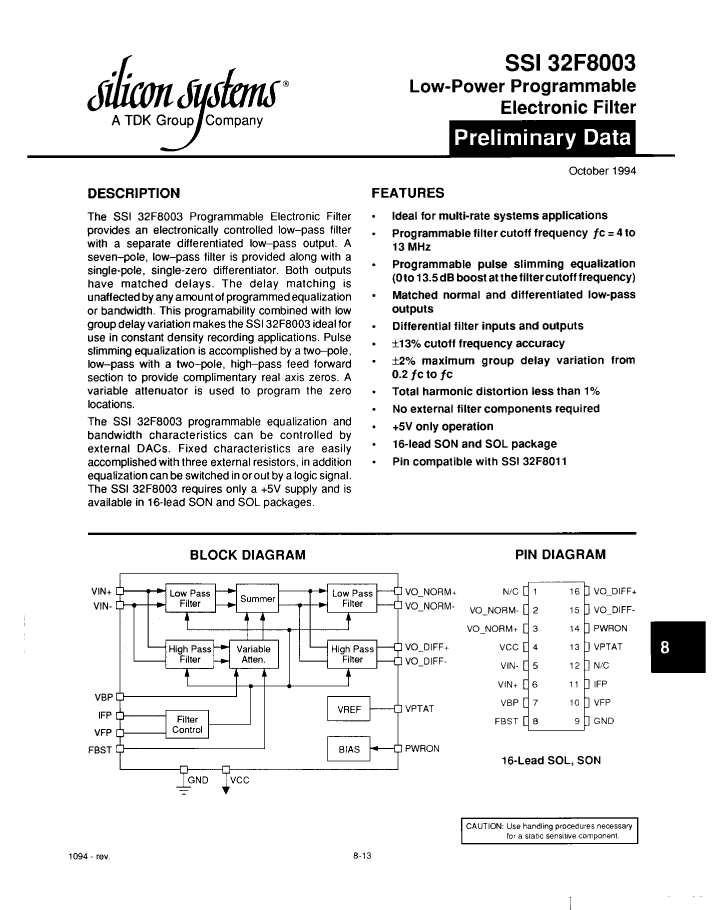

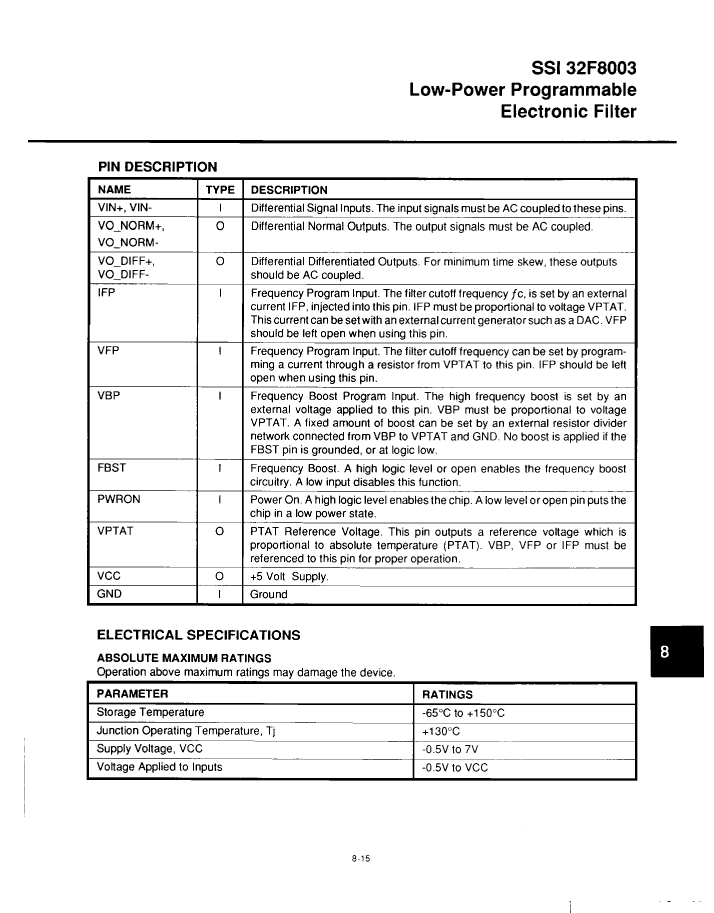

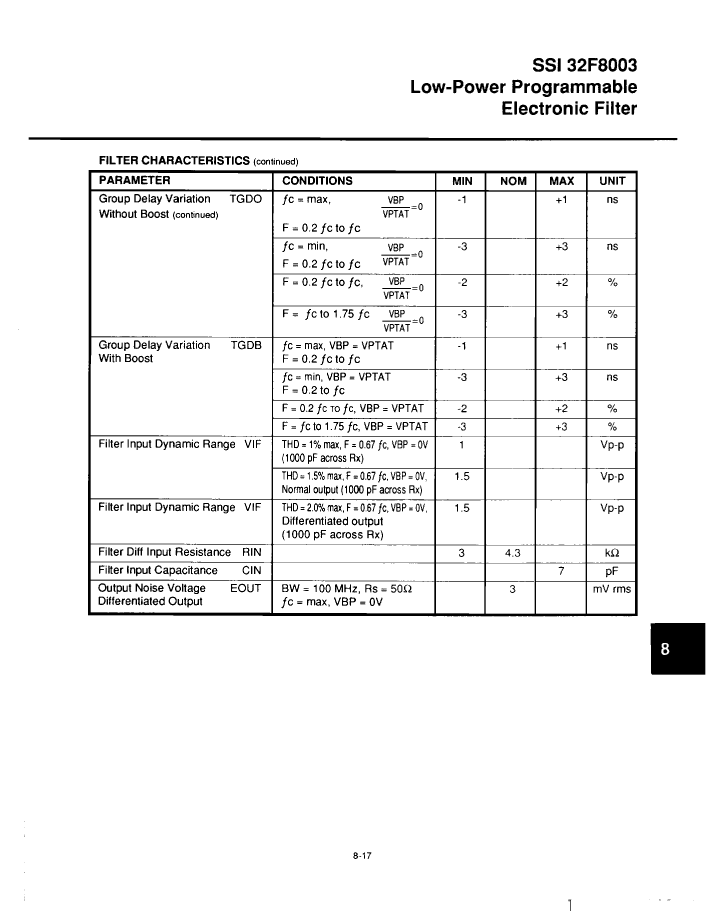

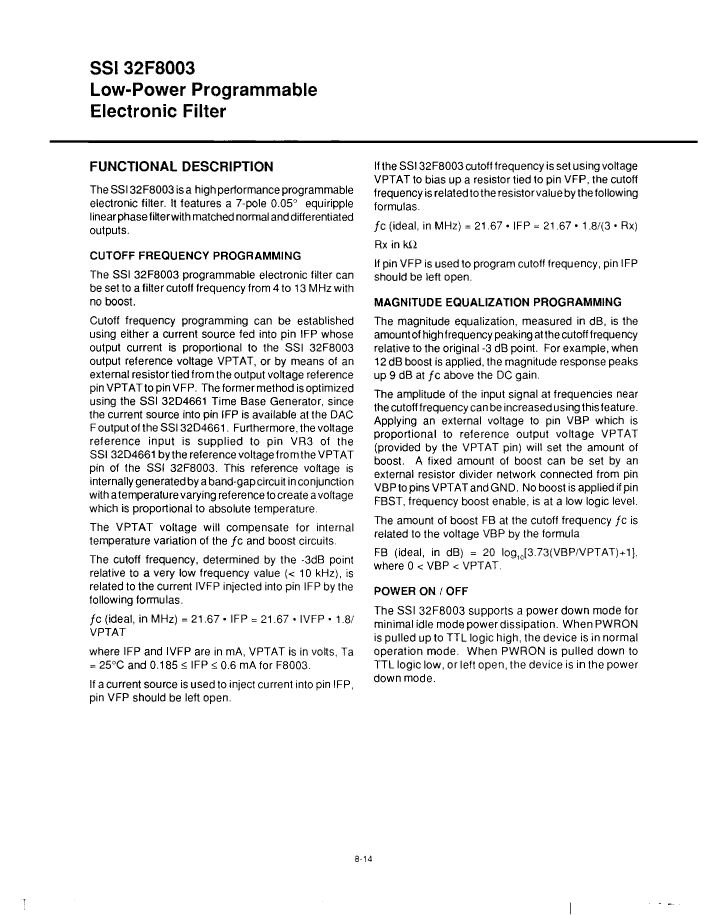

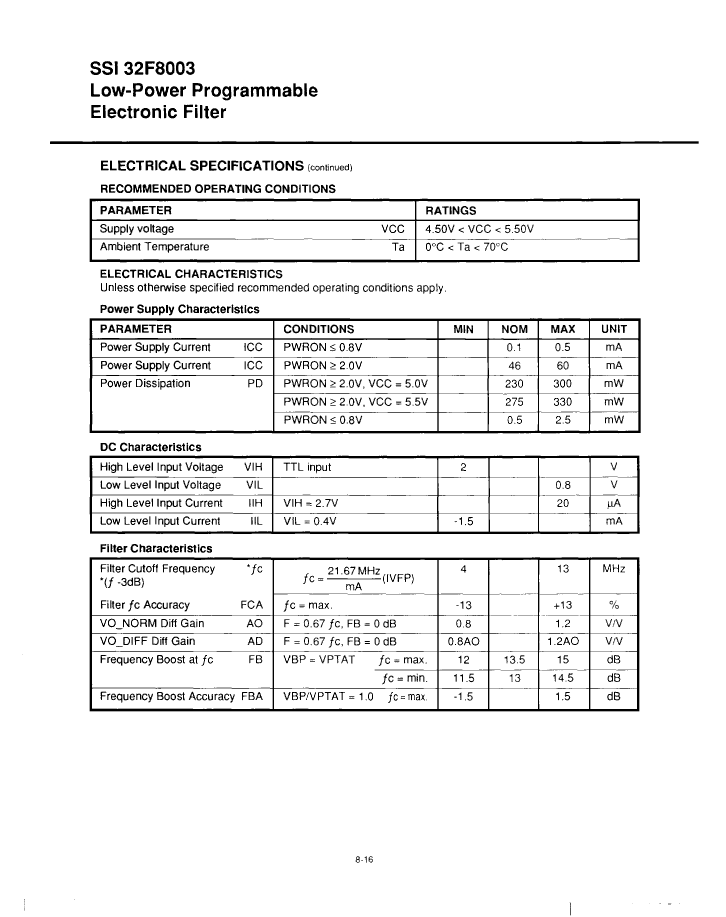

32F8003-CN Overview

Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Active filter type	CONTINUOUS TIME FILTER
Other features	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR
Center frequency or cutoff frequency maximum range	13000 kHz
Center frequency or cutoff frequency minimum range	4000 kHz
JESD-30 code	R-PDSO-G16
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
poles and zeros	7 AND 0
Certification status	Not Qualified
response	LOWPASS
Maximum supply current (Isup)	60 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
transfer characteristics	BESSEL
Base Number Matches	1

	32F8003-CN	32F8003-CL
Description	Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16	Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Active filter type	CONTINUOUS TIME FILTER	CONTINUOUS TIME FILTER
Other features	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR
Center frequency or cutoff frequency maximum range	13000 kHz	13000 kHz
Center frequency or cutoff frequency minimum range	4000 kHz	4000 kHz
JESD-30 code	R-PDSO-G16	R-PDSO-G16
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
poles and zeros	7 AND 0	7 AND 0
Certification status	Not Qualified	Not Qualified
response	LOWPASS	LOWPASS
Maximum supply current (Isup)	60 mA	60 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transfer characteristics	BESSEL	BESSEL
Base Number Matches	1	1
