32F8011-CL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 32F8011-CL

32F8011-CL: DescriptionContinuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16; CategoryAnalog mixed-signal IC filter; File Size426KB，12 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

32F8011-CL Overview

Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16

32F8011-CL Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Active filter type	CONTINUOUS TIME FILTER
Other features	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR
Center frequency or cutoff frequency maximum range	13000 kHz
Center frequency or cutoff frequency minimum range	5000 kHz
JESD-30 code	R-PDSO-G16
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
poles and zeros	7 AND 0
Certification status	Not Qualified
response	LOWPASS
Maximum supply current (Isup)	80 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
transfer characteristics	BESSEL
Base Number Matches	1

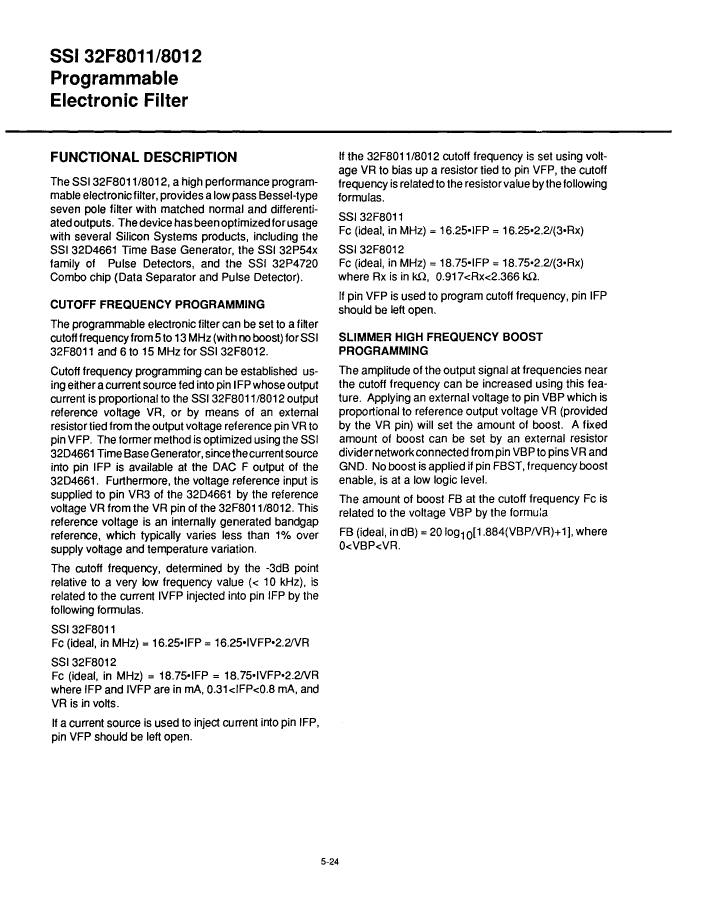

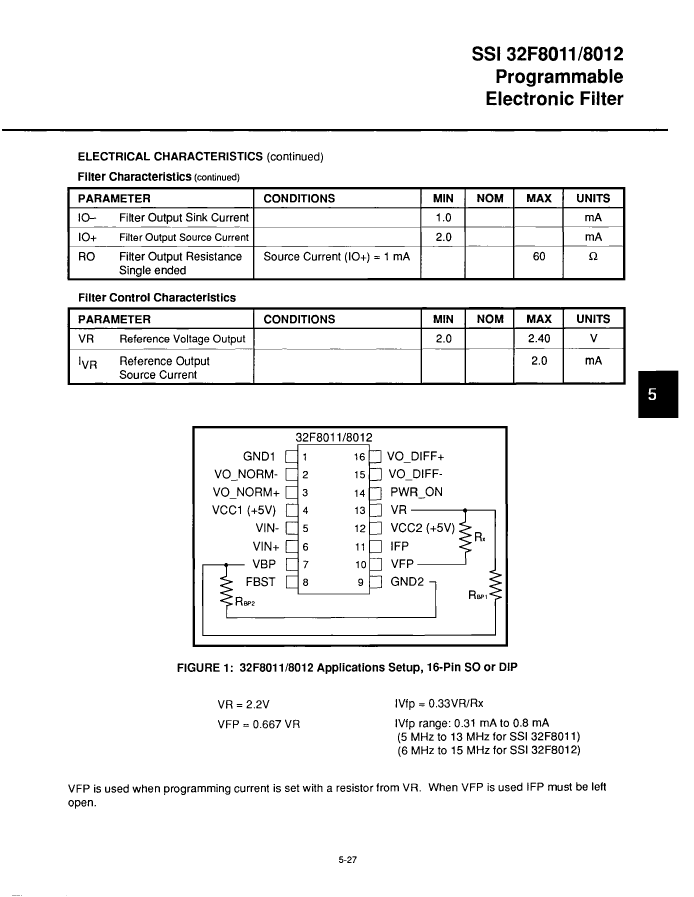

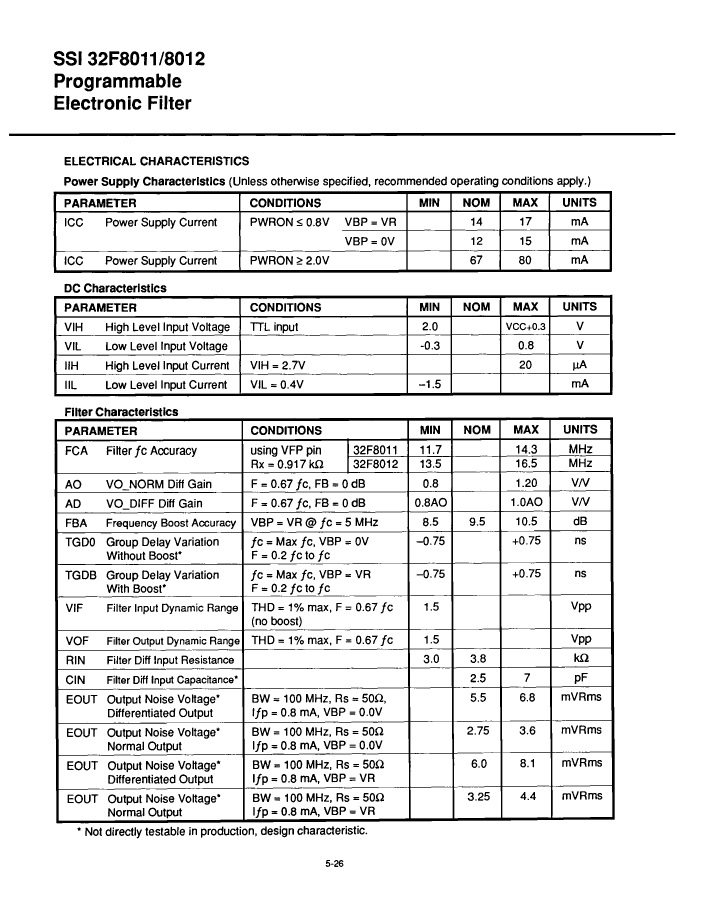

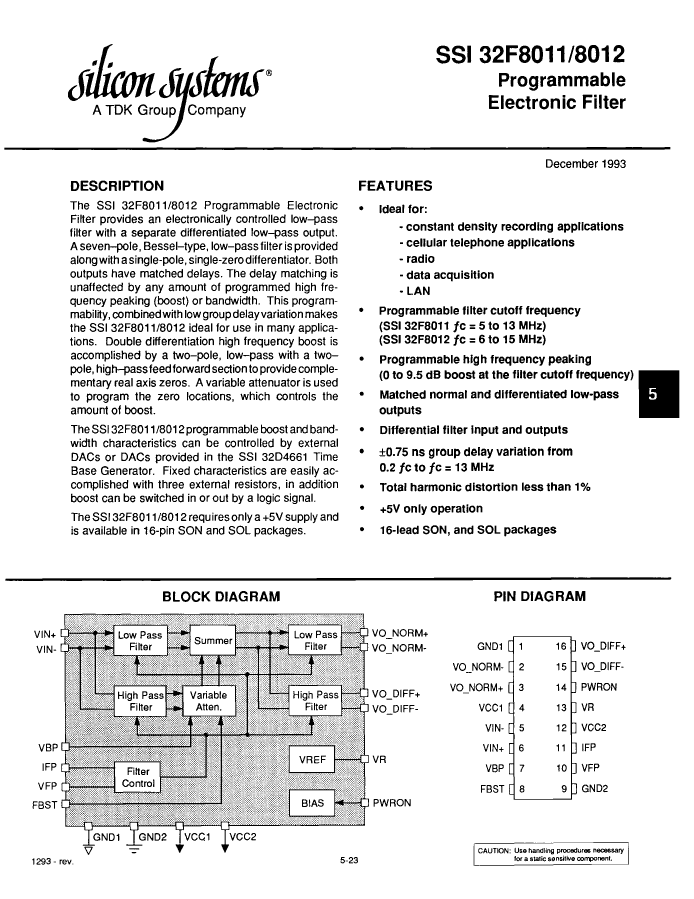

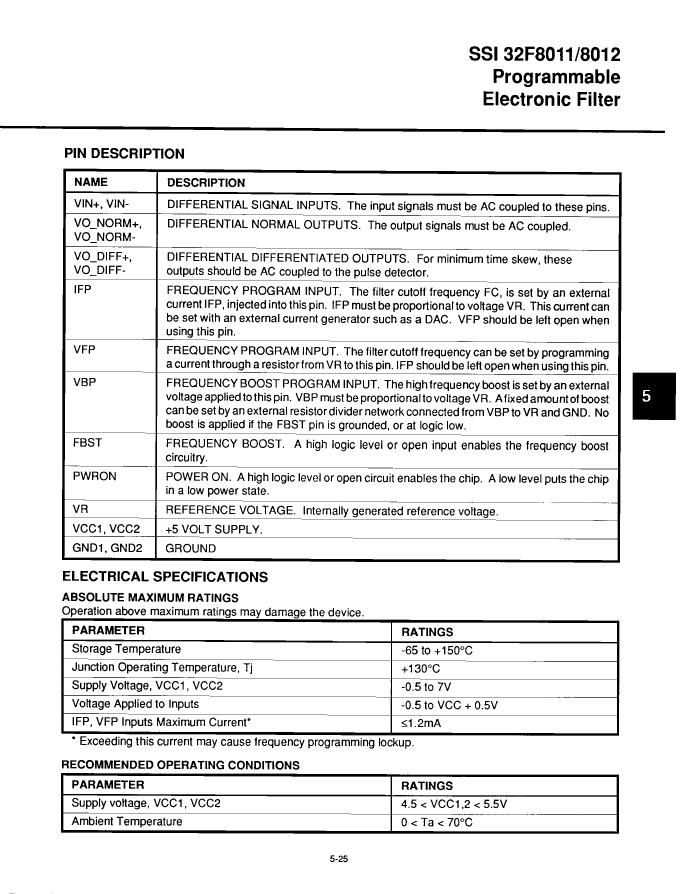

Preview

Download Datasheet

View All

32F8011-CL Related Products

	32F8011-CL	32F8011-CN	32F8012-CL	32F8012-CN
Description	Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16	Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16	Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16	Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Active filter type	CONTINUOUS TIME FILTER	CONTINUOUS TIME FILTER	CONTINUOUS TIME FILTER	CONTINUOUS TIME FILTER
Other features	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR	ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR
Center frequency or cutoff frequency maximum range	13000 kHz	13000 kHz	15000 kHz	15000 kHz
Center frequency or cutoff frequency minimum range	5000 kHz	5000 kHz	6000 kHz	6000 kHz
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
poles and zeros	7 AND 0	7 AND 0	7 AND 0	7 AND 0
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
response	LOWPASS	LOWPASS	LOWPASS	LOWPASS
Maximum supply current (Isup)	80 mA	80 mA	80 mA	80 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
transfer characteristics	BESSEL	BESSEL	BESSEL	BESSEL
Base Number Matches	1	1	1	1
