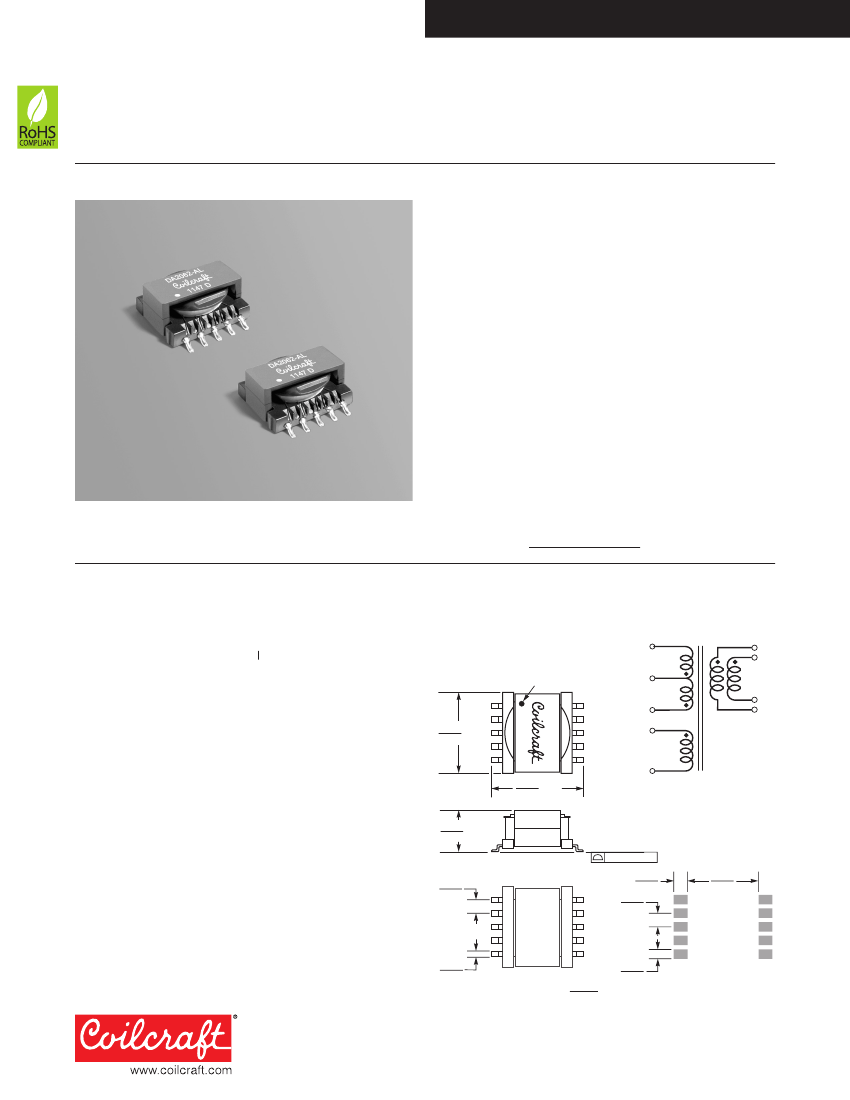

Document 500
Flyback Transformer
For DC-DC converters based on
Power Integrations DPA423G
• Designed in accordance with Power Integrations Engineering
Prototype Report EPR-86
• Operates in continuous conduction mode with 36 – 57 V input
• 1500 Vrms isolation between primary and secondary
Core material
Ferrite
Terminations
RoHS tin-silver over tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight
2.4 g
Ambient temperature
–40°C to +125°C
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Packaging
400 per 13″ reel Plastic tape: 32 mm wide, 0.4 mm thick,
20 mm pocket spacing, 7.6 mm pocket depth
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf
Part
number
1
DA2062-AL_
Inductance
at 0 Adc
2
±10% (µH)
120
Inductance
Leakage
at
Ipk
3
DCR max
inductance
4
min (µH)
(Ohms)
max (µH)
97
0.475 (pins 3 – 1)
3.0
0.013 (pins 9 – 6)
0.013 (pins 10 – 7)
0.181 (pins 4 – 5)
Turns ratios
5
pri : sec pri : bias
1 : 0.1
1 : 0.4
Ipk
3
(A)
0.64
Secondary
output
3.3 V, 2 A
1. When ordering, please specify a
packaging
code:
DA2062-ALD
Packaging: D
= 13″ machine ready reel. EIA-481 embossed plastic
tape (400 per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
2. Inductance is for the primary, measured at 375 kHz, 0.6 Vrms, 0 Adc.
3. Peak primary current drawn at minimum input voltage.
4. Leakage inductance is for the primary and is measured with secondary
windings shorted.
5. Turns ratio is with the secondary windings connected in parallel.
7. Output of the secondary is with the windings connected in parallel. Bias
winding output is 14 V.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Parts manufactured prior
to November 2011 may
be marked differently.
Dot indicates pin 1
1
10
1
½ Pri
2
9
10
Sec
7
6
½ Pri
3
4
DA2062-AL
XXXXY
0.585 max
14,86
5
Bias
6
5
0.660 max
16,76
0.300 max
7,62
Secondary windings to be
connected in parallel on
PC board
0.004 / 0,10
0.098
2,50
0.098
2,50
0.098
2,50
Recommended
Land Pattern
0.512
13,00
1
10
5
6
0.029
0,74
1
10
Dimensions are in
inches
mm
0.069
1,75
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 500
Revised 11/29/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
