T520B476M006AHE070 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> T520B476M006AHE070

Preview

T520B476M006AHE070: DescriptionTantalum Capacitors - Polymer SMD 47uF 6.3 Volts 20% ESR = 70; CategoryPassive components capacitor; File Size70KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T520B476M006AHE070 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T520B476M006AHE070	-	-	View	Buy Now

T520B476M006AHE070 Overview

Tantalum Capacitors - Polymer SMD 47uF 6.3 Volts 20% ESR = 70

T520B476M006AHE070 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	CHIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
capacitance	47 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	70 mΩ
high	1.9 mm
JESD-609 code	e0
leakage current	0.03 mA
length	3.5 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED/PUNCHED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	1300 mA
size code	1411
surface mount	YES
Delta tangent	0.08
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	J BEND
width	2.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

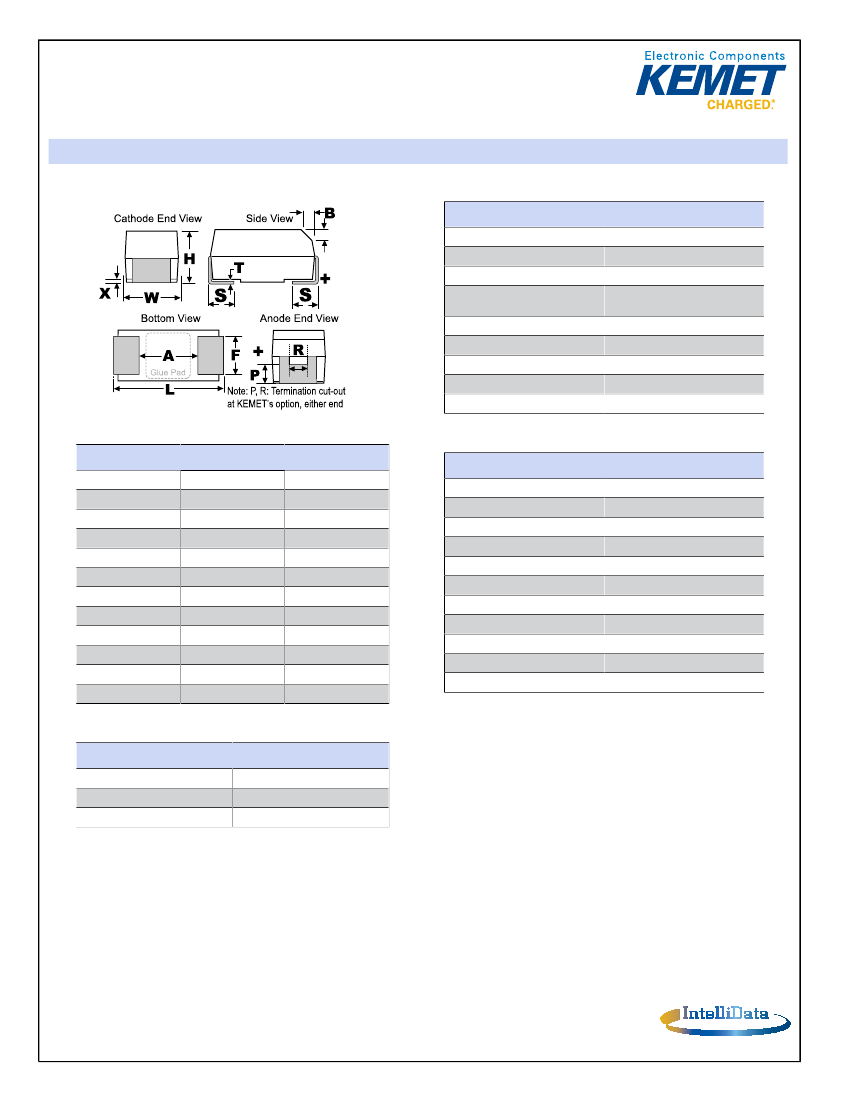

KEMET Part Number: T520B476M006AHE070

Capacitor, Tantalum, SMD, Polymer, Molded, Low ESR, Non-Combustible, 47 uF, 3528, +/-20% Tol, -55/+105C, 6.3 VDC (105C)

General Information

Supplier:

Application:

Sub Application:

Part Type Description:

Construction:

Body Type:

Footprint:

Weight:

RoHS:

KEMET

Low ESR

(NonCombustibleCathode)

SMD, Polymer, Molded, Low

ESR, Non-Combustible

Standard Chip-Polymer

SMD Chip

3528

94.85 mg

No

Symbol

L

W

H

F

S

B

X

P

R

T

A

Dimensions (mm)

Dimension

3.5

2.8

1.9

2.2

0.8

0.4

0.1

0.5

1

0.13

1.9

Tolerance

+/-0.2

+/-0.1

+/-0.3

+/-0.15

+/-0.1

REF

MIN

Specifications

Capacitance:

Tolerance:

Voltage:

Temperature Range:

Current/Ripple Current:

Resistance/ESR:

Failure Rate:

Leakage Current:

Dissipation Factor:

47 uF

+/-20%

6.3 VDC (105C)

-55/+105C

1300 mAmps (100kHz 45C)

910 mAmps (85C)

617.5 mAmps (105C)

70 mOhms (100kHz 25C)

N/A

29.6 uA

8%

Packaging Specifications

Package Kind:

Package Size:

Package Quantity:

T&R

7 in/180 mm

2000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.
