P1812-153K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> P1812-153K

P1812-153K: DescriptionFixed Inductors 15uH 10%; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

P1812-153K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P1812-153K	-	-	View	Buy Now

P1812-153K Overview

Fixed Inductors 15uH 10%

P1812-153K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	1812
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1812
structure	Rectangular
core material	Ferrite
DC Resistance	0.78 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	3.4 mm
Package length	4.83 mm
Package form	SMT
Package width	3.4 mm
method of packing	TR, 13 Inch
Maximum rated current	0.45 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

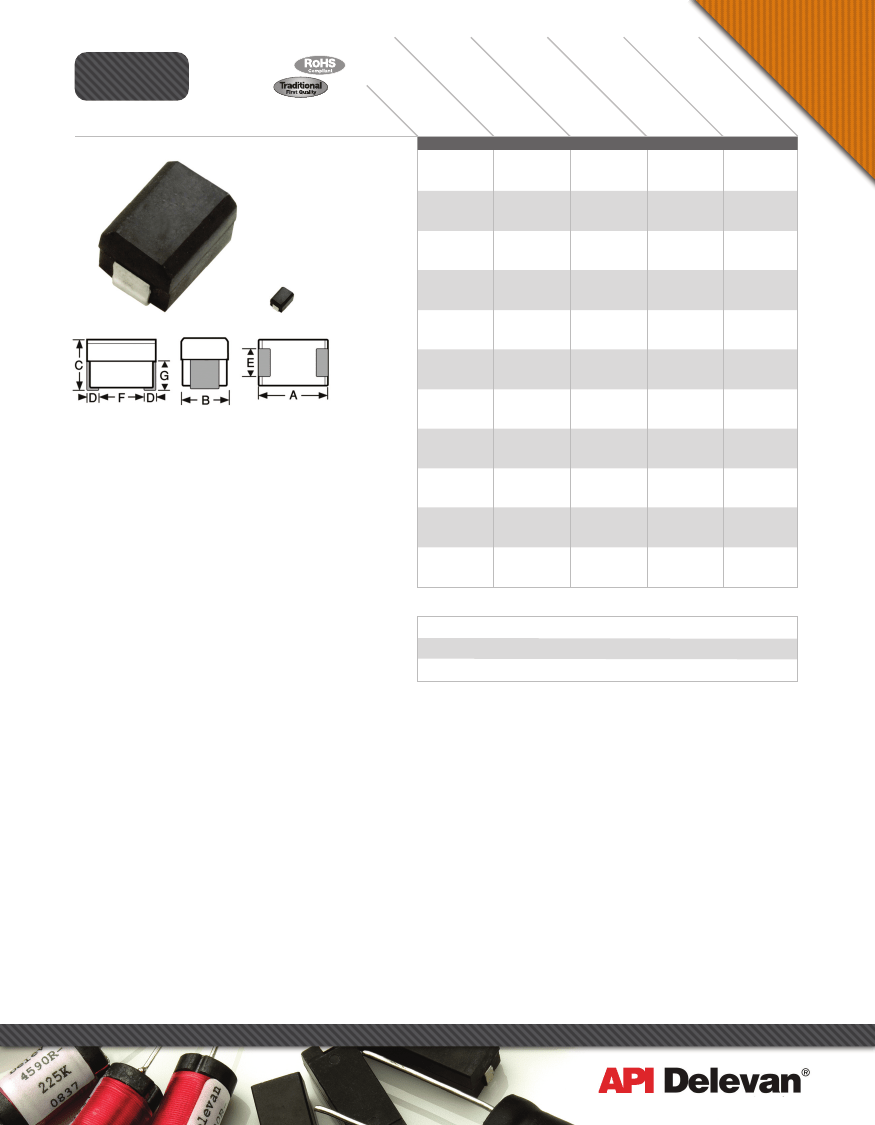

Preview

Download Datasheet

View All

SERIES

P1812R

P1812

EN C)

EM A D

CR m

IN NT (

TI )

RA C

T D

EN (mA

RR M

CU IMU

AN )

ST S

SI HM

RE M (O

DC MU

(µ

CE kHz

AN 1

CT @

DU 0%

IN ±1

Surface Mount Power Inductors

Actual Size

Physical Parameters

Inches

Millimeters

0.166 to 0.190

4.22 to 4.83

0.118 to 0.134

3.00 to 3.40

0.118 to 0.134

3.00 to 3.40

0.015 Min.

0.38 Min.

0.054 to 0.078

1.37 to 1.98

0.118 (Ref. only)

3.00 (Ref. only)

0.066 (Ref. only)

1.68 (Ref. only)

Dimensions “A” and “C” are over terminals

Operating Temperature Range

–55°C to +125°C

Current Rating at 90°C Ambient

35°C Rise

Maximum Power Dissipation at 90°C

0.278 W

Inductance

Measured at 1V with no DC current

Incremental Current

The current at which the inductance

will be decreased by a maximum of 5% from its initial zero

DC value.

Marking

DELEVAN; Inductance; Date/Lot Code

(YYWWL). Note: An R before the date code indicates a

RoHS component, a P after inductance indicates Power.

Example: P1812-182K

DELEVAN

180 uH P

R 1328A

Packaging

Tape & reel (12mm): 7" reel, 650 pieces max.;

13" reel, 2500 pieces max.

Made In the U.S.A.

-102K

-122K

-152K

-182K

-222K

-272K

-332K

-392K

-472K

-562K

-682K

-822K

-103K

-123K

-153K

-183K

-223K

-273K

-333K

-393K

-473K

-563K

-683K

-823K

-104K

-124K

-154K

-184K

-224K

-274K

-334K

SERIES P1812 FERRITE CORE

1.0

0.113

1050

1.2

0.199

1000

1.5

0.222

950

1.8

0.240

900

2.2

0.268

850

2.7

0.288

800

3.3

0.323

750

3.9

0.347

700

4.7

0.401

650

5.6

0.437

650

6.8

0.472

600

8.2

0.548

600

0.608

550

0.670

550

0.780

450

0.875

400

1.200

370

1.404

330

1.578

300

1.848

280

2.064

260

2.268

240

3.408

220

3.648

200

100

4.320

180

120

6.000

160

150

6.432

140

180

8.400

120

220

9.680

120

270

12.720

100

330

15.240

2400

2158

1980

1828

1697

1513

1397

1250

1131

1060

990

871

772

752

693

614

515

465

425

376

366

336

297

267

238

208

183

158

143

129

118

Optional Tolerances: J = 5% H = 3% G = 2%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
