IHLW5050CEERR22M01

Description
Fixed Inductors .22uH 20% upto 2MHz
CategoryPassive components    inductor
File Size172KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

IHLW5050CEERR22M01 Online Shopping

Suppliers Part Number Price MOQ In stock
IHLW5050CEERR22M01 - - View Buy Now

IHLW5050CEERR22M01 Overview

Fixed Inductors .22uH 20% upto 2MHz

IHLW5050CEERR22M01 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction5050
Reach Compliance Codeunknown
ECCN codeEAR99
Samacsys DescriptionVishay IHLW5050CE-01 Series Type 5050 Shielded Wire-wound SMD Inductor 220 nH ±20% Wire-Wound 65A Idc
uppercase and lowercase codes5050
structureChip
core materialCOMPOSITE
DC Resistance0.0013 Ω
Nominal inductance(L)0.22 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberIHLW-5050CE-01
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height3.5 mm
Package length12.7 mm
Package formSMT
Package width12.7 mm
method of packingTR
Maximum rated current38.5 A
seriesIHLW-5050CE-01
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeFLAT
Test frequency0.1 MHz
Tolerance20%
IHLW-5050CE-01
www.vishay.com
Vishay Dale

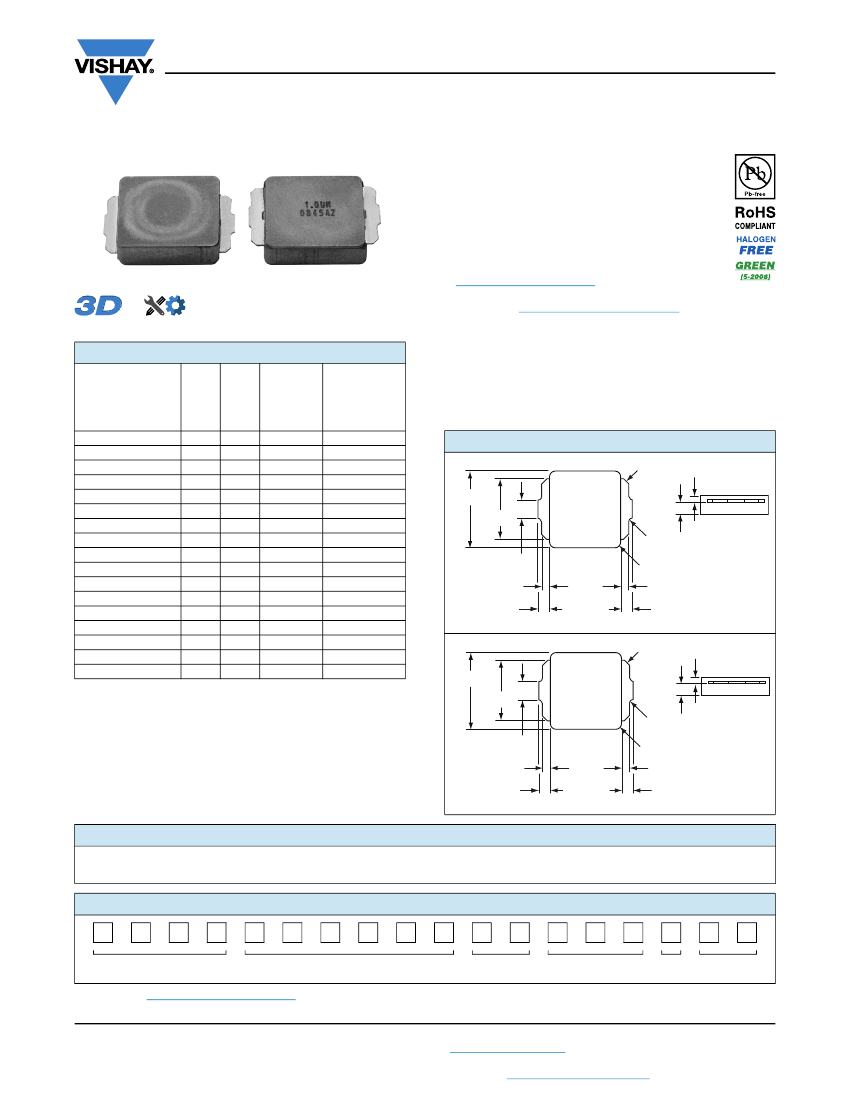

Low Profile, High Current Inductors - Winged Terminals
FEATURES
Shielded construction
Frequency range up to 5.0 MHz
Lowest DCR/μH, in this package size
Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite
construction
• IHLP design. PATENT(S):
www.vishay.com/patents
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
Design Tools
Available
APPLICATIONS
HEAT
RATING SATURATION
DCR
MAX. CURRENT
CURRENT
25 °C DC TYP.
DC TYP.
(3)
(A)
(m)
(A)
(4)
0.96
1.2
1.3
1.5
2
2.5
3
3.5
5.5
7
8
12
15
19
22
28
34
43
41
38.5
36.5
32
28
25
24
19
16.5
16
12
10
9.5
9
8.5
7
84
75
65
62
55
49
44
40
35
30
29
27
24
19
18
16
14
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 % AT 100 kHz,
0.25 V, 0 A
(μH)
0.10
0.15
0.22
0.33
0.47
0.68
0.82
1.0
1.5
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10
DCR
TYP.
25 °C
(m)
0.8
1
1.1
1.3
1.6
2.3
2.6
3.3
5.1
6.5
7.2
11
14.3
18.3
19.8
24.8
30.4
PDA/notebook/desktop/server applications
High current POL converters
Low profile, high current power supplies
Battery powered devices
DC/DC converters in distributed power systems
DC/DC converter for Field Programmable Gate Array (FPGA)
DIMENSIONS
in inches [millimeters]
0.035 [0.889] x 45°
(TYP.)
0.500 ± 0.005
[12.7 ± 0.127]
0.400 ± 0.005
[10.16 ± 0.127]
XXUH
(DATE CODE)
0.0945
[2.40]
MAX.
0.0433
[1.10]
MAX.
0.030 [0.762] R.
(TYP.)
0.185 ± 0.005
[4.70 ± 0.127]
0.053 ± 0.005
[1.346 ± 0.127]
0.080 ± 0.005
[2.032 ± 0.127]
0.500 ± 0.005
[12.7 ± 0.127]
0.040 [1.016] R.
(TYP.)
0.053 ± 0.005
[1.346 ± 0.127]
0.080 ± 0.005
[2.032 ± 0.127]
The diagram above applies to values 0.47 µH and below
0.035 [0.889] x 45°
(TYP.)
0.500 ± 0.005
[12.7 ± 0.127]
0.400 ± 0.005
[10.16 ± 0.127]
Notes
• All test data is referenced to 25 °C ambient
• Operating temperature range -55 °C to +125 °C
• The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application
• Rated operating voltage (across inductor) = 75 V
(1)
DC current (A) that will cause an approximate
T
of 40 °C
(2)
DC current (A) that will cause L to drop approximately 20 %
0
XXUH
(DATE CODE)
0.0945
[2.40]
MAX.
0.0433
[1.10]
MAX.
0.030 [0.762] R.
(TYP.)
0.118 ± 0.005
[3.00 ± 0.127]
0.053 ± 0.005
[1.346 ± 0.127]
0.040 [1.016] R.
(TYP.)
0.053 ± 0.005
[1.346 ± 0.127]
0.500 ± 0.005
[12.7 ± 0.127]
0.080 ± 0.005
[2.032 ± 0.127]
0.080 ± 0.005
[2.032 ± 0.127]
The diagram above applies to values 0.68 µH and above
DESCRIPTION
IHLW-5050CE-01
MODEL
1.0 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NMBER
I
H
L
W
5
0
5
SIZE
0
C
E
E
R
1
R
0
M
TOL.
0
1
PRODUCT FAMILY
PACKAGE
CODE
INDUCTANCE
VALUE
SERIES
PATENT(S):
www.vishay.com/patents
This Vishay product is protected by one or more United States and international patents.
Revision: 20-Oct-17
Document Number: 34262
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
