Surface Mount
Common Mode Choke
R*
-333
-473
-683
-104
-154
-224
-334
-474
-684
-105
-155
-225
-335
-475
SERIES CM6350 FERRITE CORE
33
0.007
5.50
47
0.008
5.00
68
0.010
4.20
100
0.014
3.30
150
0.020
2.70
220
0.027
2.20
330
0.040
1.80
470
0.060
1.50
680
0.090
1.20
1000
0.130
0.90
1500
0.190
0.75
2200
0.300
0.60
3300
0.550
0.40
4700
1.050
0.25
0.20
0.30
0.42
0.55
0.85
1.20
1.80
1.60
2.10
2.80
4.20
6.00
9.00
13.00
*Complete part # must include series # PLUS the dash #
For surface finish information, refer to www.delevanfinishes.com
Actual Size

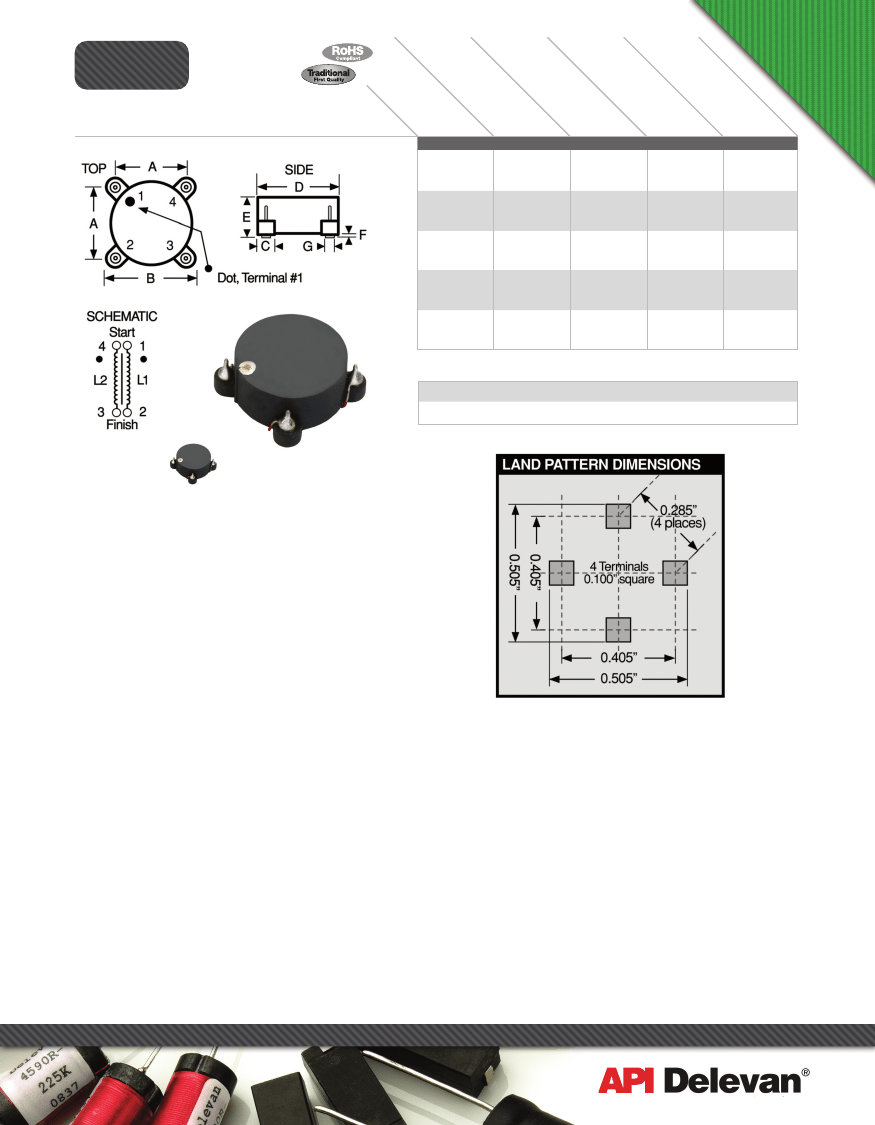

Mechanical Configuration
A flat top surface mount case
with excellent coplanarity of terminals.
Physical Parameters
Inches
A
0.285 ± 0.010
B
0.360 ± 0.010
C
0.060 ± 0.010
D
0.350 ± 0.010
E
0.200 ± 0.010
F
0.025 ± 0.010
G
0.040 (Ref. only)
Millimeters
7.24 ± 0.25
9.14 ± 0.25
1.52 ± 0.25
8.90 ± 0.25
5.08 ± 0.25
0.64 ± 0.25
1.02 (Ref.only)
Electrical Configuration
1) Inductance and DCR in table is for either L1 or L2.
2) Leakage Inductance tested at L1 with L2 shorted or at
L2 with L1 shorted.
3) Windings balanced within 2%
4) Inductance tested @ 10 kHz
Operating Temperature Range
–55°C to +105°C
Electrical Characteristics
Measured at +25°C
Rated RMS Current
Based upon 40°C temperature rise
from 25°C ambient
Maximum Power Dissipation at 25°C
0.400 Watts
Inductance Tolerance
Units are supplied to the tolerance
indicated in the tables @ 10 kHz
Dielectric Withstanding Voltage
500 V RMS, 60Hz
Marking
DELEVAN; CM6350, inductance with units. Note: An R after
CM6350 indicates a RoHS component. A white dot indicates the location
of pin 1.
Example: CM6350-333
DELEVAN
CM6350
33 uH
Packaging
Tape & reel (24mm):
13" reel, 600 pieces max.; 7" reel not available
Bulk option available
Weight (Grams)
1.0 (Ref.)
