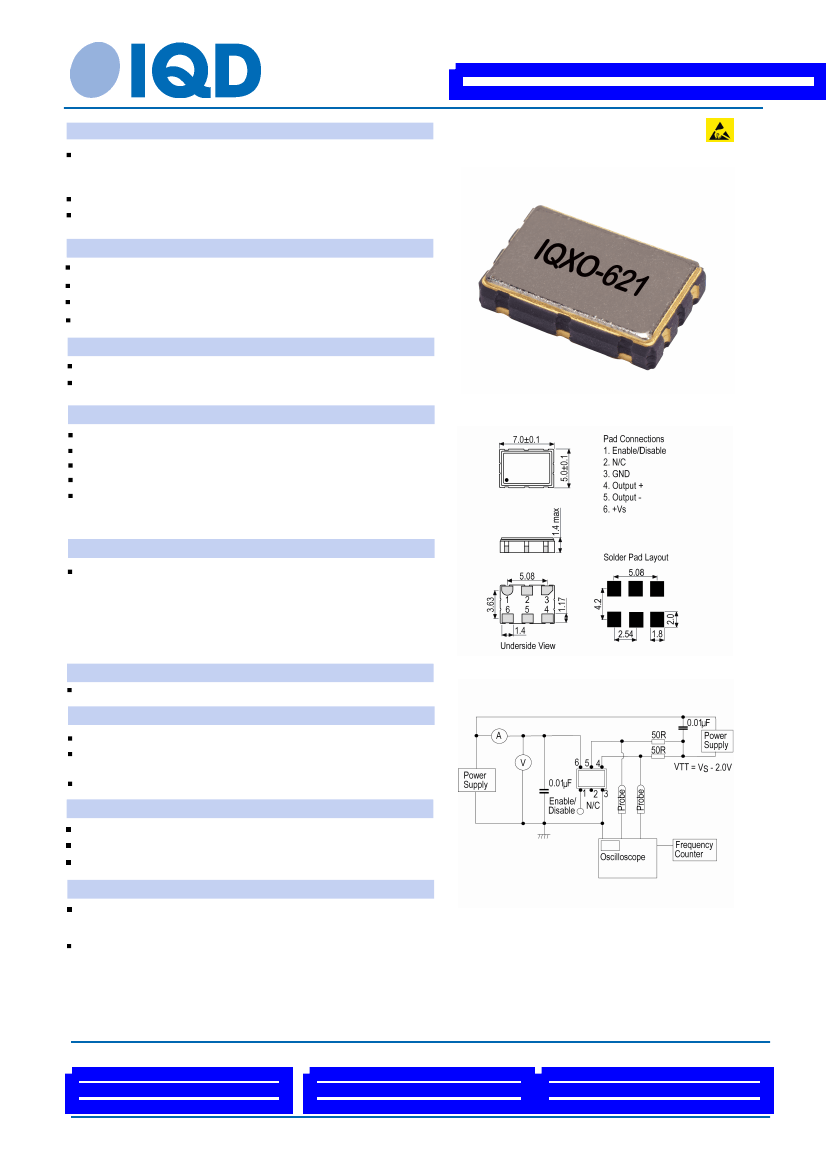

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO053139Reel

Description

LVPECL output crystal oscillator using a high frequency

fundamental crystal to give very low jitter. Hermetically sealed

ceramic package with a seam sealed metal lid.

Model

IQXO-621

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

155.520MHz

±50.00ppm

-40.00 to 85.00°C

±3ppm max per year @ 25°C

Supply Voltage

Current Draw

Output Details

2.5V ±5%

70.00mA

Outline (mm)

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Voltage Levels:

Output Low (VoL): 1.095V max

Output High (VoH): 1.475V min

Output Control

LVPECL

50Ω terminated to Vs-2.0V

0.5ns max

45/55%

Enable/Disable:

Logic ‘1’ (70% Vs min) to pad 1 enables oscillator output.

Logic ‘0’ (30% Vs max) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state.

No connection to pad 1 enables oscillator output.

Standby Current: 10μA max

Noise Parameters

Test Circuit

Phase Jitter (12kHz to 20MHz): 1ps rms max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E: 1000G,

0.5ms, half sine wave.

Vibration: MIL-STD-883, Method 2007, Condition A: 20G

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
