DFK-48-0008: DescriptionCommon Mode Chokes / Filters DFK4 Compen choke 6A Spez; CategoryPassive components inductor; File Size450KB，4 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DFK-48-0008 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DFK-48-0008	-	-	View	Buy Now

DFK-48-0008 Overview

Common Mode Chokes / Filters DFK4 Compen choke 6A Spez

DFK-48-0008 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
DC Resistance	0.02 Ω
Nominal inductance(L)	6000 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	5
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
Maximum rated current	6 A
self resonant frequency	0.2 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	FLEXIBLE LEAD
Tolerance	50%
Base Number Matches	1

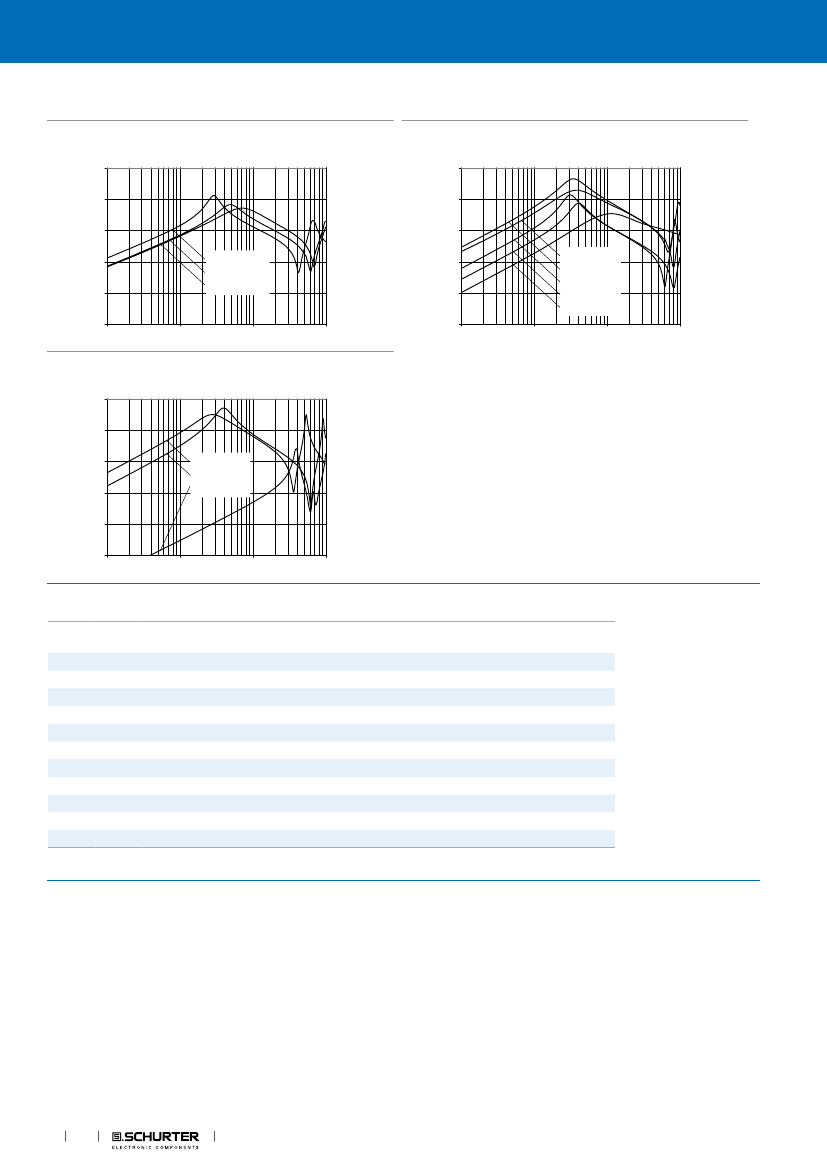

Preview

Download Datasheet

View All

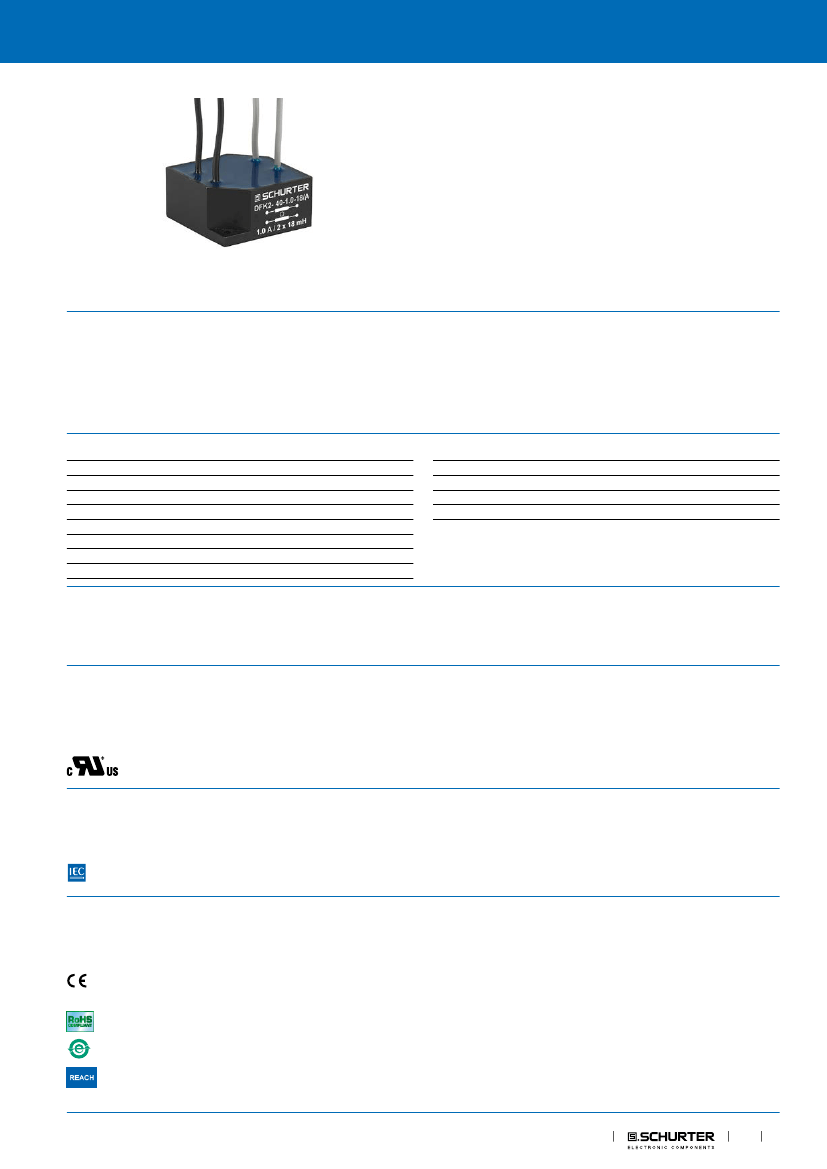

Suppression Chokes

https://www.schurter.com /PG81_82

DFK

Magnetically Compensated Choke, 1- and 3-phase

Approvals and Compliances

Description

Current compensated choke

1- or 3-phase choke

THT terminals or wire leads

Flange for mounting onto printed circuit board

Fully potted resign

Applications

- Attenuation of common mode interferences

- May also be used in direct current applications where magnetic com-

pensation is required

- Designed for 230/400 VAC applications

Weblinks

pdf datasheet, html-datasheet, General Product Information, Distributor-

Stock-Check, Detailed request for product

Technical Data

Rated voltage

Rated Current

Rated inductance

Power Operating Frequency

Terminal Type

Weight

Material: Housing

Sealing Compound

up to 440 VAC

0.5 - 15 A @ Ta 40 °C

1 - 20 mH, Tol. -30% +50%

50 - 400 Hz

THT, Flexible wire

6 - 163 g

UL 94V-0

Test Voltage

Isolation Voltage

Climatic Category

Allowable Operation Temp.

1.8 kV, 50 Hz, 1 min, winding to winding

2 kV eff., winding to ambient

25/100/21 acc. to IEC 60068-1

-25 °C to 100 °C

Approvals and Compliances

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in

Details about

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: DFK

Approval Logo

Certificates

UL Approvals

Certification Body

Description

UL File Number:

Application standards

Application standards where the product can be used

Organization

Design

Designed for applications acc.

Standard

IEC/UL 60950

Description

IEC 60950-1 includes the basic requirements for the safety of information

technologyequipment.

Compliances

The product complies with following Guide Lines

Identification

Details

CE declaration of conformity

Initiator

SCHURTER AG

Description

The CE marking declares that the product complies with the applicable

requirements laid down in the harmonisation of Community legislation on

its affixing in accordance with EU Regulation 765/2008.

EU Directive RoHS 2011/65/EU

The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March

2007. It is similar to the EU directive RoHS.

On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,

Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as

"REACH") entered into force.

RoHS

China RoHS

REACH

SCHURTER AG

EMC Products

DFK-48-0008 Related Products

	DFK-48-0008	DFK-40-0003	DFK-20-0002	DFK-25-0001	DFK-25-0002
Description	Common Mode Chokes / Filters DFK4 Compen choke 6A Spez	Common Mode Chokes / Filters DFK2-40 Compen choke 6A	Common Mode Chokes / Filters DFK2-40 Compen choke 1A	Common Mode Chokes / Filters DFK2-40 Compen choke 1A	Common Mode Chokes / Filters DFK2-40 Compen choke 2A
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	8 weeks	8 weeks	16 weeks	16 weeks	16 weeks
DC Resistance	0.02 Ω	0.027 Ω	0.5 Ω	0.51 Ω	0.25 Ω
Nominal inductance(L)	6000 µH	4000 µH	20000 µH	10000 µH	10000 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3
Number of functions	1	1	1	1	1
Number of terminals	5	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum rated current	6 A	6 A	1 A	1 A	2 A
self resonant frequency	0.2 MHz	0.4 MHz	0.5 MHz	0.5 MHz	0.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	FLEXIBLE LEAD	FLEXIBLE LEAD	FLEXIBLE LEAD	FLEXIBLE LEAD	FLEXIBLE LEAD
Tolerance	50%	50%	50%	50%	50%
Base Number Matches	1	1	1	1	1
