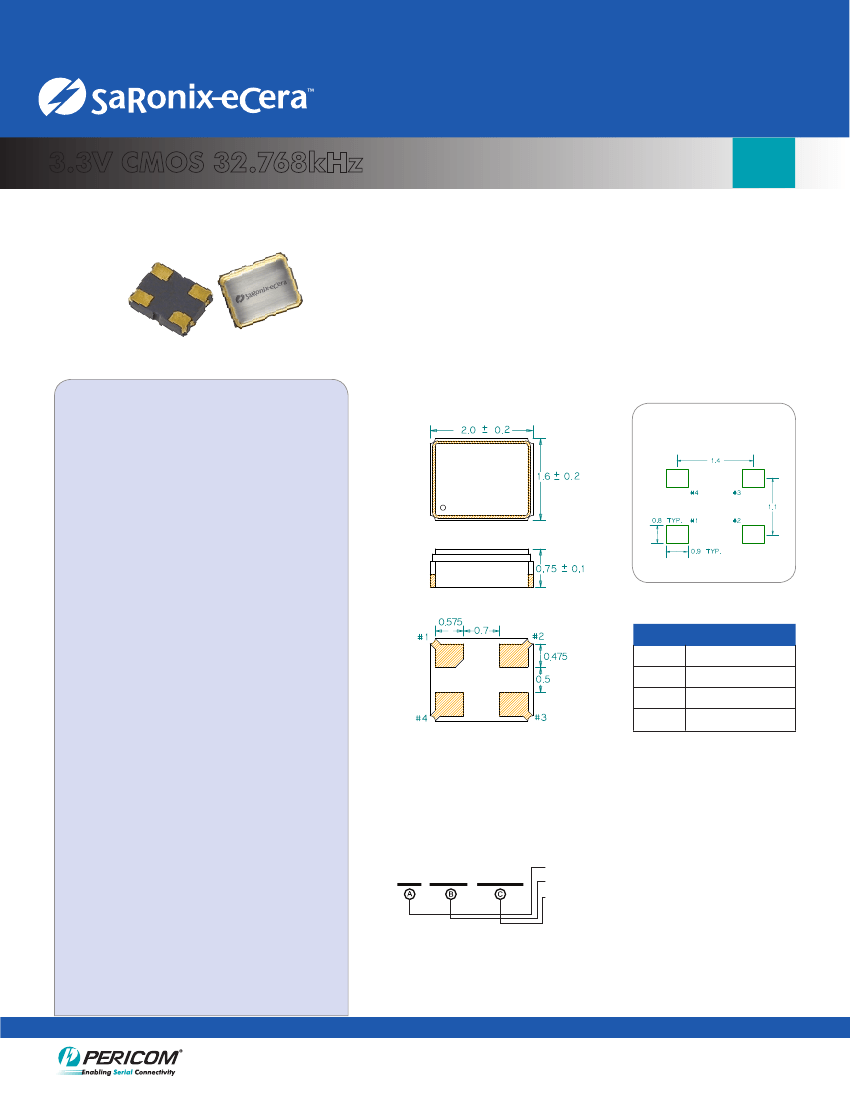

Product Description
The KM Series real time clock oscillator
achieves superb stability over a broad range
of operating conditions. The output clock
signal is compatible with LVCMOS/LVTTL logic
levels. The device, available on tape and reel,
is contained in a 2.0 x 1.6mm surface-mount
ceramic package.
Pin Functions:
Pin
Function
1
2
3
4
OE
Ground
Clock Output
V
DD
Applications
Real-Time Clock Oscillator
Standby clock source
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Part Ordering Information:
KM XXX YYYY
A: Product½Family
B: XXX = Frequency½Code
C: YYYY = Specification½Code
Following the above format, SaRonix-eCera part numbers will be assigned upon
confirmation of exact customer requirements.
SaRonix-eCera™ is a Pericom® Semiconductor company
13-0014
•
US: +1-408-435-0800 TW: +886-3-4518888
•
www.saronix-ecera.com
All specifications are subject to change without notice.
KM 3.3V
REV A
Nov. 26, 2013
1
3.3V CMOS 32.768kHz
KM
KM Series 3.3V CMOS kHz Crystal Oscillator
2.0 x 1.6mm
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output Frequency
Supply Voltage
Supply Current, Output Enabled
Supply Current, Standby Mode
Frequency Stability
Operating Temperature Range
Output Logic 0, V
OL
Output Logic 1, V
OH
Output Load
Duty Cycle
Rise and Fall Time
45
0.9 V
DD
-20
-40
+2.97
32.768
+3.3
60
+3.63
80
10
±20 to ±50
+70
+85
0.1 V
DD
15
55
15
kHz
V
µA
µA
ppm
°C
V
V
pF
%
ns
As specified
Output Hi-Z
See Note 1 below
As specified
As specified
See Note 2 below
measured 50% of V
DD
measured 10/90% of V
DD
Notes:
1. As specified. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance
(25°C), aging (1 year at 25°C average effective ambient temperature), shock and vibration.
2. For specifications other than those listed, please contact sales.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin 1), Output Enable
Input Voltage (pin 1), Output Disable (low power standby)
