NEC's NX8563LA Series is a 1 550 nm Multiple Quantum
Well (MQW) structured Distributed Feed-Back (DFB) laser
diode module with Single Mode Fiber.
It is designed as directly modulation light source and
ideal for optical transmission systems. The device is
available for Dense Wavelength Division Multiplexing
(DWDM) wavelengths based on ITU-T recommendations,
enabling a wide range of applications.
ELECTRO-OPTICAL CHARACTERISTICS
(T
LD
= T
SET
, T
C
= -20 + 85°C)
SYMBOL
T
set
V
F
I
th
P
f
I
op
P
th
η
λ
p
Δ½
SMSR
ZIN
RIN
t
r
/t
f
S
11
BW
DP
PARAMETER AND CONDITIONS
Laser Set Temperature
Forward Voltage, P
f
= 10 mW
Threshold Current
Optical Output Power from Fiber, I
F
= I
op
, T
LD
= T
set
Operation Current
Threshold Output Power, I
F
= I
th
Quantum Efficiency, CW
Peak Emission Wavelength, P
f
= 10 mW, CW, T
LD
= T
set
Spectral Line Width, P
f
= 10 mW, CW, 3 dB down
Side Mode Suppression Ratio, P
f
= 10 mW, under modulation
Input Impedance
Relative Intensity Noise, P
f
= 10 mW, 20 MHz to 3 GHz
Rise and Fall Time, 20-80%/80-20%, T
c
= 25°C
Input Return Loss, f = 50 MHz to 3 GHz
f = 3 GHz to 6 GHz
Band Width,
−3
dB, P
f
= 10 mW
Dispersion Penalty, T
c
= 25°C
*2
UNIT
°C
V
mA
mW
mA
μW
W/A
nm
MHz
dB
Ω
dB/Hz
ps
dB
GHz
dB
MIN
30
0.9
20
10
125
100
0.142
1 530
30
0.17
ITU-T
*1
1
35
25
−140
120
1 562
5
TYP
MAX
45
2.0
40
6
3
2.5
2.0
Notes:
*1
Available for DWDM wavelengths based on ITU-T recommendation. Please refer to the
ORDERING INFORMATION.
*2
2.48832 Gb/s, PRBS 2
23
−1,
duty cycle, Extinction Ratio
≥
8.5 dB, BER = 10
−10
, NX8563LAS: 1 800 ps/nm(100 km),
NX8563LA: 4 320 ps/nm(240 km)
California Eastern Laboratories
NX8563LA Series
ELECTRO-OPTICAL CHARACTERISTICS
(Applicable to Monitor PD: T
LD
= T
SET
, T
C
= -20 to +85°C)
SYMBOL
I
m
I
D
γ
*1
PARAMETER AND CONDITIONS
Monitor Current, P
f
= 10 mW, V
R
= 5 V
Dark Current, V
R
= 5 V
Tracking Error, I
m
= const.
UNIT
μA
nA
dB
MIN
100
TYP
MAX
2 000
10
0.6
Note:
*1
γ
= 10 log
P
f
10 mW
(mW)
10
P
f
P
f
T
LD
= T
set
, T
C
= 25˚C
T
LD
= T
set
, T
C
= –20 to +85˚C
0
I
m
(@ P
f
(25˚C) = 10 mW)
I
m
ELECTRO-OPTICAL CHARACTERISTICS
(Applicable to Thermistor and TEC: T
LD
= T
SET
, T
C
= -20 to +85°C)
SYMBOL
R
B
I
C
V
C
PARAMETER AND CONDITIONS
Thermistor Resistance, T
LD
= 25°C
B Constant
Cooler Current,
ΔT
= 85
−
T
set
, P
f
= 10 mW
Cooler Voltage,
ΔT
= 85
−
T
set
, P
f
= 10 mW
UNIT
kΩ
K
A
V
MIN.
9.5
3 350
TYP.
10.0
3 450
MAX.
10.5
3 550
1.2
2.4
ABSOLUTE MAXIMUM RATINGS
1
(T
C
= 25°C, unless otherwise specified)
SYMBOL
I
F
V
R
I
F
V
R
T
C
T
stg
T
sld
PARAMETER
Forward Current of LD
Reverse Voltage of LD
Forward Current of PD
Reverse Voltage of PD
Operating Case
Temperature
Storage Temperature
Lead Soldering
Temperature
UNIT
mA
V
mA
V
°C
°C
°C
RATINGS
300
2.0
10
20
−20
to +85
−40
to +85
260 (10 sec.)
Note:
1. Operation in excess of any one of these parameters may result
in permanent damage.
NX8563LA Series
ORDERING INFORMATION
PART NUMBER
NX8563LA-AZ*
package
PACKAGE
Hermetically sealed 14-pin butterfly
NX8563LA
-
CD : SC-APC
CC : SC-UPC
Wavelength Code : Refer to Table A
Without : 240 km (4 320 ps/nm)
S
: 100 km (1 800 ps/nm)
*NOTE:
Please refer to the last page of this data sheet, “Compliance with EU Directives” for Pb-Free RoHS Compliance Infomation.
Table A: DWDM wavelength base on ITU-T recommendations (@ T
LD
= T
set
)
Wavelength Code
303
311
318
326
334
342
350
358
366
373
381
389
397
405
413
421
429
437
445
453
461
469
477
485
493
501
ITU-T Wavelength
*1
(nm)
1530.33
1531.11
1531.89
1532.68
1533.46
1534.25
1535.03
1535.82
1536.60
1537.39
1538.18
1538.97
1539.76
1540.55
1541.34
1542.14
1542.93
1543.73
1544.52
1545.32
1546.11
1546.91
1547.71
1548.51
1549.31
1550.11
Frequency
(THz)
195.90
195.80
195.70
195.60
195.50
195.40
195.30
195.20
195.10
195.00
194.90
194.80
194.70
194.60
194.50
194.40
194.30
194.20
194.10
194.00
193.90
193.80
193.70
193.60
193.50
193.40
Wavelength Code
509
517
525
533
541
549
557
565
573
581
589
597
606
614
ITU-T Wavelength
*1
(nm)
1550.91
1551.72
1552.52
1553.32
1554.13
1554.94
1555.74
1556.55
1557.36
1558.17
1558.98
1559.79
1560.60
1561.41
Frequency
(THz)
193.30
193.20
193.10
193.00
192.90
192.80
192.70
192.60
192.50
192.40
192.30
192.20
192.10
192.00
Note:
*1
The value which omitted and computed the 3rd place below the decimal point
NX8563LA Series

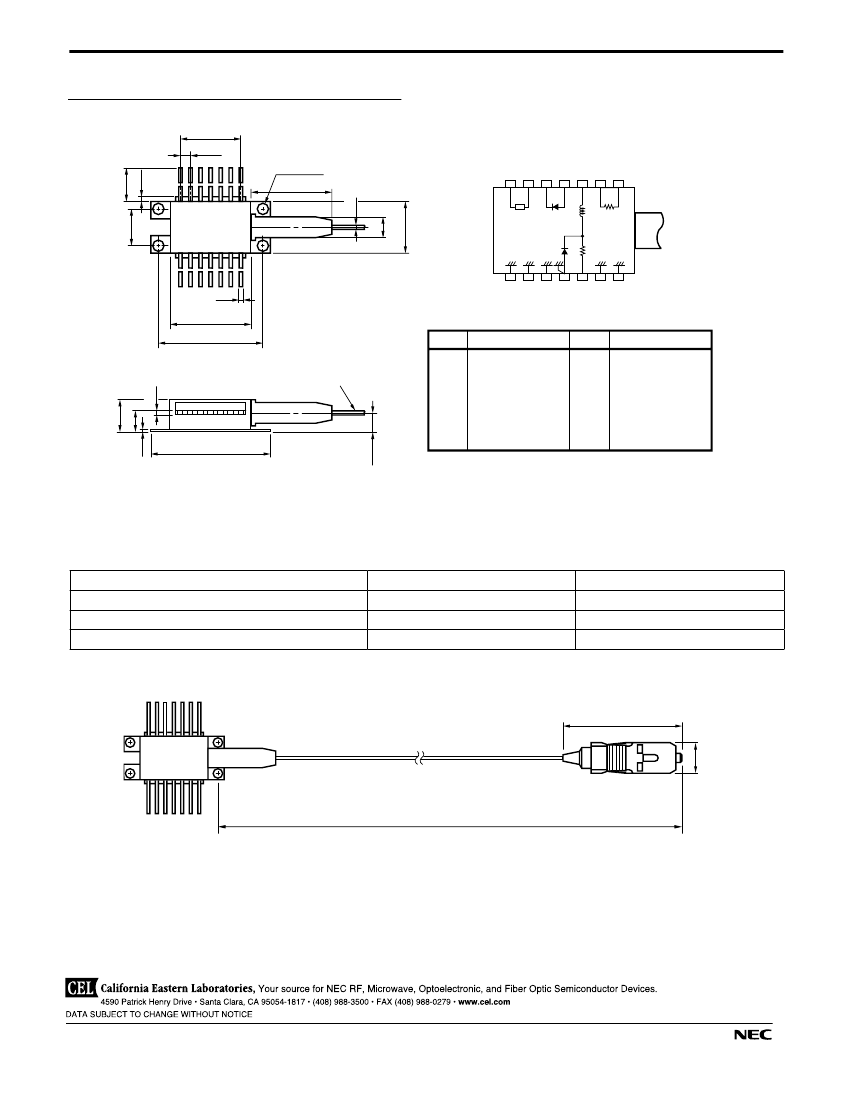

PACKAGE DIMENSIONS
(Units in mm)
15.24
2.54
8.89±0.13 10 MIN.
1.25
4–
φ
2.67
20.8
12.7±0.2
7
8
1
14
0.9
6.0
#7
+
ñ
Cooler PD
LD
#8
L
TOP VIEW
#1
Thermistor
R
#14
0.5
20.83±0.25
26.04±0.25
Optical Fiber (SMF)
Length: 1 000 MIN.
8.2±0.2
5.4
1.0
Pin No.
1
2
3
4
5
6
7
PIN CONNECTIONS
Function
Thermistor
Thermistor
Bias
PD Anode
PD Cathode
Cooler Anode
Cooler Cathode
Pin No.
8
9
10
11
12
13
14
Function
GND
GND
GND
GND, LD Anode
Signal Input
GND
GND
OPTICAL FIBER DIMENSIONS
(UNIT: mm)
PARAMETER
Outer Diameter
Minimum Fiber Bending Radius
Fiber Length
UNIT
mm
mm
mm
SPECIFICATION
0.9±0.1
30
1 000 MIN.
5.15
29.97±0.25
0.3
35±2 mm
SMF
SC-APC : Cut angle 8°
SC-UPC
8.99±0.5 mm
12/15/2003
A Business Partner of NEC Compound Semiconductor Devices, Ltd.
Fiber Length: 1 000 mm MIN.
