YY-4750-44SG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> YY-4750-44SG

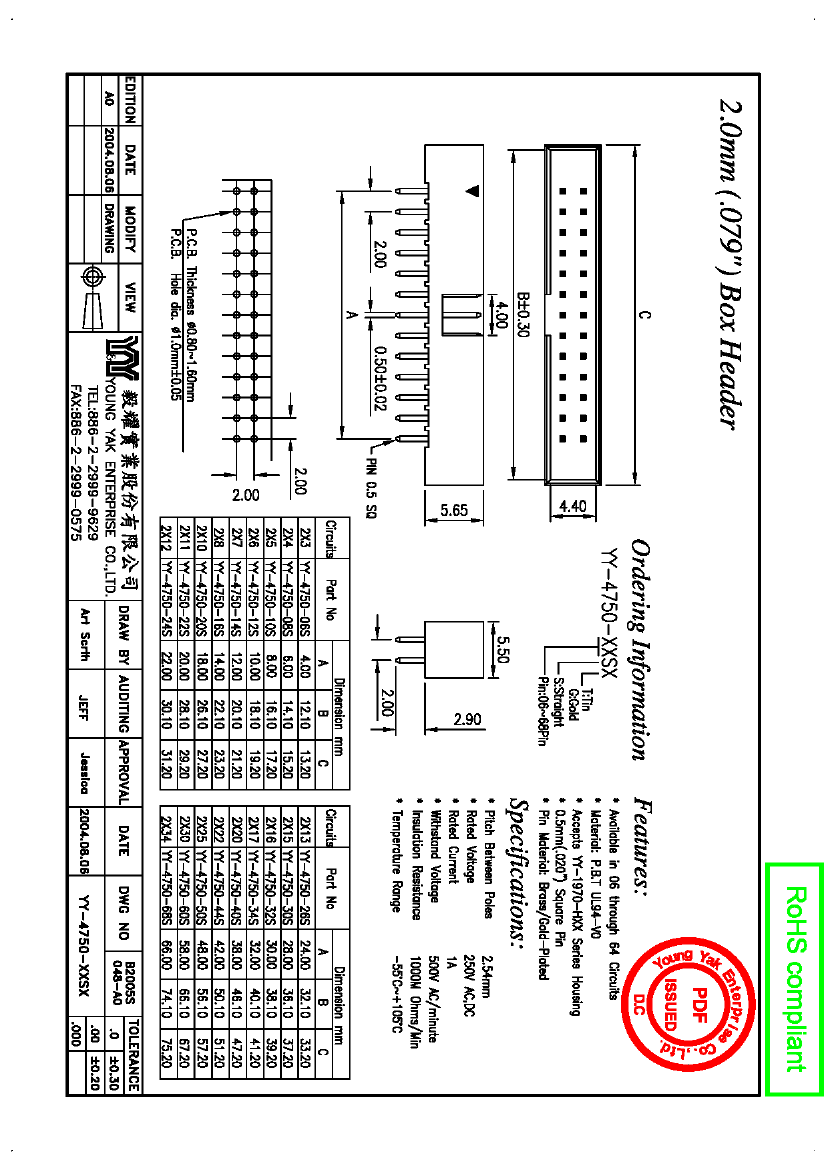

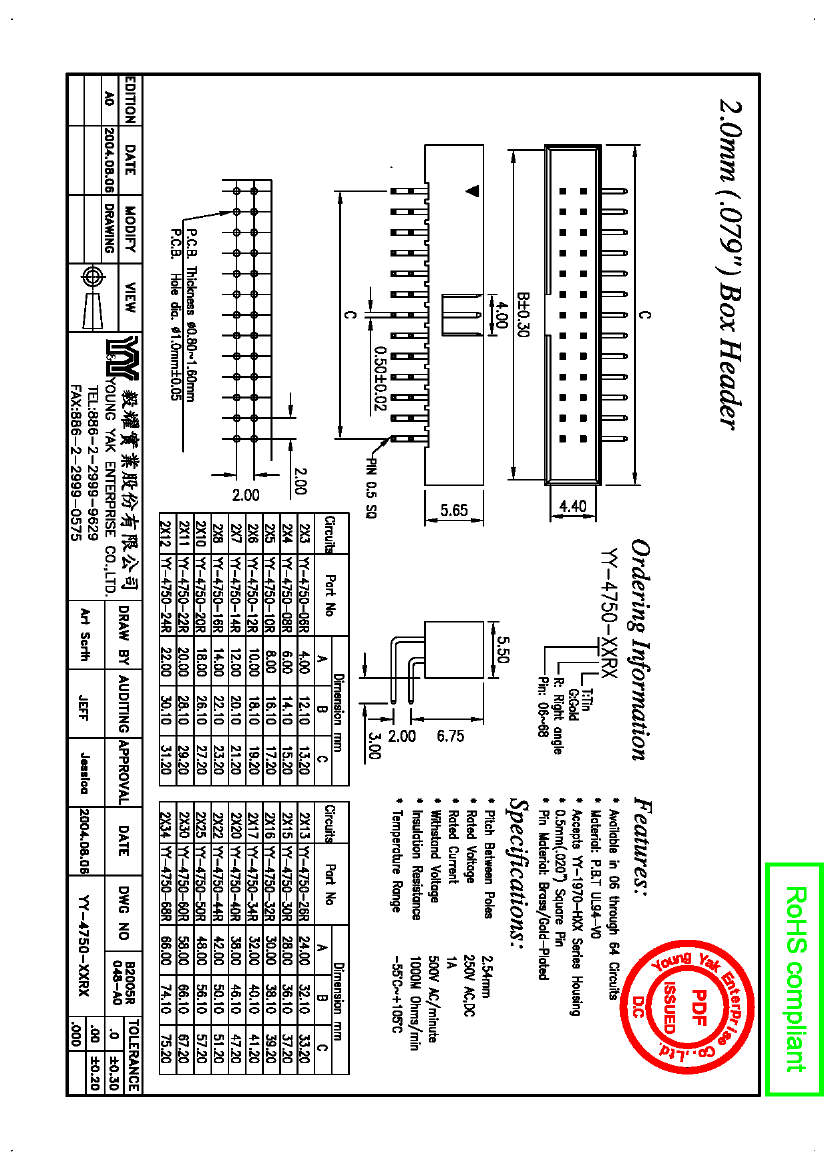

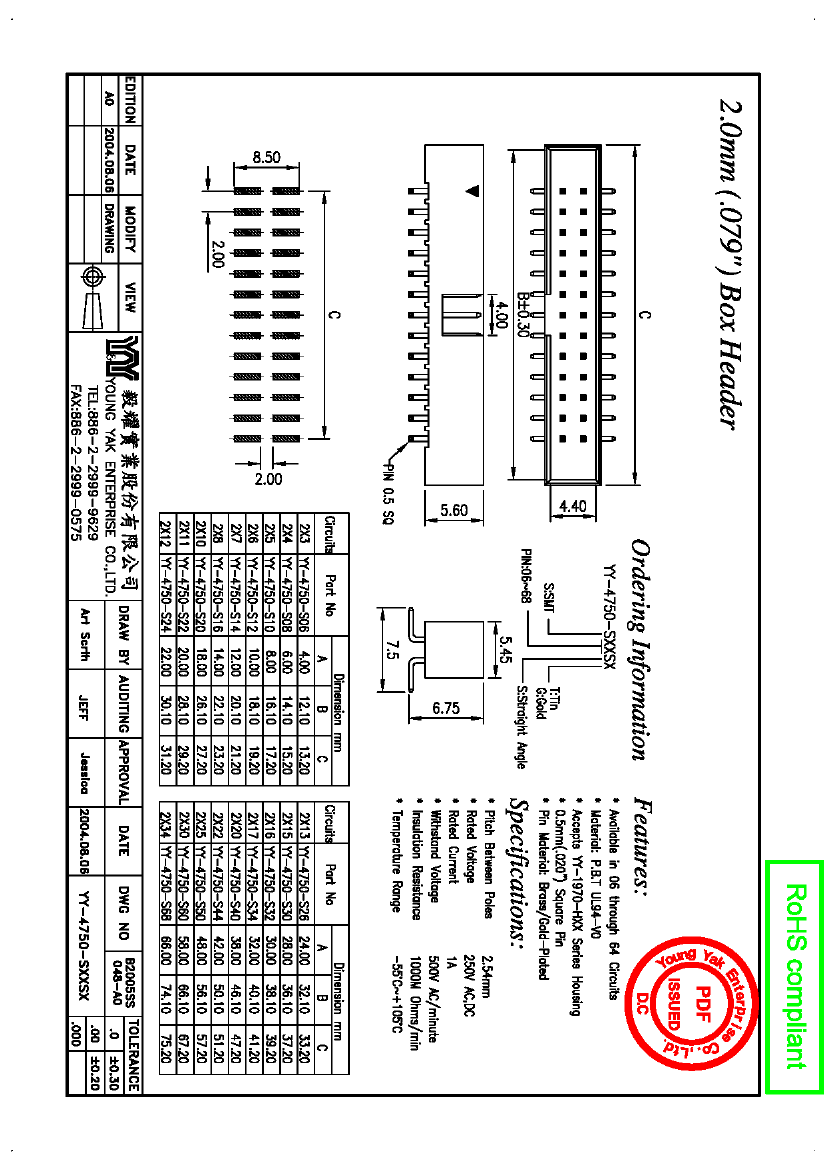

YY-4750-44SG: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size177KB，3 Pages; ManufacturerYoung Yak Enterprise Co., Ltd.

Download Datasheet Parametric Compare View All

YY-4750-44SG Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

YY-4750-44SG Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.217 inch
subject depth	0.222 inch
body length	2.016 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	YY-4750
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	44
Base Number Matches	1

Preview

Download Datasheet

View All

YY-4750-44SG Related Products

	YY-4750-44SG	YY-4750-40SG	YY-4750-40RG	YY-4750-40ST	YY-4750-40RT	YY-4750-44ST	YY-4750-44RG	YY-4750-44RT
Description	Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
subject depth	0.222 inch	0.222 inch	0.344 inch	0.222 inch	0.344 inch	0.222 inch	0.344 inch	0.344 inch
body length	2.016 inch	1.858 inch	1.858 inch	1.858 inch	1.858 inch	2.016 inch	2.016 inch	2.016 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	SN	SN	SN	AU	SN
Contact completed and terminated	GOLD	GOLD	GOLD	TIN	TIN	TIN	GOLD	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	YY-4750	YY-4750	YY-4750	YY-4750	YY-4750	YY-4750	YY-4750	YY-4750
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.114 inch	0.114 inch	0.118 inch	0.114 inch	0.118 inch	0.114 inch	0.118 inch	0.118 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	44	40	40	40	40	44	44	44
Base Number Matches	1	1	1	1	1	1	1	1
