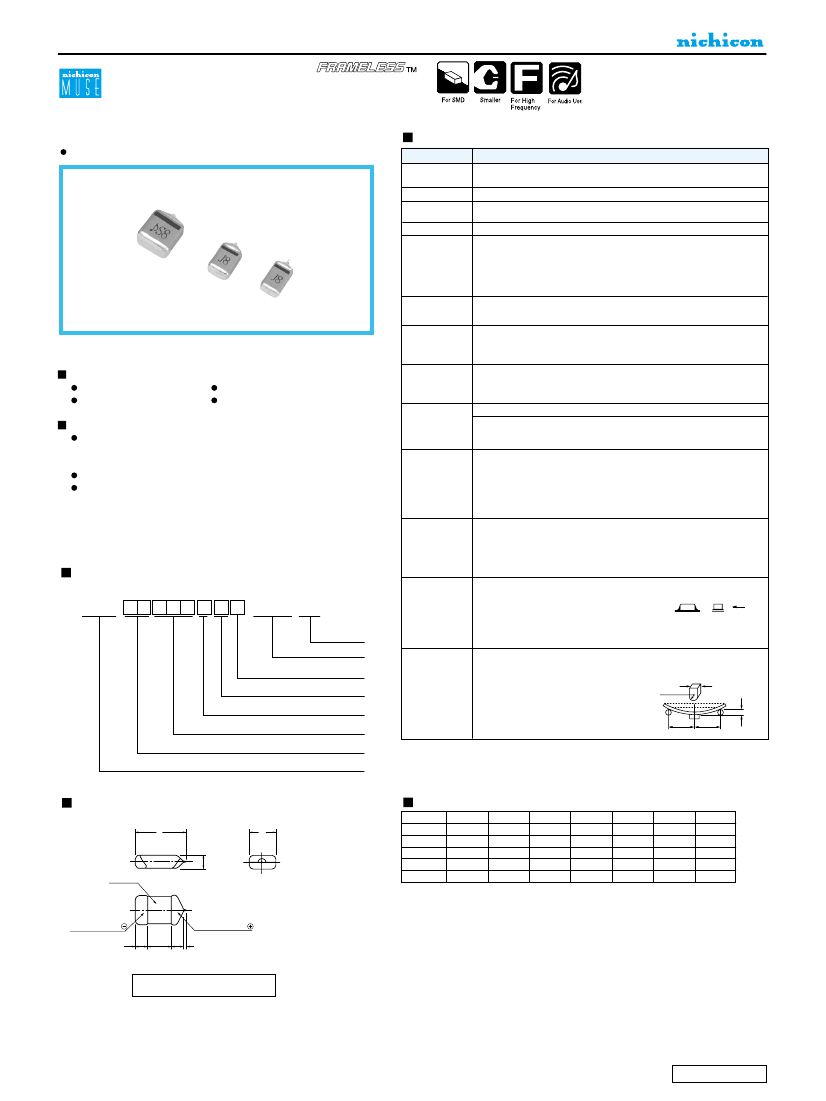

SOLID TANTALUM ELECTROLYTIC CAPACITORS
MUSE
F95
Conformal coated Chip, For Mobile Audio
Specifications
Compliant to the RoHS directive (2002/95/EC).
Item
Per formance Characteristics
Category
--55 to +125˚C (Rated temperature : +85˚C)
Temperature Range
Capacitance Tolerance ± 20%, ± 10% (at 120Hz)
Dissipation Factor
Refer to next page
(at 120Hz)
ESR(100kHz)
Refer to next page
Refer to next page
Provided that
•
After 1 minute's application of rated voltage, leakage current at 85˚C,
Leakage Current
10 times or less than 20˚C specified value.
•
After 1 minute's application of rated voltage, leakage current at 125˚C,
12.5 times or less than 20˚C specified value.
Capacitance Change +15% Max. (at +125˚C)
+10% Max. (at + 85˚C)
by Temperature
--10% Max. (at --55˚C)
At 40˚C, 90 to 95% R.H., For 500 hours (No voltage applied)
Damp Heat
Capacitance Change
• • • • • •
Refer to next page (
*
1)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
(Steady State)
Leakage Current
• • • • • • • • • • • •
Initial specified value or less
At --55˚C / +125˚C, 30 minutes each, For 5 cycles,
Capacitance Change
• • • • • •
Refer to next page (
*
1)
Temperature Cycles
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • ••
Initial specified value or less
10 seconds reflow at 260˚C, 10 seconds immersion at 260˚C
Resistance to
Capacitance Change
• • • • • • • • •
Refer to next page (
*
1)
Soldering Heat
Dissipation Factor
• • • • • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • •• • • •
Initial specified value or less
After application of surge voltage in series with a 33
Ω
resistor at the rate of 30
seconds ON, 30 seconds OFF, for 1000 successive test cycles at 85˚C,
capacitors shall meet the characteristic requirements table below.
Capacitance Change
• • • • • •
Refer to next page (
*
1)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • • •
Initial specified value or less
After 2000 hours' application of rated voltage at 85˚C,
capacitors shall meet the characteristic requirements table below.
Capacitance Change
• • • • • •
Refer to next page (
*
1)
Dissipation Factor
• • • • • • • • • •
Initial specified value or less
Leakage Current
• • • • • • • • • • ••
Initial specified value or less
After applying the pressure load of 5N
for 10 ± 1 seconds horizontally to the
center of capacitor side body which has
no electrode and has been soldered
5N (0.51kg
•
f)
beforehand on a substrate, there shall be
For 10
±
1 seconds
found neither exfoliation
nor its sign at the terminal electrode.
Keeping a capacitor surface-mounted on a substrate upside
down and supporting the substrate at both of the opposite
bottom points 45mm apart from the center of capacitor,
the pressure strength is applied with
20
R230
a specified jig at the center of
substrate so that the substrate may
bend by 1mm as illustrated. Then,
45
45
there shall be found no remarkable
abnormality on the capacitor terminals.
Applications
Mobile Audio Player
Smartphone
Mobile phone
Wireless Microphone System
Feature
Rich sound in the bass register and clear sound,Materials
are strictly selected to achieve high level sound.
F95 series has no lead-frame, and no vibration factor.
Low ESR, Low ESL
Line up miniature size and high capacitance, necessary to
mobile design.
Surge
∗
Endurance
∗
Type numbering system (Example : 4V 220µF)
1
2
3
4
5
6
7
8
9
10
11
12 13 14
15 16
F 9 5 0 G 2 2 7 M S
AM1 Q 2
Single face
electrode
MUSE series code
Taping code
(Refer to page 333 for details)
Case code
Capacitance tolerance
Rated capacitance
Rated voltage
Series
Shear Test
Terminal Strength
∗
As for the surge voltage, refer to page 332 for details.
Drawing
L
W
Dimensions
Case code
P
S
A
T
B
L
W
2.2 ± 0.3 1.25 ± 0.3
3.2 ± 0.3 1.6 ± 0.3
3.2 ± 0.3 1.7 ± 0.3
3.5 ± 0.2 2.7 ± 0.2
3.5 ± 0.2 2.8 ± 0.2
H
1.0 ± 0.2
1.0 ± 0.2
1.4 ± 0.2
1.0 ± 0.2
1.8 ± 0.2
A
0.6 ± 0.3
0.8 ± 0.3
0.8 ± 0.3
0.8 ± 0.2
0.8 ± 0.3
B
0.8 ± 0.3
1.2 ± 0.3
1.2 ± 0.3
1.2 ± 0.2
1.2 ± 0.3
C
0.8 ± 0.3
0.8 ± 0.3
0.8 ± 0.3
1.1 ± 0.2
1.1 ± 0.3
(mm)
H
Resin
(D)
(0.2)
(0.2)
(0.2)
(0.2)
(0.2)
D dimension only for reference
Solder electrode
Solder electrode
(D)
A
B
C
Single-side electrodes
(Both electrodes at bottom side only)
CAT.8100B
1mm
