H1113: DescriptionAudio Transformers / Signal Transformers 10/100BaseTX SMD 1-Port; CategoryPassive components; File Size115KB，2 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

H1113 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H1113	-	-	View	Buy Now

H1113 Overview

Audio Transformers / Signal Transformers 10/100BaseTX SMD 1-Port

H1113 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pulse A Technitrol Company
Product Category	Audio Transformers / Signal Transformers
RoHS	N
Termination Style	SMD/SMT
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Number of Channels	Single
Product	LAN
Type	Module
Application	100Base-TX
Length	14.81 mm
Width	14.73 mm
Height	4.88 mm
Factory Pack Quantity	30

Preview

Download Datasheet

View All

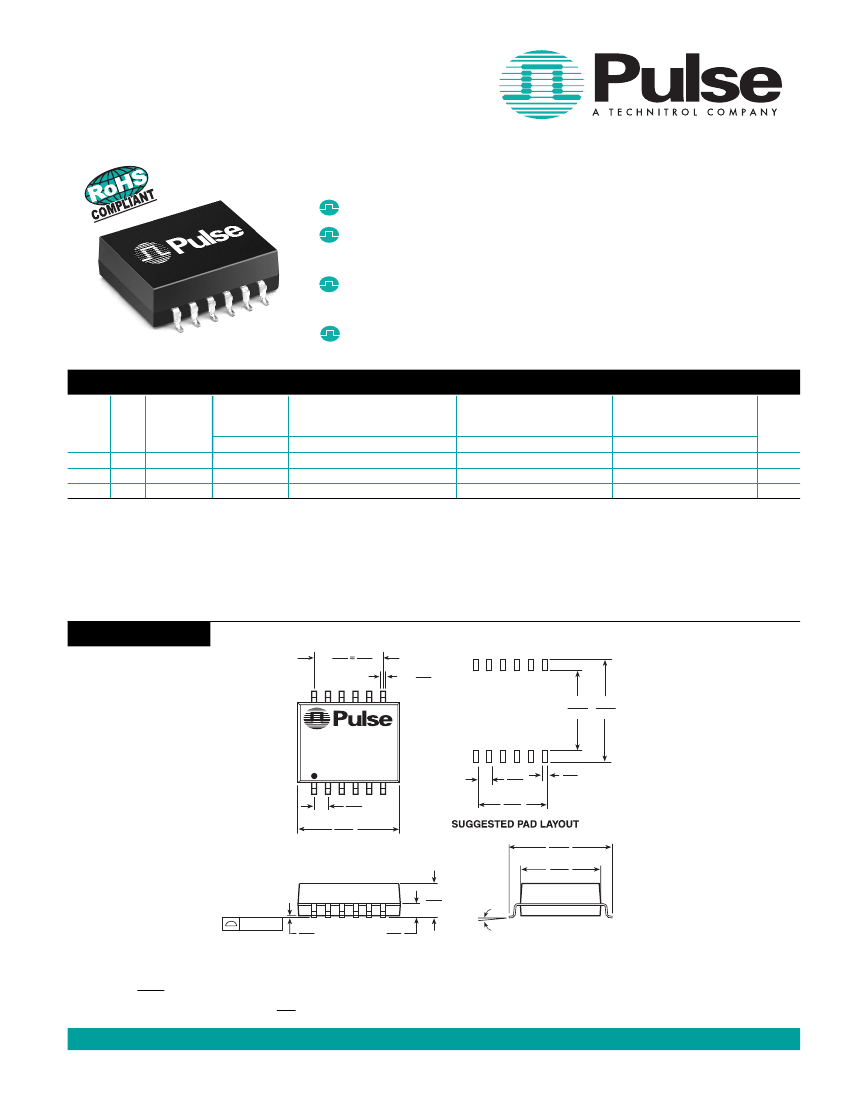

10/100BASE-TX SINGLE PORT

TRANSFORMER MODULES

With Various Transmit Turns Ratios

For RoHS part add suffix

NL

4

Peak solder temperature rating per Table 5-2

in IPC/JEDEC J-STD-020C

°°°°

Compact symmetrical size facilitates chip shooter

placement and reduces manufacturing time

Meets IEEE 802.3 specification

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

Insertion

Return Loss

Differential to Common

Crosstalk

Part

Loss

Transmit

Mode Rejection

(dB MIN)

Number RoHS

(dB MAX)

(dB MIN)

(dB TYP)

100kHZ-100MHz 1-30MHz 40MHz 50MHz 60-80MHz 30MHz 60MHz 100MHz 200MHz 1MHz 30MHz 60MHz 100MHz

3c

H1112

NL

1CT:1CT

1.2

-16

-14

-13

-12

-59

-49

-42

-37

-60

-40

-35

2, 3c

H1113

1CT:1CT

1.2

-16

-14

-13

-12

-55

-45

-38

-33

-60

-40

-35

2, 3c

H1126

1CT:1.414CT

1.2

-16

-14

-13

-12

-59

-49

-42

-37

-60

-40

-35

Turns

Ratio

Transmit

1.

2.

3.

4.

For Tape & Reel packaging, add a

“T”

suffix at the end of the part number when ordering e.g. H1112T.

Contact Pulse for RoHS compliant part availability.

MSL=Moisture Sensitivity Level a=1 b=2 c=3 d=4

Add suffix

NL

for RoHS compliant parts, e.g. H1112 changes to H1112NL

or H1112NLT (for Tape & Reel).

Hipot

(Vrms

MIN)

1500

Mechanical

H1112, H1113, H1126

5X

.079 .395

2,00 10,03

12X .020

0,51

.475 .610

12,07 15,49

Date Code

Country of Origin

.079

2,00

.079

2,00

.583

14,81

.395

10,03

H11XX

.040

1,02

.580

14,73

.460

11,68

.192

4,88

12X 0°-8°

.004/0,10

12 SURFACES

.005 WASH

0,13

.080

2,03

Dimensions:

Inches

mm

Unless otherwise specified, all tolerances are ± .010

0,25

Weight

. . . . . . . . . . . .1.7 grams

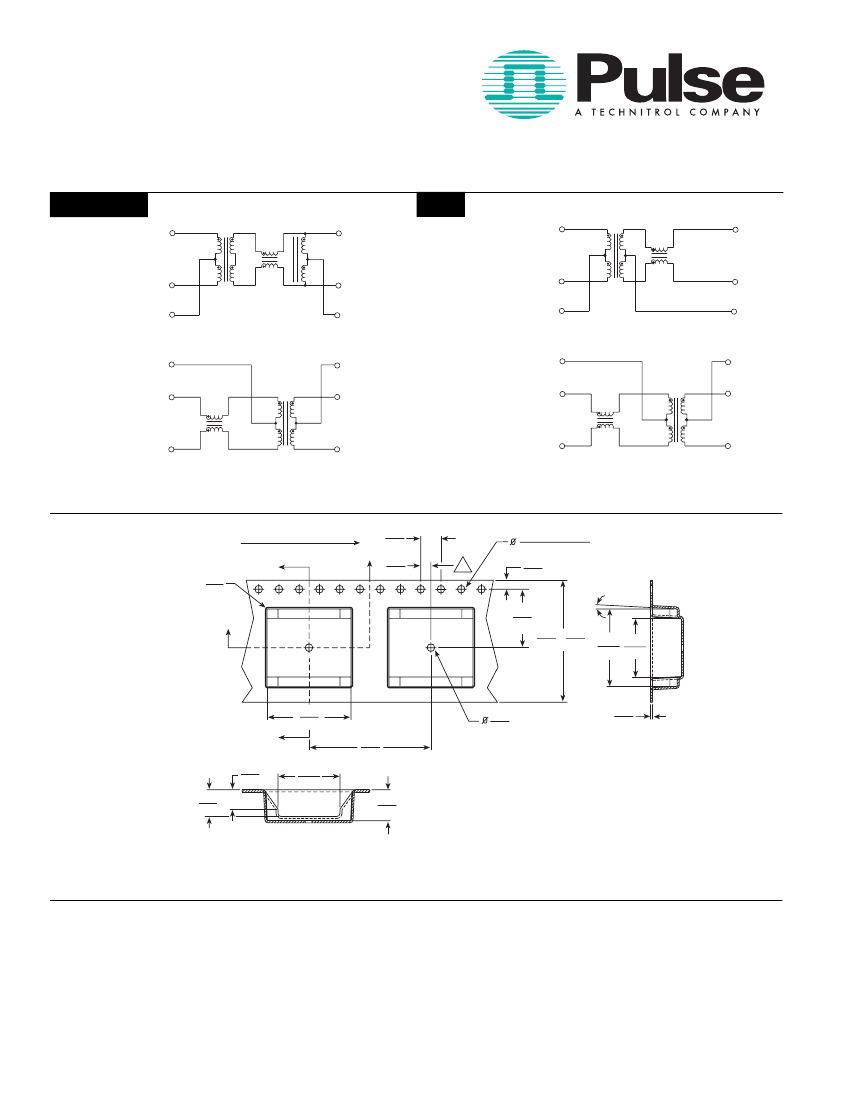

Tape & Reel

. . . . . . . . .350/reel

Tube

. . . . . . . . . . . . . . .30/tube

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 32181071

•

China 86 769 85538070

•

Taiwan 886 3 4641811

www.pulseeng.com

1

H326.D (6/06)
