IDCP3114ER820M

Description
Fixed Inductors IDCP-3114 82 20% ER E1
CategoryPassive components    inductor
File Size87KB,2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

IDCP3114ER820M Online Shopping

Suppliers Part Number Price MOQ In stock
IDCP3114ER820M - - View Buy Now

IDCP3114ER820M Overview

Fixed Inductors IDCP-3114 82 20% ER E1

IDCP3114ER820M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction3128
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
uppercase and lowercase codes3128
structureRECTANGULAR PACKAGE
core materialFERRITE
DC Resistance0.41 Ω
Nominal inductance(L)82 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height3.5 mm
Package length7.8 mm
Package formSMT
Package width7 mm
method of packingTR, 13 Inch
Maximum rated current0.54 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceTin/Silver/Copper - with Nickel barrier
Terminal locationDUAL ENDED
Terminal shapeONE SURFACE
Test frequency2.52 MHz
Tolerance20%
Base Number Matches1

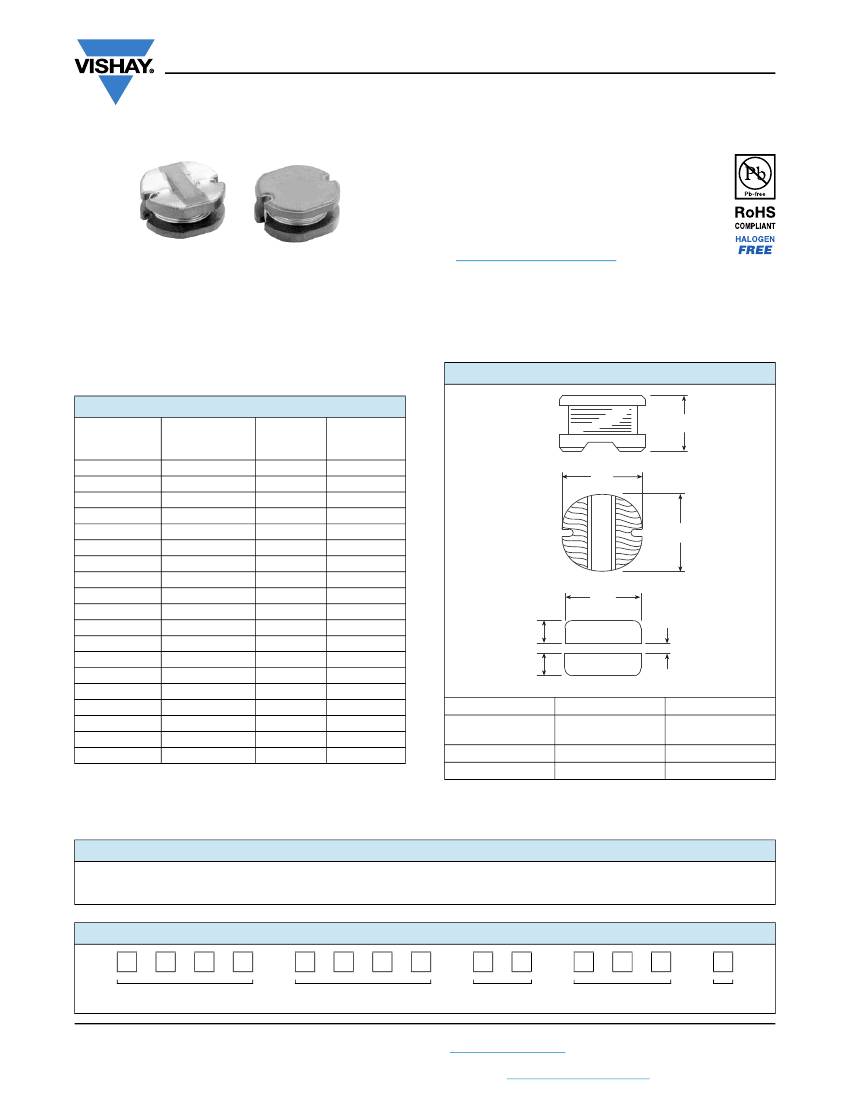

IDCP-3114
www.vishay.com
Vishay Dale
High Current, Surface Mount Inductors - Non-Shielded
FEATURES
High energy storage
Low resistance
Tape and reel packaging for automatic handling
Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
ELECTRICAL SPECIFICATIONS
Inductance Range:
10 μH to 330 μH
Inductance Tolerance:
20 %
Operating Temperature:
-40 °C to +125 °C (temperature
rise included)
Storage Temperature:
-40 °C to +125 °C
Resistance to Solder Heat:
260 °C for 10 s
MATERIALS
Core:
ferrite
Wire:
enamelled copper wire
Terminals:
Ni and Sn / Ag / Cu
DIMENSIONS
in inches [millimeters]
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(μH)
10.0
12.0
15.0
18.0
22.0
27.0
33.0
39.0
47.0
56.0
68.0
82.0
100.0
120.0
150.0
180.0
220.0
270.0
330.0
TEST
FREQUENCY
L
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
2.52 MHz
1 kHz
1 kHz
1 kHz
1 kHz
1 kHz
1 kHz
1 kHz
DCR MAX.
(Ω)
0.08
0.09
0.10
0.11
0.13
0.15
0.17
0.22
0.25
0.28
0.33
0.41
0.48
0.54
0.75
1.02
1.20
1.31
1.50
RATED DC
CURRENT
(A)
(1)
1.44
1.39
1.24
1.12
1.07
0.94
0.85
0.74
0.68
0.64
0.59
0.54
0.51
0.49
0.40
0.36
0.31
0.29
0.28
A
B
C
D
E
F
E
TYPICAL PAD LAYOUT
A
0.307 ± 0.01
[7.8 ± 0.3]
D
0.296 [7.5]
B
0.138 ± 0.02
[3.5 ± 0.5]
E
0.118 [3.0]
C
0.276 ± 0.01
[7.0 ± 0.3]
F
0.079 [2.0]
Note
(1)
Rated Current: Value obtained when current flows and the
temperature has risen 40 °C or when DC current flows and the
initial value of inductance has fallen by 10 %, whichever is
smaller
DESCRIPTION
IDCP-3114
MODEL
10 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
JEDEC
®
e1
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
D
C
P
3
1
SIZE
1
4
E
R
1
0
INDUCTANCE
VALUE
0
M
INDUCTANCE
TOLERANCE
PRODUCT FAMILY
PACKAGE
CODE
Revision: 20-Jun-17
Document Number: 34091
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
