16SVPC68M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 16SVPC68M

16SVPC68M: DescriptionAluminum Organic Polymer Capacitors 16volts 68uF ESR 30mohm; CategoryPassive components capacitor; File Size56KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

16SVPC68M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	16SVPC68M	-	-	View	Buy Now

16SVPC68M Overview

Aluminum Organic Polymer Capacitors 16volts 68uF ESR 30mohm

16SVPC68M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	, 2626
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
capacitance	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	30 mΩ
high	5.9 mm
leakage current	0.3 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	2200 mA
size code	2626
surface mount	YES
Delta tangent	0.12
Terminal shape	ONE SURFACE
width	6.6 mm

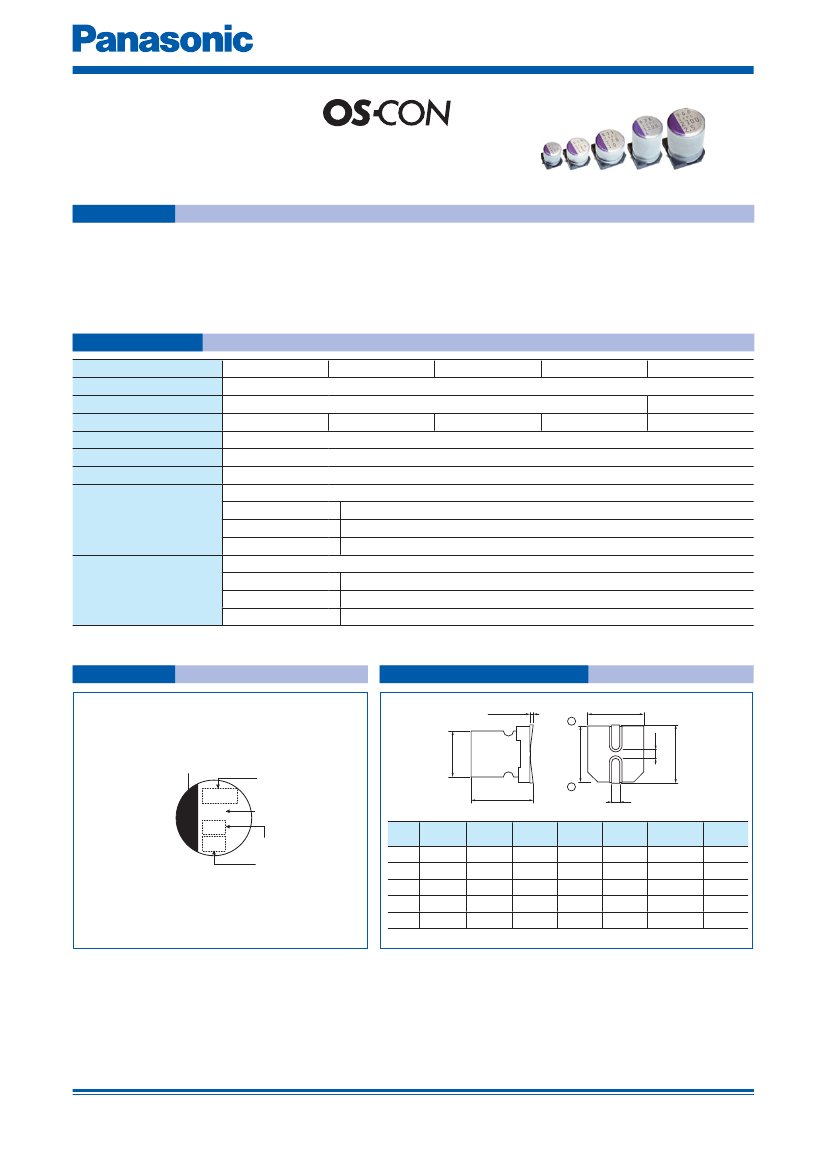

Preview

Download Datasheet

View All

Conductive Polymer Aluminum Solid Capacitors

Surface Mount Type

Series :

SVPC

Features

●

Low

ESR (9 mΩ to 30 mΩ)

●

Large capacitance (2700 μF max.)

●

RoHS compliance, Halogen free

Specifications

Size code

E12

Category temperature range

–55 °C to +105 °C

Rated voltage range

2.5 V.DC to 16 V.DC

Rated capacitance range 39 μF to 180 μF

68 μF to 560 μF 120 μF to 680 μF 270 μF to 1500 μF

Capacitance tolerance

±20 % (120 Hz / + 20 °C)

Leakage current

Please see the attached characteristics list

Dissipation factor (tan

Please see the attached characteristics list

+105 °C, 2000 h, rated voltage applied

Capacitance change Within ±20 % of the initial value

Endurance

tan

150 % of the initial limit

DC leakage current Within the initial limit

+60 °C, 90 % to 95 %, 1000 h, No-applied voltage

Capacitance change Within ±20 % of the initial value

Damp heat

(Steady State)

tan

150 % of the initial limit

DC leakage current Within the initial limit (after voltage processing)

F12

2.5 V.DC

2700 μF

Marking

Dimensions (not to scale)

0.2 max.

–

Polarity marking (−)

Lot. No.

Series

R. Capacitance

R. Voltage

Unit : mm

Size

code

fD±0.5

5.0

6.3

8.0

10.0

+0.1

−0.4

W±0.2 H±0.2 C±0.2

5.3

6.6

8.3

10.3

5.3

6.6

8.3

10.3

6.0

7.3

9.0

11.0

0.6 to 0.8

0.8 to 1.1

P±0.2

1.4

2.1

3.2

4.6

E12

F12

5.9

6.9

11.9

12.6

Externals of ﬁgure are the reference.

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

03 Feb. 2017

16SVPC68M Related Products

	16SVPC68M	10SVPC68MV
Description	Aluminum Organic Polymer Capacitors 16volts 68uF ESR 30mohm	Aluminum Organic Polymer Capacitors 10volts 68uF ESR 23mohm
Is it Rohs certified?	conform to	conform to
Maker	Panasonic	Panasonic
package instruction	, 2626	, 2121
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	10 weeks	10 weeks
capacitance	68 µF	68 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)
ESR	30 mΩ	23 mΩ
high	5.9 mm	5.9 mm
leakage current	0.3 mA	0.3 mA
length	7.3 mm	6 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%
Number of terminals	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	SMT	SMT
method of packing	TR	TR
polarity	POLARIZED	POLARIZED
positive tolerance	20%	20%
Rated (DC) voltage (URdc)	16 V	10 V
ripple current	2200 mA	2540 mA
size code	2626	2121
surface mount	YES	YES
Delta tangent	0.12	0.12
Terminal shape	ONE SURFACE	ONE SURFACE
width	6.6 mm	5.3 mm
