2512-683K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 2512-683K

2512-683K: DescriptionFixed Inductors 68uH 10% 5.1ohm Molded SMT Inductor; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

2512-683K Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2512-683K	-	-	View	Buy Now

2512-683K Overview

Fixed Inductors 68uH 10% 5.1ohm Molded SMT Inductor

2512-683K Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	2611
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2611
structure	Rectangular
core material	Ferrite
DC Resistance	5.1 Ω
Nominal inductance(L)	68 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	2.79 mm
Package length	6.48 mm
Package form	SMT
Package width	2.67 mm
method of packing	TR, 13 Inch
Maximum rated current	0.281 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	2.5 MHz
Tolerance	10%
Base Number Matches	1

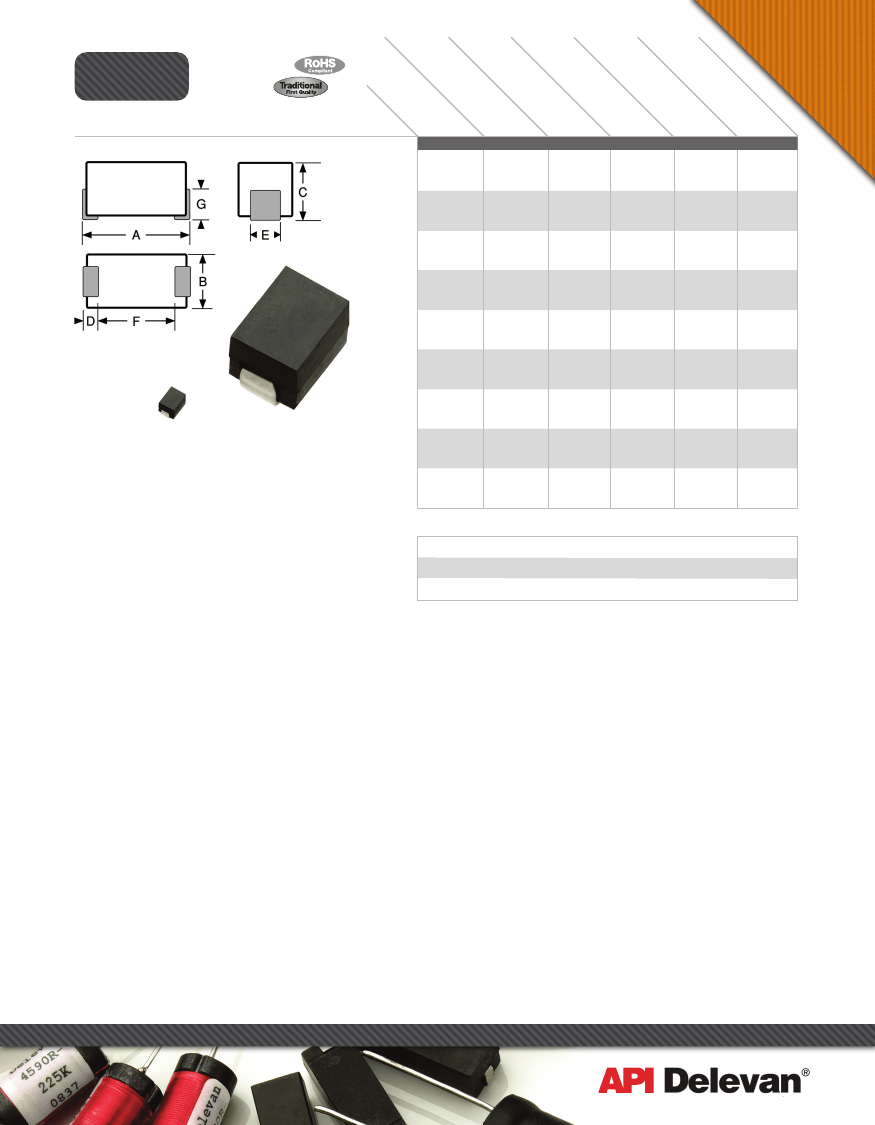

Preview

Download Datasheet

View All

SERIES

2512R

2512

EN A)

EM (m

CR C

IN NT D

TI )

RA A

T (m

EN UM

RR IM

CU X

AN )

ST S

SI HM

RE M (O

DC MU

±1

(µ

)

Surface Mount Power Inductors

-102K

-122K

-152K

-182K

-222K

-272K

-332K

-392K

-472K

-562K

-682K

-822K

-103K

-123K

-153K

-183K

-223K

-273K

-333K

-393K

-473K

-563K

-683K

-823K

-104K

Actual Size

Physical Parameters

Inches

Millimeters

0.235 to 0.255

5.97 to 6.48

0.085 to 0.105

2.16 to 2.67

0.090 to 0.110

2.29 to 2.79

0.060 to 0.080

1.52 to 2.03

0.035 to 0.055

0.89 to 1.40

0.100 (Ref. only)

2.54 (Ref. only)

0.058 (Ref. only)

1.47 (Ref. only)

Dimensions “A” and “C” are over terminals

Operating Temperature Range

–55°C to +125°C

Maximum Power Dissipation at 60°C

0.56 W

Note

Current rating is based on 60°C ambient and 125°C

max. operating temperature. The Incremental Current is the

current which causes a maximum change of inductance of

10%.

Marking

API/SMD; HC followed by the dash number with

tolerance letter; date code (YYWWL). Note: An R before

the date code indicates a RoHS component.

Example: 2512-102K

API/SMD

HC102K

0845A

Packaging

Tape & reel (12mm):

7" reel, 750 pieces max.; 13" reel, 2700 pieces max.

Made In the U.S.A.

SERIES 2512 FERRITE CORE

1.0

7.9

0.15

1.2

7.9

0.21

1.5

7.9

0.27

1.8

7.9

0.29

2.2

7.9

0.40

2.7

7.9

0.54

3.3

7.9

0.75

3.9

7.9

0.82

4.7

7.9

1.0

5.6

7.9

1.1

6.8

7.9

1.2

8.2

7.9

1.3

10.0

7.9

1.5

12.0

2.5

1.6

15.0

2.5

1.8

18.0

2.5

2.6

22.0

2.5

3.5

27.0

2.5

3.7

33.0

2.5

3.8

39.0

2.5

3.9

47.0

2.5

4.2

56.0

2.5

4.6

68.0

2.5

5.1

82.0

2.5

5.6

100.0

2.5

6.0

1640

1390

1220

1180

1000

865

734

702

636

606

580

557

519

503

474

394

340

330

326

322

310

296

281

278

260

1230

1040

920

890

750

649

551

527

477

455

435

418

389

377

355

296

255

248

245

242

233

222

211

209

195

Optional Tolerances: J = 5% H = 3% G = 2% F = 1%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
