T-1(3mm) BI-COLOR INDICATOR LAMPS
L-469EGW HIGH EFFICIENCY RED / GREEN

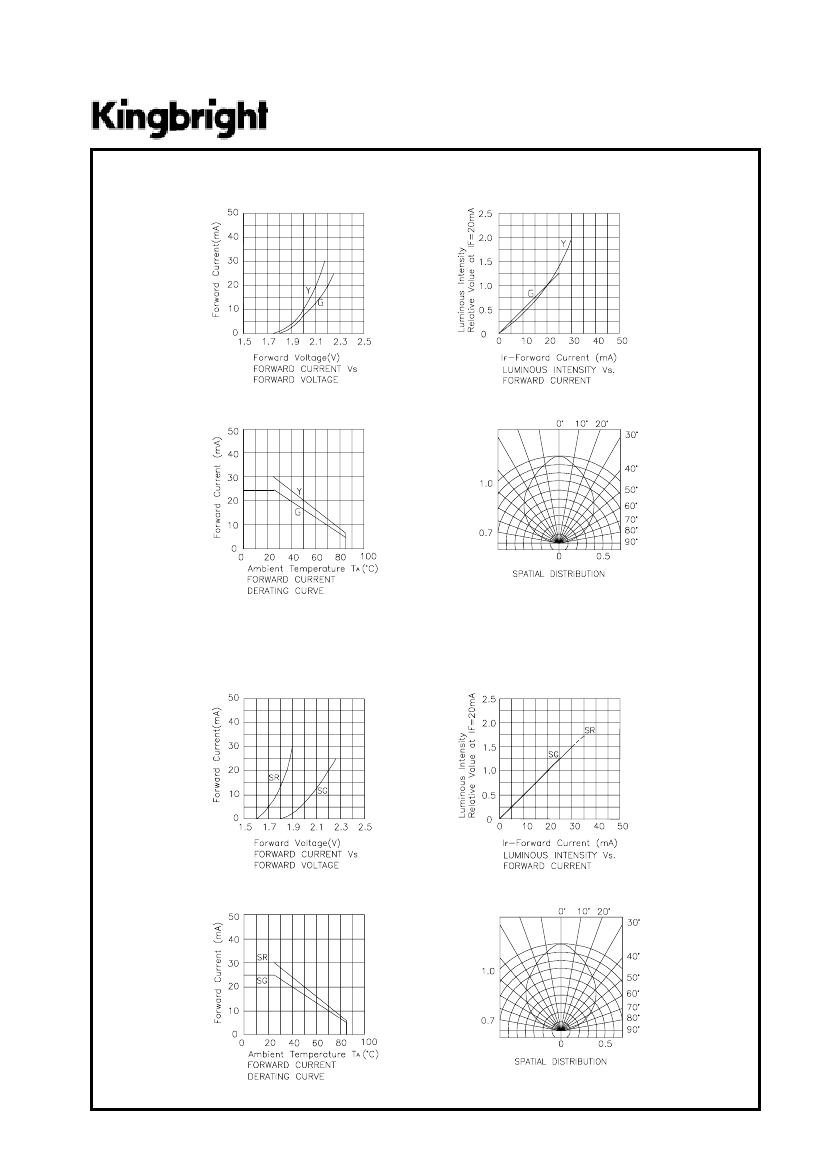

L-469GYW GREEN / YELLOW
L-469SRSGW-CC SUPER BRIGHT RED / SUPER BRIGHT GREEN

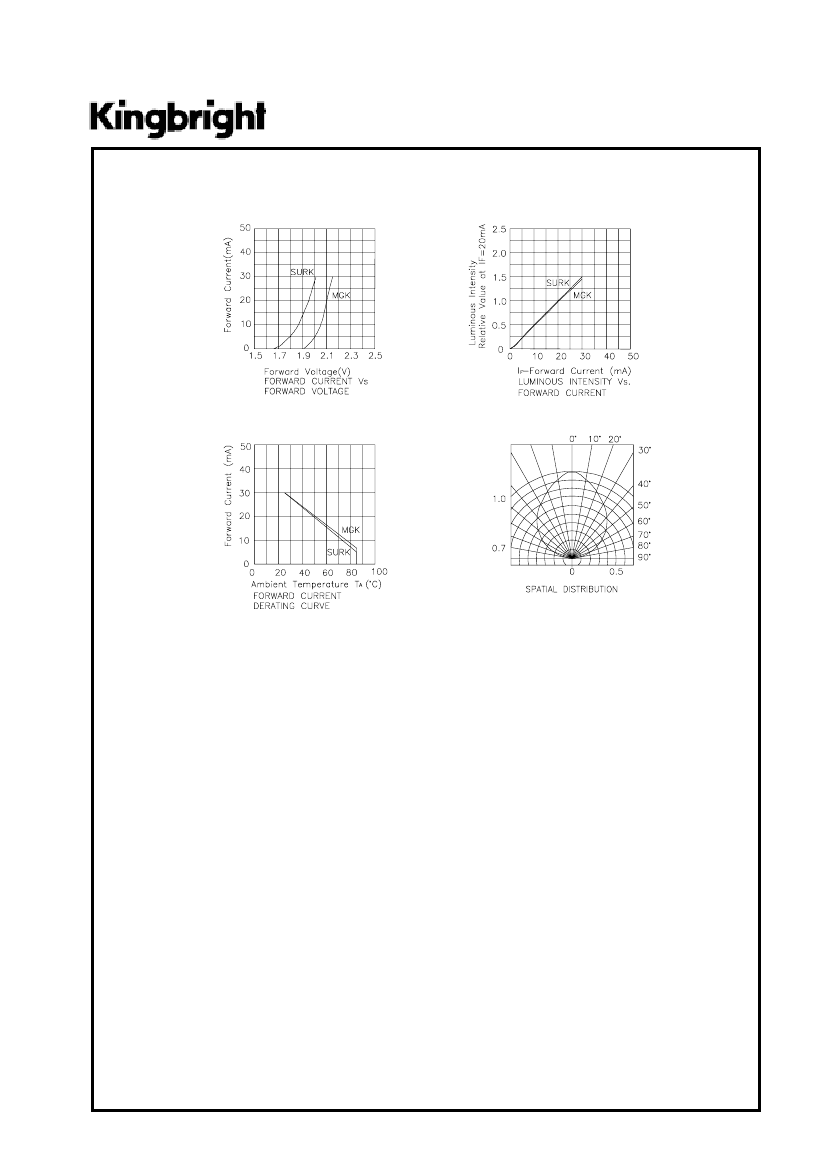

L-469SURKMGKW HYPER RED / MEGA GREEN
Features
!
TWO
Description
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Green and Super Bright Green source color devices are
made with Gallium Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium Arsenide
Phosphide on Gallium Phosphide Yellow Light Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
The Hyper Red and Mega Green source color devices are made with
DH InGaAlP on GaAs substrate Light Emitting Diode.
CHIPS IN SERIES CONNECTION.
!
I.C. COMPATIBLE.
!
RELIABLE AND RUGGED.
!
LONG LIFE - SOLID STATE RELIABILITY.

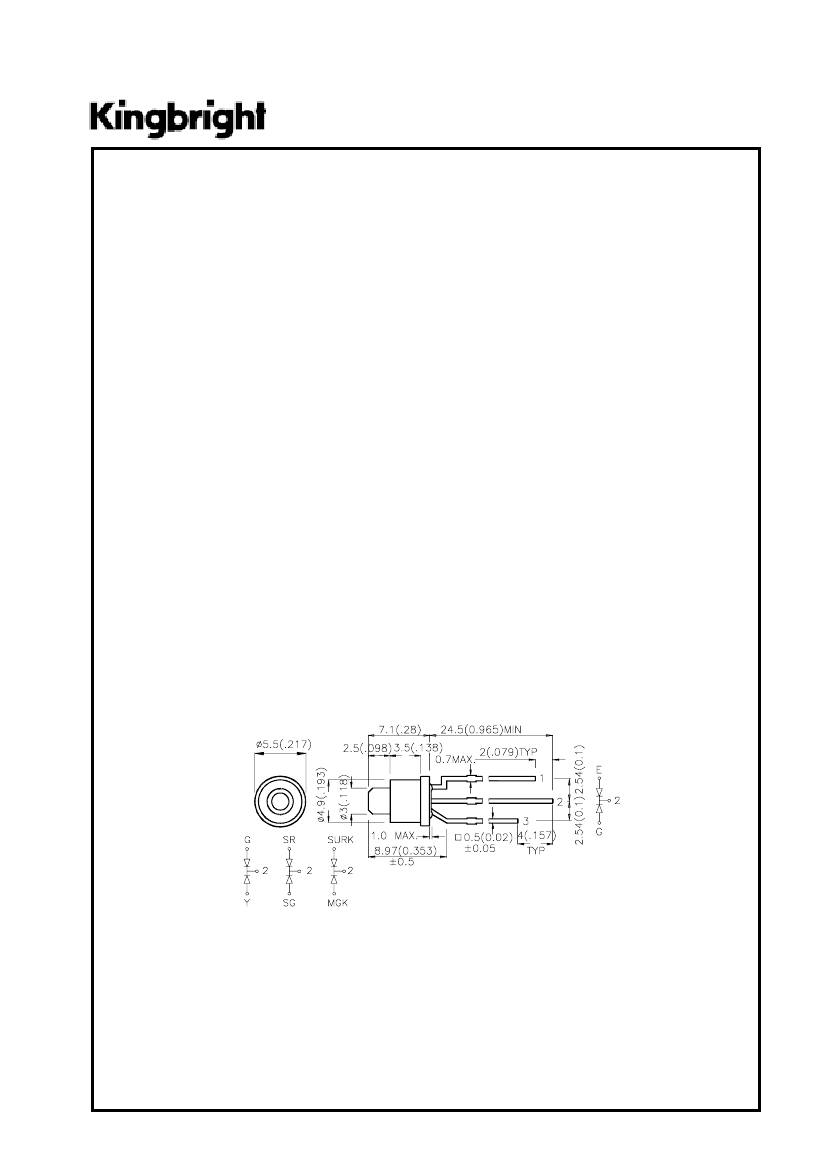

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0317
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/17/2001
DRAWN: J.X.FU
PAGE: 1 OF 5
Selection Guide
Par t No .
Di c e
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
SUPER BRIGHT RED (GaAlAs)
SUPER BRIGHT GREEN (GaP)
HYPER RED (InGaAlP)
MEGA GREEN (InGaAiP)
L en s Ty p e
5
5
5
3
40
8
70
10
Iv (mc d )
@ 20 mA
Min .
L-469EGW
WHITE DIFFUSED
Ty p .
15
10
10
8
60
15
170
30
View in g
An g l e
2θ1/2
100°
L-469GYW
WHITE DIFFUSED
100°
L-469SRSGW-CC
L-469SURKMGKW
WHITE DIFFUSED
WHITE DIFFUSED
100°
100°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par ameter
Dev ic e
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
Hyper Red
Mega Green
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
Hyper Red
Mega Green
Ty p .
627
565
590
660
565
640
574
625
568
588
640
568
630
570
45
30
35
20
30
28
20
15
15
20
45
15
35
15
2.0
2.2
2.1
1.85
2.2
1.95
2.1
2.5
2.5
2.5
2.5
2.5
2.5
2.5
10
Max .
Un i t s
Tes t Co n d itio n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
High Efficiency Red
Green
Yellow
Spectral Line Halfwidth Super Bright Red
Super Bright Green
Hyper Red
Mega Green
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
Hyper Red
Mega Green
High Efficiency Red
Green
Yellow
Super Bright Red
Super Bright Green
Hyper Red
Mega Green
All
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
Forward Voltage
V
IF=20mA
I
R
Reverse Current
uA
VR = 5V
SPEC NO: KDA0317
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/17/2001
DRAWN: J.X.FU
PAGE: 2 OF 5

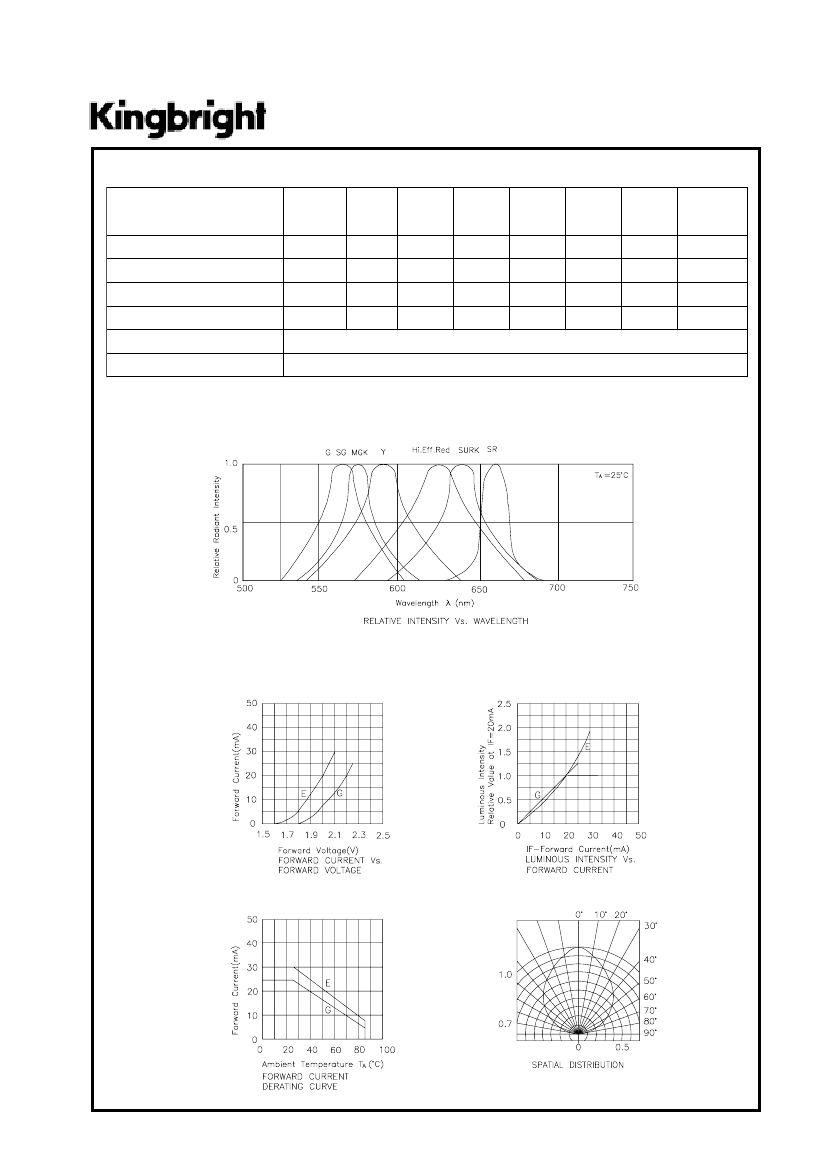

Absolute Maximum Ratings at T
)
=25°C
°
Par ameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
Hi g h
Effic ien c y
Red
105
30
160
5
Gr een
105
25
140
5
Yello w
105
30
140
5
Su p er
B r ig h t
Red
100
30
155
5
Su p er
B r ig h t
Gr een
105
25
140
5
Hy p er
Red
170
30
185
5
Meg a
Gr een
105
30
205
5
Un i t s
mW
mA
mA
V
-40
°
C To +85
°C
260
°
C For 5 Seconds
High Efficiency Red / Green L-469EGW
SPEC NO: KDA0317
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/17/2001
DRAWN: J.X.FU
PAGE: 3 OF 5
