3.3V Ultra Miniature SMD HCMOS TCXO/VCTCXO
Model: FOX924 SERIES
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 5/8/2007
http://www.foxonline.com/need_a_sample.htm
FEATURES
•
•
•
•
•
3.3V Operation
1.5mm Height Max
HCMOS Output
Low Cost
Tape and Reel (2,000 pcs. STD)
OPTIONS
• Voltage Control (FOX924E)
• PART NUMBER SELECTION
Model Frequency
Frequency
Operating
Part Number
Number Stability Temperature(ºC) Range (MHz)
718-Frequency-xxxxx FOX924B
See table
10.000~30.000
-30 ~ +85
719-Frequency-xxxxx FOX924E
See table
10.000~30.000
-30 ~ +85
5 .0±0.2
#4
#3
3 .2±0.2
#1
#2
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Temperature Range
Operating
(T
opr
)
Storage
(T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
Initial Frequency Tolerance
@ 25ºC
(after 2 reflows)
Frequency Stability
Over Temperature Range
Over Supply Voltage Change
(3.3V ± 5%)
Output Voltage
(HCMOS) (V
ol
)
(V
oh
)
Output Load
Aging per year
Startup Time
(Ts)
Pullability
(Vc = 1.65 ± 1.5V)
All specifications subject to change without notice.
MAX
(unless otherwise noted)
10.000 ~ 30.000 MHz
-30ºC ~ +85ºC
-40ºC ~ +85ºC
3.3V ± 5%
6.0mA
±1.5PPM
±2.5PPM
±0.3PPM
0.5V
80% V
dd
Min
15pF
±1.0PPM
5mS Max
±5.0 ~ ±15.0 PPM
#1
#4
1 .5 M ax
2.6
#2
1.4
#3
Recommended
Solder Pad Layout
2 .4
1.2
5.6
3.8
FOX924B
#1 NC
# 3 O u tp u t
# 2 G N D # 4 V
cc
Pin Connections
All dimensions are in millimeters.
FOX924E
#1 Vc
# 3 O u tp u t
# 2 G N D # 4 V
cc
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
3.3V Ultra Miniatrure SMD HCMOS TCXO/VCTCXO
Model: FOX924 SERIES
Page 2 of 2
RoHS Compliant / Pb Free
Rev. 5/8/2007
http://www.foxonline.com/need_a_sample.htm

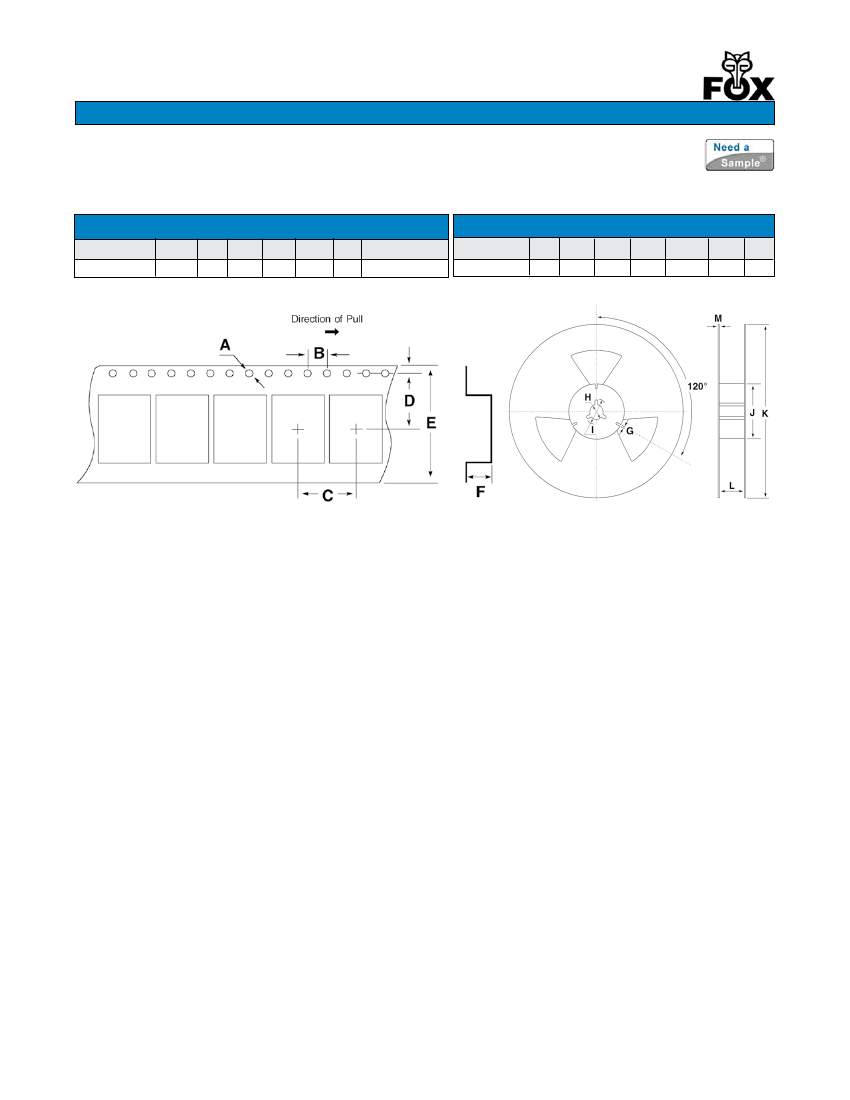

• TAPE SPECIFICATIONS
(millimeters)
MODEL
FOX924
B
C
A
∅1.5
4.0 8.0
• REEL SPECIFICATIONS
(millimeters)
G
I
J
K
L
H
M
2.0
∅13 ∅21 ∅80 ∅254
13.5 2.0
D
E
F
STD Reel QTY
MODEL
FOX924
2,000
5.5 12.0 1.7
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
