ATC 530Z BROADBAND MULTILAYER CAPACITORS
ATC 530Z Broadband
Multilayer Capacitors
Features:
• EIA 0201 Case Size
• Operating Frequency:
16 KHz to 20 GHz
• Insertion Loss: 0.4 dB typ.
• Low Loss X5R Dielectric
• RoHS Compliant Terminations
• Solderable SMT Terminations
ATC’s new 530Z Series Multilayer Broadband Capacitor
provides low insertion loss performance over multiple
octaves of frequency spectrum. The 530Z capacitor is
compatible with high speed automated pick and place
SMT manufacturing.
The 530Z is ideal for broadband DC blocking, coupling,
bypassing, and feedback applications in optical
communications systems and equipment using high-speed
digital logic.
Advantages:
• Broadband Performance
• Low Insertion Loss
• Flat Frequency Response
• Excellent Return Loss through 20 GHz
• Unit-to-Unit Performance Repeatability
• Rugged Ceramic Construction
0.0
-0.2
-0.4

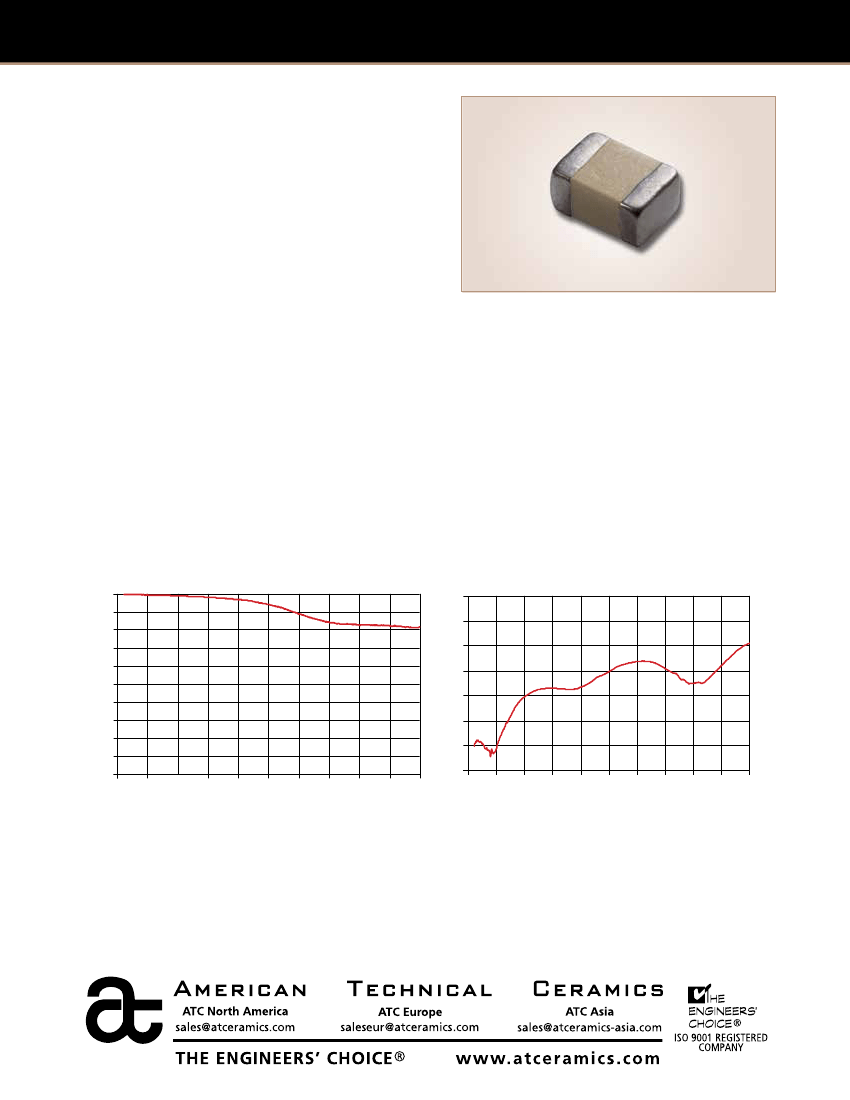

530Z Insertion Loss (S21)
0
-10
530Z Return Loss (S11)
Magnitude (dB)
-0.8
-1.0
-1.2
-1.4
-1.6
-1.8
-2.0
0
2
4
6
8
10
12
14
Typical
Magnitude (dB)
-0.6
-20
-30
-40
-50
Typical
-60
-70
16
18
20
0
2
4
6
8
10
12
14
16
18
20
Frequency (GHz)
Frequency (GHz)
ATC 530Z Data Sheet Test Condition Description
All testing performed on 10-mil-thick Rogers RO4350 microstrip board, with the UUT subtending a 10 mil gap in a 13.4-mil-wide center trace (nominal
50-ohm characteristic impedance). Measurements were made using an Anritsu 3680K Universal Test Fixture and an HP8722D Vector Network Analyzer
having a four-receiver architecture. Measurements have been de-embedded to the edges of the UUT using a standard TRL calibration procedure.
ATC 001-1145
Rev. C; 5/17
ATC 530Z BROADBAND MULTILAYER CAPACITORS
Electrical Specifications:
• Capacitance: 100 nF
• Rated Voltage: 10 WVDC
• Dielectric Withstanding Voltage (DWV):
250% of rated WVDC for 5 secs.
• Operating Temperature Range: -55°C to +85°C
• Temperature Coefficient of Capacitance (TCC):
±15% (-55°C to +85°C)
• Maximum DF: 15% @ 1KHz
• Insulation Resistance:
10
8
Ω min. @ +25°C @ rated WVDC
10
7
Ω min. @ +85°C @ rated WVDC
0.012
±0.001
(0.3
±0.03)
0.006 ±0.002
(0.15 ±0.05)
0.024
±0.001
(0.6
±0.03)

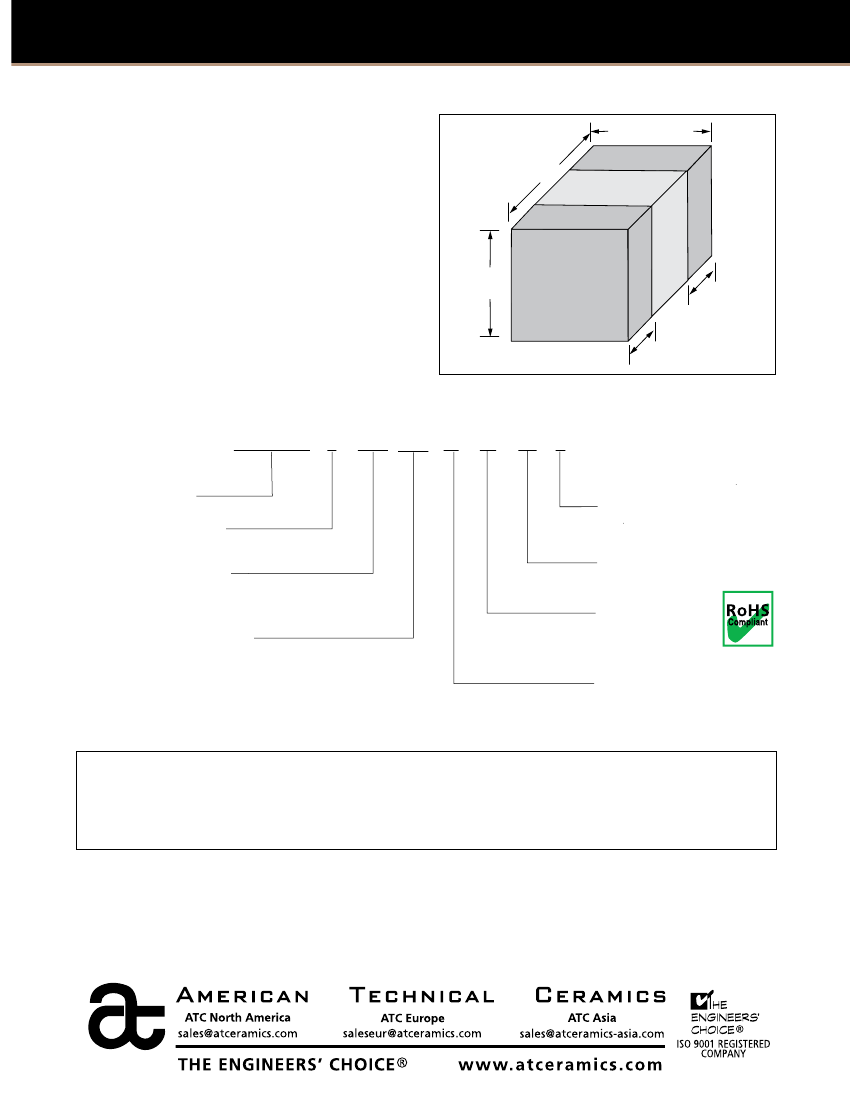

Mechanical Dimensions
0.012
±0.001
(0.3
±0.03)
0.006 ±0.002
(0.15 ±0.05)
inches (mm)
ATC 530 Series Part Number Code
ATC 530 Z
ATC Series
Case Size
(0201)
Capacitance Code
First 2 significant
digits for capacitance
Indicates number of
zeros following digits
of capacitance in pF
10
4
K
T
10 T
Packaging
T = Tape and reel
WVDC
Termination Code
T = Tin Plated over
Nickel Barrier.
RoHS Compliant
Capacitance
Tolerance
The above part number refers to a 530 Series (case size Z) 100 nF capacitor, K tolerance (±10%),
with T termination (tin plated over nickel barrier, RoHS compliant), 10 WVDC, tape and reel packaging.
ATC accepts orders for our parts using designations
with
or
without
the “ATC” prefix. Both methods of defining the part number are equivalent,
i.e., part numbers referenced with the “ATC” prefix are interchangeable to parts referenced without the “ATC” prefix. Customers are free to use
either in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC representative or call direct at (+1-631) 622-4700. Consult factory for addtional
performance data.
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document
#001-992 Rev. B 12/05). Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC’s website at www.atceramics.
com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements
of rights of third parties which may result from its use. ATC reserves the right to revise the content or modify its product line without prior notice.
© 2007 American Technical Ceramics. All Rights Reserved.
ATC 001-1145 Rev. C; 5/17
