Datasheet> All Categories > Passive components> inductor> LPO2506I-822LB

LPO2506I-822LB: DescriptionFixed Inductors LPO2506 Low Profile 8.2uH 0.2Ohms SMD; CategoryPassive components inductor; File Size194KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

LPO2506I-822LB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LPO2506I-822LB	-	-	View	Buy Now

LPO2506I-822LB Overview

Fixed Inductors LPO2506 Low Profile 8.2uH 0.2Ohms SMD

LPO2506I-822LB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	3631
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	3631
structure	Unshielded
core material	FERRITE
DC Resistance	0.2 Ω
Nominal inductance(L)	8.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.55 mm
Package length	9.14 mm
Package form	SMT
Package width	7.87 mm
method of packing	TR
Maximum rated current	1.5 A
self resonant frequency	65 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Silver/Palladium/Platinum - with Glass frit
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Web

page

Sample

& buy

Tools &

software

Support

& FAQ

Document 208-1

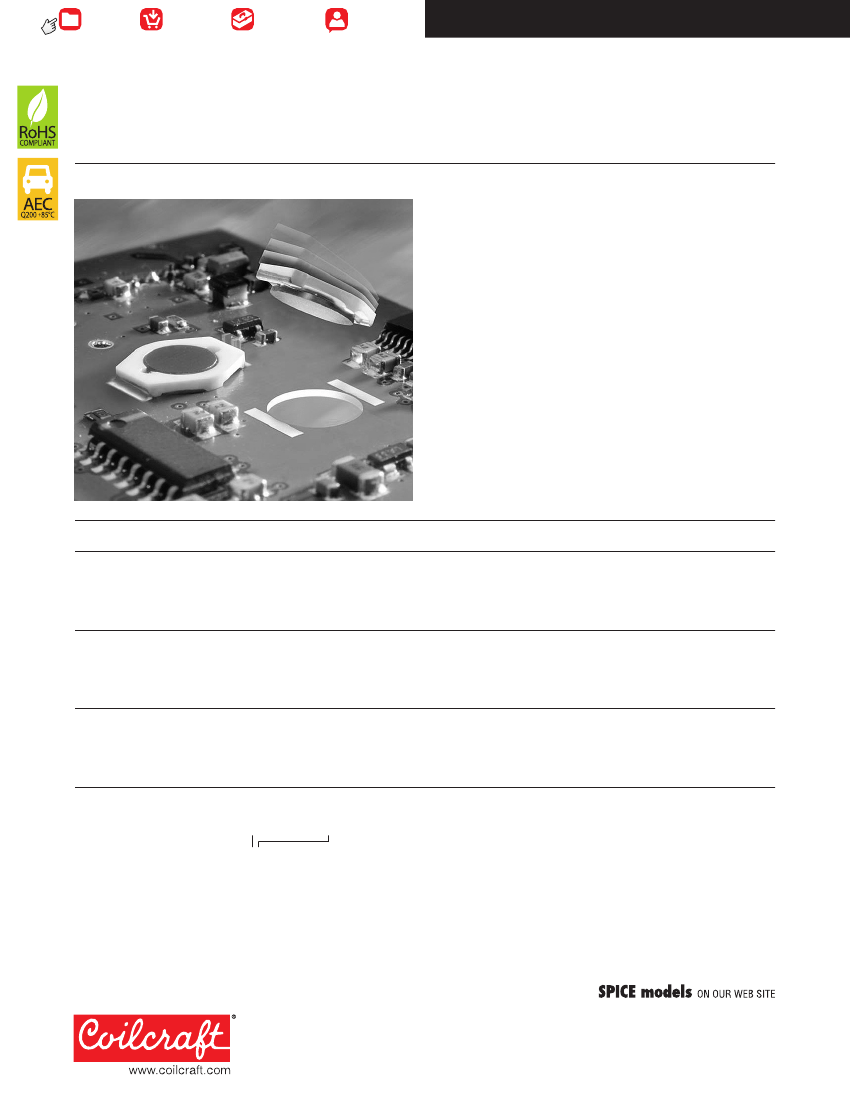

SMT Power Inductors - LPO2506

• On-board style – 1.65 mm high

• InBoard

style – only 1.19 high

Designer’s Kit C332

contains 3 of all InBoard

styles

Designer’s Kit C333

contains 3 of all On-board styles

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

240 – 260 mg

Ambient temperature

–40°C to +85°C with

Irms

current

Maximum part temperature

+125°C (ambient + temp rise)

Storage temperature

Component: –40°C to +125°C

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick,

8 mm pocket spacing, 1.37 mm pocket depth

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

InBoard style

part number

LPO2506I-472L_

LPO2506I-682L_

LPO2506I-822L_

LPO2506I-103L_

LPO2506I-153L_

LPO2506I-223L_

LPO2506I-333L_

LPO2506I-473L_

LPO2506I-683L_

LPO2506I-104L_

LPO2506I-154L_

LPO2506I-224L_

LPO2506I-334L_

LPO2506I-474L_

LPO2506I-684L_

LPO2506I-105L_

On-board style

part number

LPO2506O-472L_

LPO2506O-682L_

LPO2506O-822L_

LPO2506O-103L_

LPO2506O-153L_

LPO2506O-223L_

LPO2506O-333L_

LPO2506O-473L_

LPO2506O-683L_

LPO2506O-104L_

LPO2506O-154L_

LPO2506O-224L_

LPO2506O-334L_

LPO2506O-474L_

LPO2506O-684L_

LPO2506O-105L_

L ±20%

(µH)

4.7

6.8

8.2

100

150

220

330

470

680

1000

DCR max

(Ohms)

0.145

0.165

0.200

0.240

0.300

0.420

0.550

0.765

1.10

1.60

2.50

3.65

4.65

6.75

9.15

14.20

SRF typ

(MHz)

8.0

6.5

5.5

4.5

Isat

(A)

1.6

1.3

1.0

0.90

0.70

0.60

0.50

0.40

0.30

0.25

0.22

0.18

0.14

0.12

0.10

Irms

(A)

1.9

1.7

1.5

1.3

1.0

0.90

0.70

0.60

0.50

0.40

0.32

0.28

0.24

0.20

0.16

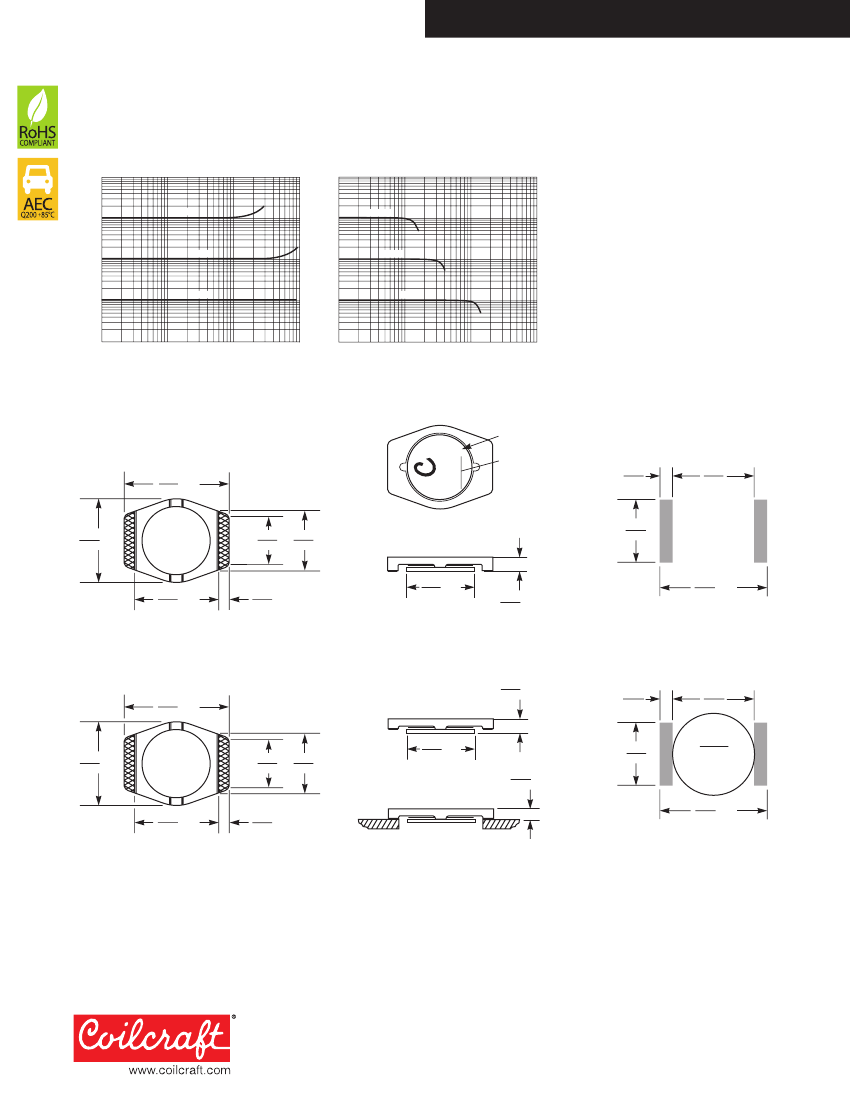

1. When ordering, please specify

termination

and

packaging

codes:

LPO2506O-105LD

Termination: L

= RoHS compliant silver-palladium-platinum-glass frit

Special order: T

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter D instead.

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP

4263B LCR meter or equivalent.

3. DC current at which the inductance drops 10% (typ) from its value

without current.

4. Current that causes a 40°C temperature rise from 25°C ambient.

5. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 208-1

Revised 06/07/17

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
