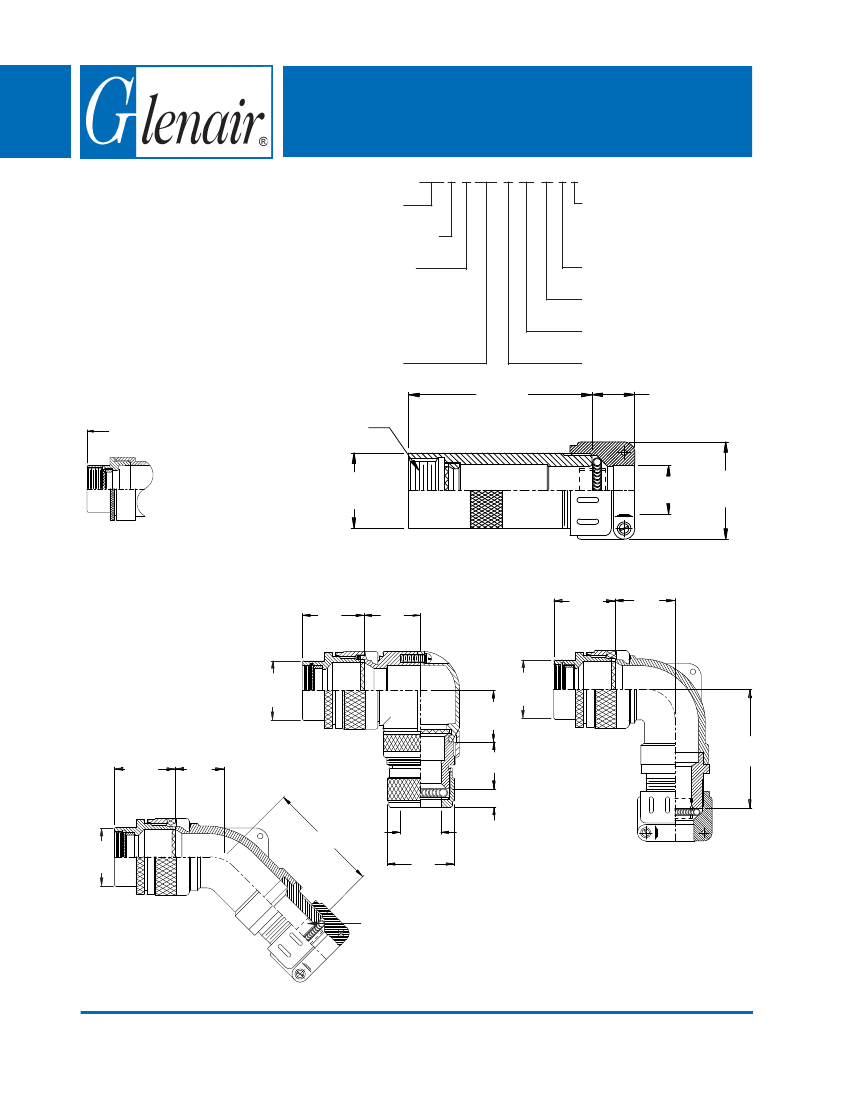

460-002
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief
Direct Coupling - Low Profile and Split 90°
460
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 7
CONNECTOR
DESIGNATORS
*
460 F S 002 M 16 05 F 6
Product Series
Connector Designator
Angle and Profile
A = 90° Solid
B = 45°
D = 90° Split
S = Straight
Basic Part No.
Length *
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (F, G)
Cable Entry (Tables IV, V)
Shell Size (Table I)
Finish (Table II)
.690 (17.5) Max
DIRECT COUPLING
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 5)
A Thread
(Table I)
B
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
* Length ± .060 (1.52)
Minimum Order Length 1.5 Inch
(See Note 5)
J
E
(Table III) (Table V)
Cable
Range
M
(Table IV)
Shown with Style F
Strain Relief
G
J
(Table III) (Table V)
B
(Table I)
F
(Table V)
90° SPLIT
Shown with
Style G
Strain Relief
Cable
Range
(Note 6)
B
(Table I)
J
K
.880 (22.4) Max
H
(Table V)
(Table III) (Table V)
B
(Table I)
L (Table V)
.416 (10.6)
Max
N
(Table IV)
469-001-XX Shield Support Ring
(order separately) is recommended
for use in all G-Spring backshells
(see page 463-8)
CAGE Code 06324
90° SOLID
Shown with Style F
Strain Relief
Shown with Style F
Strain Relief
© 2005 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 460 - Page 6
with Strain Relief
Direct Coupling - Low Profile and Split 90°
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
C
J-H-L-S
D-B-G-K
1.180(30.0) 1.440(36.6)
1.180(30.0) 1.440(36.6)
1.180(30.0) 1.440(36.6) 1.735(44.1)
1.180(30.0) 1.440(36.6) 1.915(48.6)
1.380(35.0) 1.560(39.6) 1.915(48.6)
1.380(35.0) 1.560(39.6) 1.915(48.6)
1.380(35.0) 1.560(39.6) 1.915(48.6)
1.380(35.0) 1.560(39.6) 1.915(48.6)
1.380(35.0) 1.560(39.6) 1.915(48.6)
1.610 (40.9) 1.560(39.6) 1.915(48.6)
1.610(40.9) 1.750(44.5) 1.915(48.6)
1.610(40.9) 1.750(44.5) 1.915(48.6)
1.610(40.9) 2.190(55.6) 1.915(48.6)
TABLE IV: CABLE ENTRY
Cable Range
N
Dash
M
Max
Max
No.
Max
Min
01
.843 (21.4) .625 (15.9) .156 (4.0) .250 (6.4)
.968 (24.6) .750 (19.1) .188 (4.8) .375 (9.5)
02
03 1.046 (26.6) .875 (22.2) .250 (6.4) .438 (11.1)
04 1.156 (29.4) 1.000 (25.4) .280 (7.1) .500 (12.7)
05 1.218 (30.9) 1.125 (28.6) .375 (9.5) .625 (15.9)
06 1.343 (34.1) 1.250 (31.8) .500 (12.7) .750 (19.1)
07 1.468 (37.3) 1.375 (34.9) .625 (15.9) .875 (22.2)
08 1.593 (40.5) 1.500 (38.1) .750 (19.1) 1.000 (25.4)
09 1.718 (43.6) 1.625 (41.3) .875 (22.2) 1.125 (28.6)
10 1.843 (46.8) 1.750 (44.5) 1.000 (25.4) 1.250 (31.8)
11* 2.187 (55.5) 1.875 (47.6) 1.125 (28.6) 1.375 (34.9)
12* 2.312 (58.7) 2.000 (50.8) 1.250 (31.8) 1.500 (38.1)
13* 2.437 (61.9) 2.125 (54.0) 1.375 (34.9) 1.625 (41.3)
14* 2.546 (64.7) 2.250 (57.2) 1.500 (38.1) 1.750 (44.5)
* Consult factory for availability
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
Dash
No.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
1.
2.
3.
4.
E
Max
.680 (17.3)
.750 (19.1)
.810 (20.6)
.870 (22.1)
.930 (23.6)
1.000 (25.4)
1.060 (26.9)
1.120 (28.4)
1.180 (30.0)
1.180 (30.0)
1.312 (33.3)
1.562 (39.7)
1.562 (39.7)
1.688 (42.9)
F
Max
.560 (14.2)
.620 (15.7)
.690 (17.5)
.720 (18.3)
.820 (20.8)
.880 (22.4)
.940 (23.9)
1.000 (25.4)
1.060 (26.9)
1.060 (26.9)
1.219 (31.0)
1.438 (36.5)
1.438 (36.5)
1.656 (42.1)
TABLE V: DIMENSIONS
G
H
Max
Max
.636 (16.2)
1.670 (42.4)
.710 (18.0)
1.790 (45.5)
1.810 (46.0)
.734 (18.6)
.825 (21.0)
1.880 (47.8)
.988 (25.1)
1.970 (50.0)
1.087 (27.6)
2.140 (54.4)
1.087 (27.6)
2.140 (54.4)
1.325 (33.7)
2.250 (57.2)
2.250 (57.2)
1.325 (33.7)
2.420 (61.5)
1.337 (34.0)
1.827 (46.4)
2.670 (67.8)
1.827 (46.4)
2.670 (67.8)
2.670 (67.8)
2.027 (51.5)
2.027 (51.5)
2.670 (67.8)
K
Max
.630 (16.0)
.630 (16.0)
.692 (17.6)
.755 (19.2)
.848 (21.5)
1.036 (26.3)
1.036 (26.3)
1.130 (28.7)
1.130 (28.7)
1.255 (31.9)
1.317 (33.5)
1.317 (33.5)
1.348 (34.2)
1.348 (34.2)
L
Max
1.720 (43.7)
1.720 (43.7)
1.780 (45.2)
1.870 (47.5)
1.980 (50.3)
2.170 (55.1)
2.170 (55.1)
2.320 (58.9)
2.320 (58.9)
2.370 (60.2)
2.470 (62.7)
2.470 (62.7)
2.560 (65.0)
2.560 (65.0)
Shield Support Ring (469-001-XX) is recommended for use in all G-Spring backshells (see page 463-8).
When maximum cable entry (page 22) is exceeded, Style 2 will be supplied. Angular Function S only.
Metric dimensions (mm) are indicated in parentheses.
Cable range is defined as the accommodations range for the wire bundle or cable. Dimensions shown
are not intended for inspection criteria.
5. Consult factory for shorter lengths on straight backshells.
6. Maximum cable entry available for split elbow is 1.188 (30.2).
7. When using Connector Designator B refer to pages 18 and 19 for part number development.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 460 - Page 7
460
460-002
EMI/RFI Non-Environmental G-Spring Backshell
