172-009-112R001 datasheet, PDF

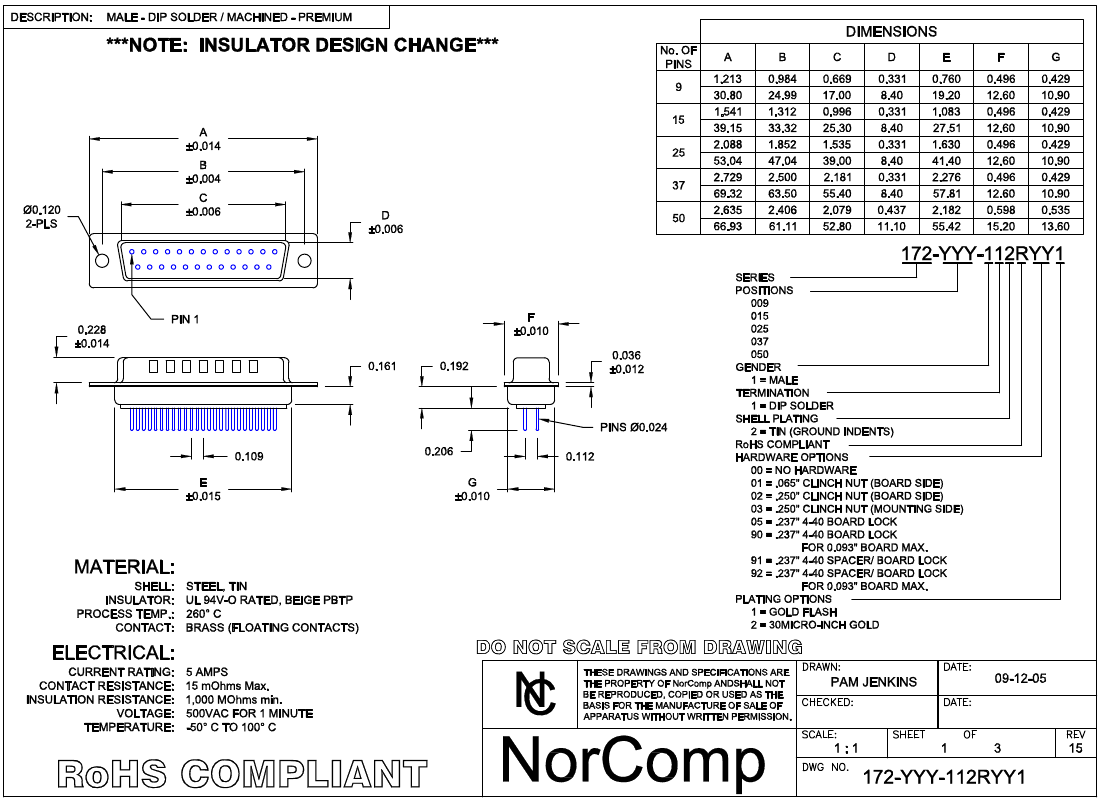

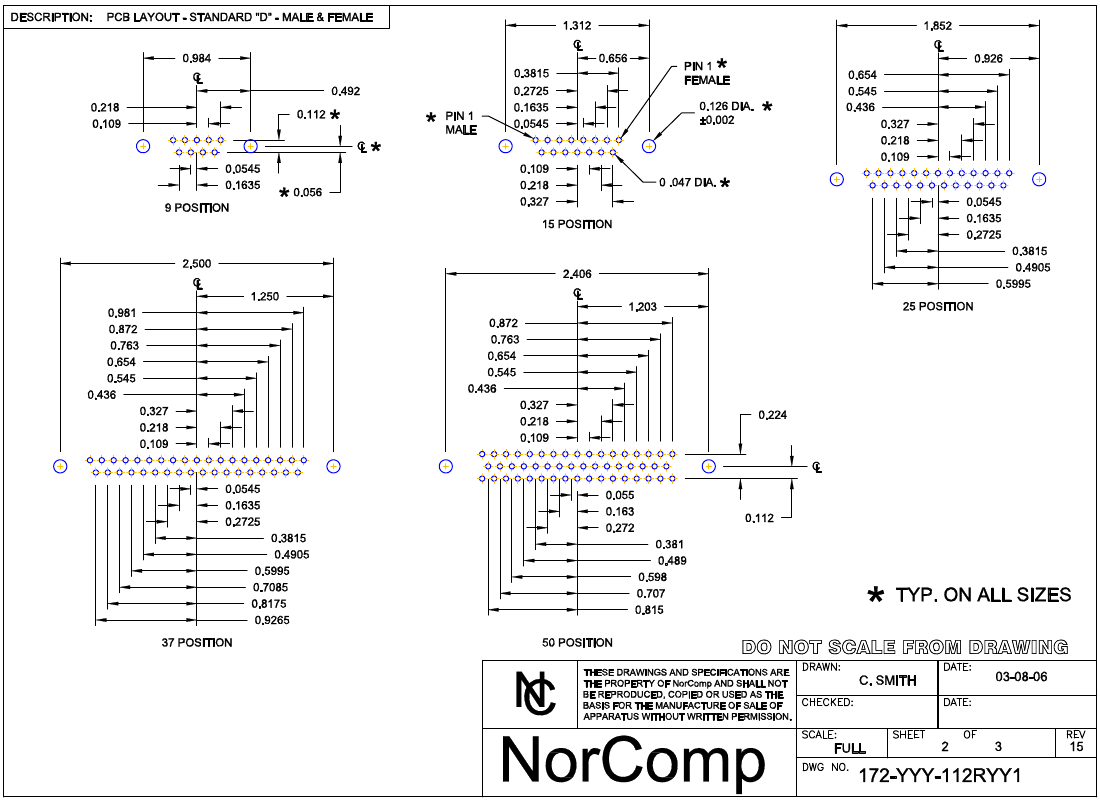

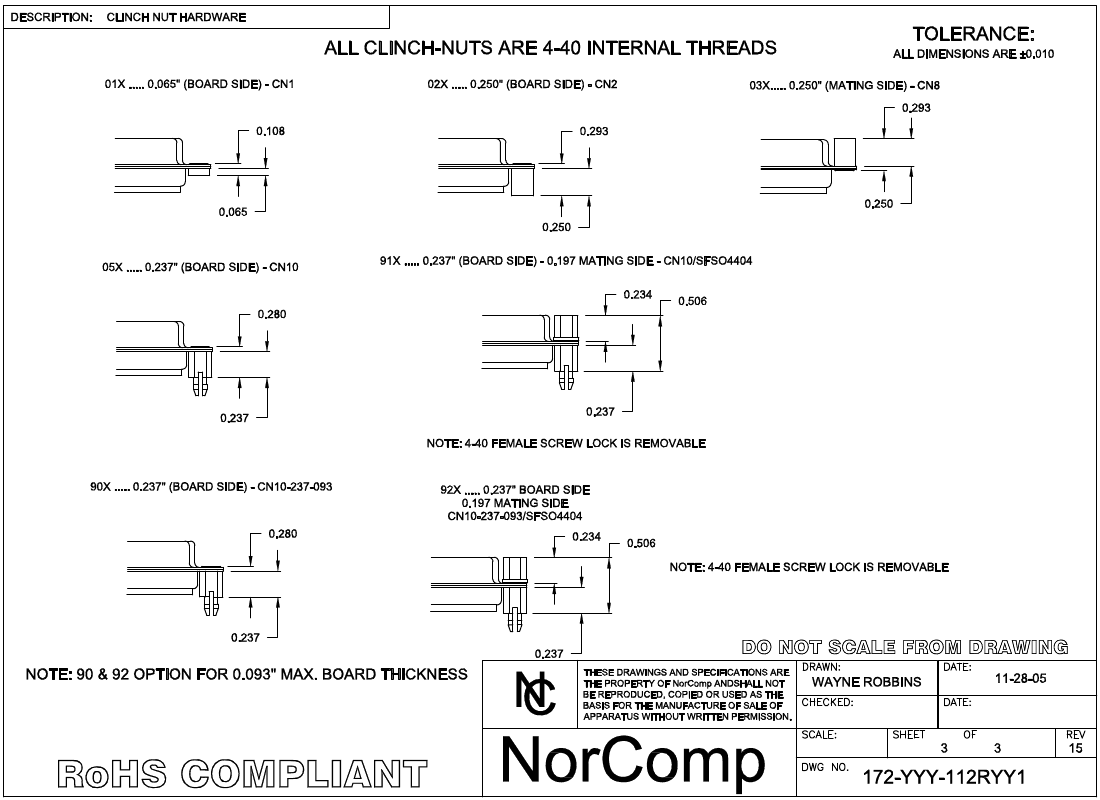

172-009-112R001: DescriptionD-Sub Standard Connectors 9POS Male 5A Steel; CategoryThe connector The connector; File Size387KB，3 Pages; ManufacturerNorComp; Websitehttps://www.norcomp.net; Environmental Compliance

Download Datasheet Parametric View All

172-009-112R001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	172-009-112R001	-	-	View	Buy Now

D-Sub Standard Connectors 9POS Male 5A Steel

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.496 inch
subject depth	0.192 inch
body length	1.213 inch
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	MACHINED
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold Flash (Au)
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.109 inch
Plug information	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	100 °C
Minimum operating temperature	-50 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.206 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1
