AM79231JC: DescriptionIntelligent Subscriber Line Interface Circuit (ISLIC); File Size276KB，28 Pages; ManufacturerETC

Download Datasheet Compare View All

AM79231JC Overview

Intelligent Subscriber Line Interface Circuit (ISLIC)

Preview

Download Datasheet

View All

Intelligent Access

Voice Solutions

Am79231

Intelligent Subscriber Line Interface Circuit (ISLIC

™

)

DISTINCTIVE CHARACTERISTICS

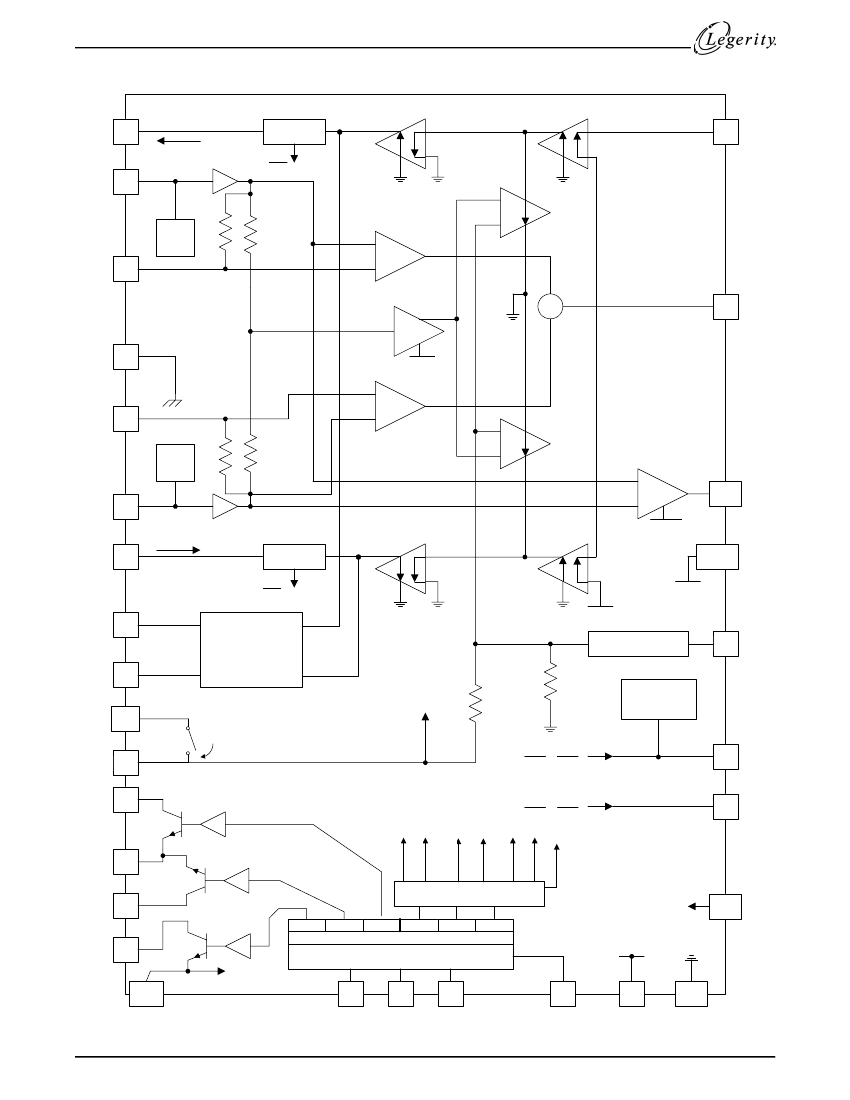

BLOCK DIAGRAM

HPA

HPB

Two-Wire

Interface

TMN

TMP

TMS

Thermal

Management

Control

Fault

Meas.

VBL

Switch

Driver

VBH

RYE

Relay

Drivers

Relay Control

Input Decoder and

Control Registers

Relay

Driver 1

BGND

GND

— Voice transmission

— Programmable DC feed characteristics

— Independent of battery

— Current limited

— Selectable off-hook and ground-key thresholds

— Subscriber line diagnostics

— Leakage resistance

— Loop resistance

— Line capacitance

— Bell capacitance

— Foreign voltage sensing

— Power cross and fault detection

Monitor of two-wire interface voltages and

currents supports

+5 V and battery supplies

Dual battery operation for system power saving

— Automatic battery switching

— Intelligent thermal management

Compatible with inexpensive protection

networks

— Accommodates low tolerance fuse resistors or

PTC thermistors

Metering capable

— 12 kHz and 16 kHz

— Smooth polarity reversal

Tip-open state supports ground start signaling

Ring relay driver for external ringing

Integrated test load switches/relay drivers

Signal

Transmission

RSN

VTX

Longitudinal

Control

Gain/Level Shift

VLB

Attenuator

VSAB

VREF

Signal

Conditioning

IMT

ILG

CREF

VCC

Pub. #

080248

Rev:

Amendment:

Issue Date:

December 1999

TABLE OF CONTENTS

Distinctive Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Distinctive Characteristics of the Intelligent Access™ Voice Chipset . . . . . . . . . . . . . . . . . . . . . . 3

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Intelligent Access™ Voice Chipsets Linecard With Am79231 . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Linecard Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Environmental Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Electrical Maximum Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Target Specifications (See note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Relay Driver Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Am79231 Transmission Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Am79231 Current-Limit Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Am79231 Fault Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Thermal-Management Equations (All Modes except Standby) . . . . . . . . . . . . . . . . . . 21

Timing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

PL032 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Revision Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Revision A to Revision B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Revision B to Revision C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Am79231 Data Sheet
