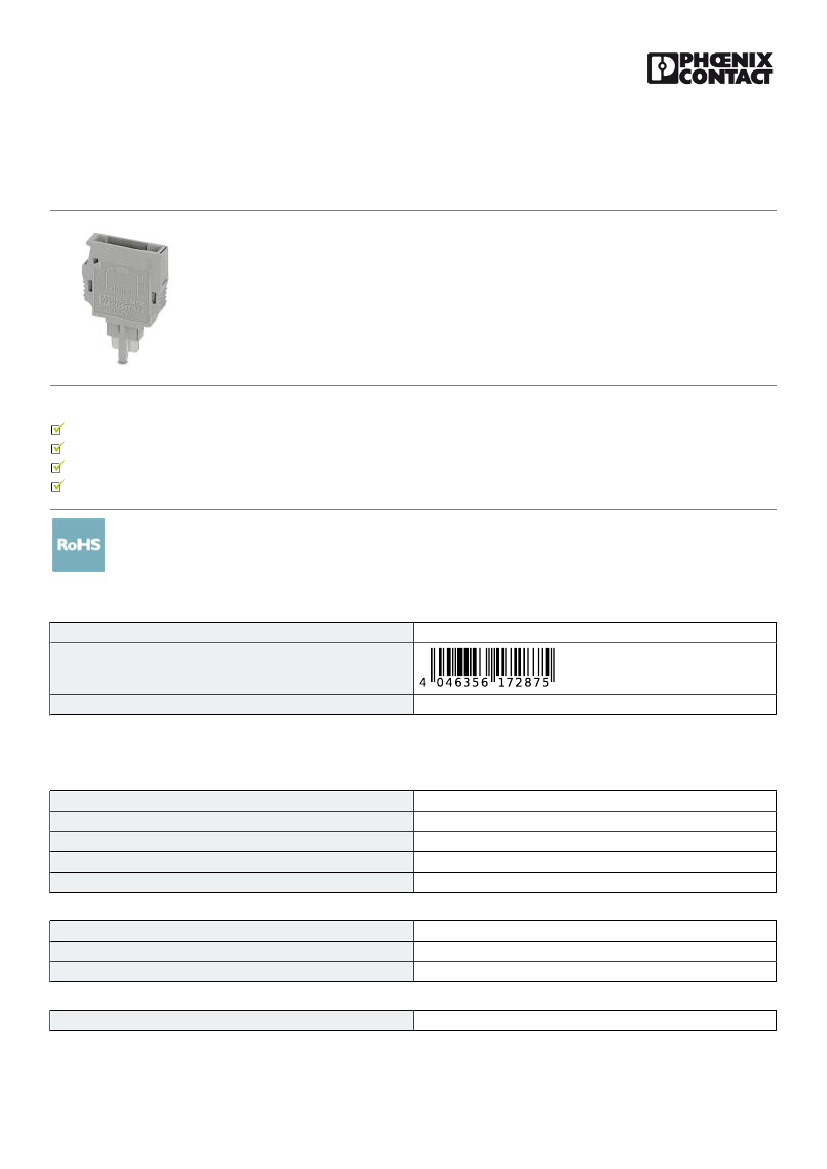

Component connector - P-CO 1N4007/L-R - 3032460
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Component connector, with diode1N4007, length: 24.2 mm, width: 5.2 mm, height: 33.3 mm, number of
positions: 1, color: gray
Your advantages
For assembly, the spring-cage connections are opened or closed inside the plug with just one turn of a standard screwdriver
Can be used in all disconnect terminal blocks of the range ...-TG with 5.2 mm width or wider, from the PT, ST, QTC and UT series
The P‑CO patented component plug can accommodate components quickly and reliably using spring-cage contacts
A coding recess ensures protection against polarity reversal
Key Commercial Data
Packing unit
GTIN
GTIN
4046356172875
10 pc
Technical data
General
Number of positions
Potentials
Color
Insulating material
Flammability rating according to UL 94
1
1
gray
PA
V0
Dimensions
Width
Length
Height
5.2 mm
24.2 mm
33.3 mm
General
Maximum load current
1A
10/24/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3032460
Component connector - P-CO 1N4007/L-R - 3032460
Technical data
General
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Standards and Regulations
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
Drawings
Schematic diagram
24,2
Approvals
Approvals
33,3
10/24/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3032460
Component connector - P-CO 1N4007/L-R - 3032460
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
EAC-Zulassung
