K66X-E15P-N
Part Number Builder
LR78160
D-SUBMINIATURE CONNECTORS:
K66X
Series
K66X
Series
E15
Shell Size
Contact
P
Contact
Type
N
Mounting
Option
Plating
Option
Right Angle PCB Mount
K66X

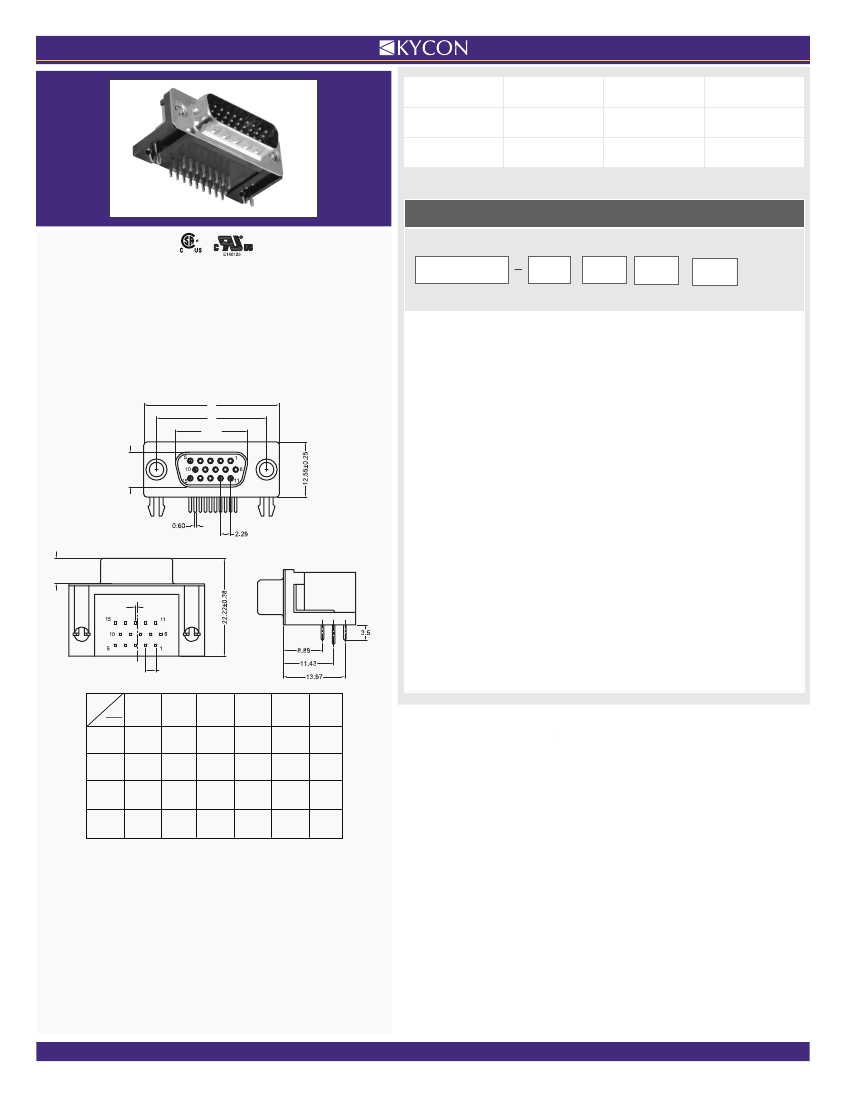

Series Dimensions
Dimensions in mm
A
B
C, C1
Series
K66X
-
High Density D-Subminiature Connector,
Right Angle PCB Termination, 0.350” Footprint
Shell Size-Contact Option
E
- 15 Contacts
A
- 26 Contacts
B
- 44 Contacts
C
- 62 Contacts
Contact Type
P
-
Pin Contact (Plug)
S
-
Socket Contact (Receptacle)
Mounting Option
N
-
With Boardlocks and #4-40 UNC Threaded Inserts
NJ
-
With Boardlocks and #4-40 Jackscrews Installed
8.36 Plug Interior
7.90 Socket Exterior
6.1 Plug
5.8 Socket
E
Plating Option
Blank
-
Gold Flash
30
-
30µ” Gold
D
Contact Kycon for VESA and Other Options
B
±
.005
±
0.13
.984
24.99
1.312
33.32
1.852
47.04
2.500
63.50
C
±
.010
±
.0.25
.643
16.33
.971
24.66
1.511
38.38
2.159
54.84
C1
±
.010
±
0.25
.666
16.92
.994
25.25
1.534
38.96
2.182
55.42
D
±
.005
±
0.13
.090
2.29
.090
2.29
.090
2.29
.095
2.41
E
±
.005
±
0.13
.010
0.25
.020
0.51
.020
0.51
.023
0.58
Shell
Size
A
In
±
.015
mm
±
0.38
15
1.213
(E)
30.81
1.541
39.14
2.088
53.04
2.729
69.32
26
(A)
44
(B)
62
(C)
C = Exterior of Female Shell (S)
C1 = Interior of Male Shell (P)
Electrical Characteristics
Rated Current:
1.5A
Rated Voltage:
29Vac
