801-43-036-10-013000 Overview

Headers & Wire Housings 36P SNGLROW LO PROFILE SKT LONG INS

801-43-036-10-013000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	GOLD (30) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	801
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

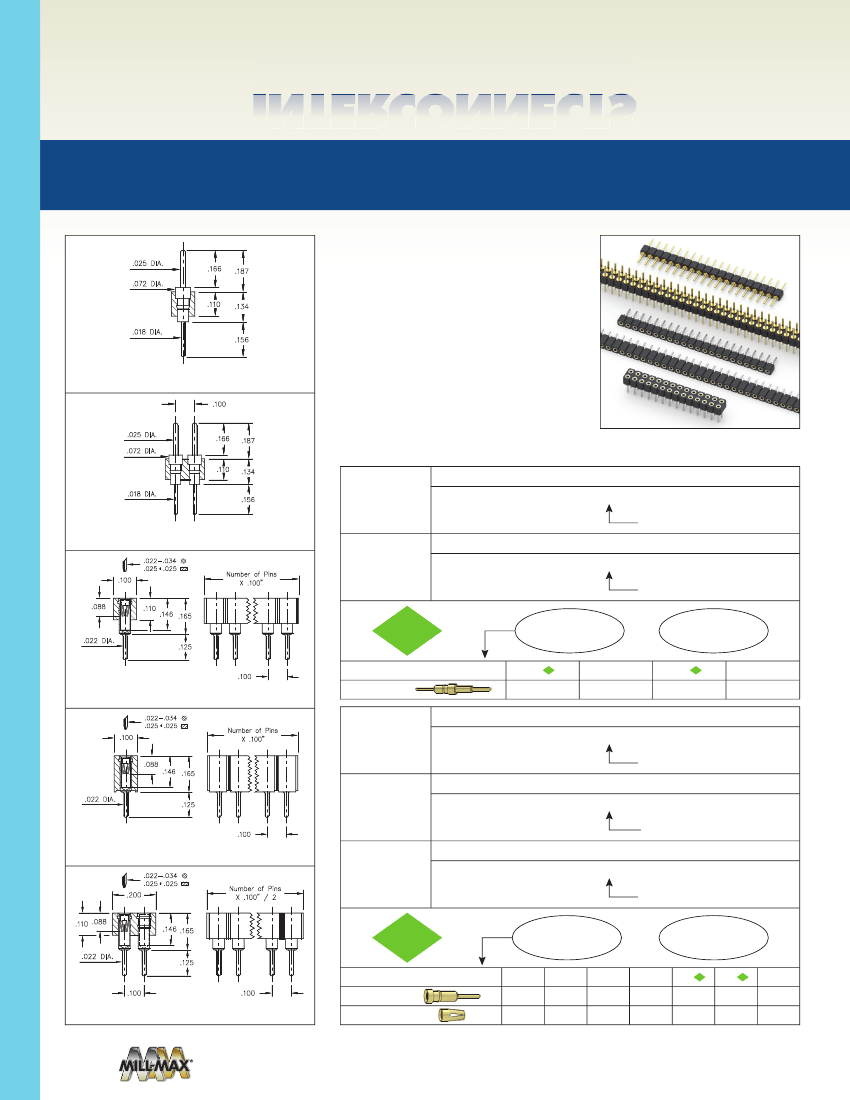

SERIES 350, 450, 801, 803 • .100” GRID (.025” DIA. PINS),

LOW PROFILE HEADERS & VERSATILE SOCKETS • SINGLE & DOUBLE ROW STRIPS

•

Series 350 and 450 single and double row pin

.025 DIA.

.072 DIA.

.110

.134

.166

.187

headers use MM #0290 pins. See page 215 for

details

pro le sockets use MM #1303 receptacles.

See page 180 for details

•

Series 801 and 803 single and double row low

.156

.018 DIA.

•

Series 801 and 803 receptacles use Hi-Rel,

FIG. 1

.100

.025 DIA.

.072 DIA.

.110

.134

6- nger BeCu #16 contact rated at 4.5 amps.

Receptacles accept .025” diameter and .025”

square pins. See page 256 for details

suitable for all soldering operations

•

Insulators are high temperature thermoplastic,

.187

.166

ORDERING INFORMATION

Series 350...001

.018 DIA.

.156

FIG. 1

Series 450...001

Single Row .025” Pin / .018” Solder Tail

350 XX 1_ _ 00 001000

01-64

FIG. 2

.022-.034

.025 .025

Specify number of pins

.100

Number of Pins

X .100"

FIG. 2

RoHS - 2

Double Row .025” Pin / .018” Solder Tail

450 XX 2_ _ 00 001000

04-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

XX=Plating Code

See Below

10

µ”

Au

.088

.110

.146 .165

.022 DIA.

2011/65/EU

.125

.100

SPECIFY PLATING CODE XX=

Pin Plating

90

200

µ”

Sn/Pb

40

200

µ”

Sn

FIG. 3

.022-.034

.025 .025

Series 801...003

Number of Pins

X .100"

.100

FIG. 3

Series 801...013

Low Pro le Socket

short insulator)

801 XX 0_ _ 10 003000

01-64

.088

.146 .165

Specify number of pins

.022 DIA.

.125

FIG. 4

.100

Low Pro le Socket

long insulator)

801 XX 0_ _ 10 013000

01-36

Specify number of pins

FIG. 4

PAGE 52 | INTERCONNECTS

.022-.034

.025 .025

Series 803...003

Number of Pins

X .100" / 2

FIG. 5

RoHS - 2

Double Row Low Pro le Socket

803 XX 0_ _ 10 003000

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.200

Specify number of pins

XX=Plating Code

See Below

.110 .088

.146 .165

2011/65/EU

.022 DIA.

.125

.100

FIG. 5

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

41

200

µ”

Sn

10

µ”

Au

43

200

µ”

Sn

30

µ”

Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

801-43-036-10-013000 Related Products

	801-43-036-10-013000	801-43-005-10-003000	803-43-072-10-003000	CRCW251210010K21%R82
Description	Headers & Wire Housings 36P SNGLROW LO PROFILE SKT LONG INS	Headers & Wire Housings 4P 1 ROW SOCKET THRU HOLE	Headers & Wire Housings 72 PIN DOUBLE ROW LOW PROFILE SKT	Fixed Resistor, Metal Glaze/thick Film, 1W, 10200ohm, 500V, 1% +/-Tol, -100,100ppm/Cel, 2512,
Is it Rohs certified?	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	not_compliant
JESD-609 code	e4	e4	e4	e0
Is it lead-free?	Lead free	Lead free	Lead free	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	-
Body/casing type	SOCKET	SOCKET	SOCKET	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (100)	GOLD (30) OVER NICKEL (50)	-
Contact completed and terminated	GOLD (30) OVER NICKEL (50)	GOLD (30)	GOLD (30) OVER NICKEL (50)	-
Contact point gender	FEMALE	FEMALE	FEMALE	-
Contact material	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER	-
DIN compliance	NO	NO	NO	-
Filter function	NO	NO	NO	-
IEC compliance	NO	NO	NO	-
MIL compliance	NO	NO	NO	-
Manufacturer's serial number	801	801	803	-
Mixed contacts	NO	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	-
Number of rows loaded	1	1	2	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Termination type	SOLDER	SOLDER	SOLDER	-
Total number of contacts	36	5	72	-
