854909 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 854909

854909: DescriptionSignal Conditioning 140MHz BW 4MHz SAW Filter; CategoryAnalog mixed-signal IC filter; File Size436KB，5 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com; Environmental Compliance

Download Datasheet Parametric Compare View All

854909 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	854909	-	-	View	Buy Now

854909 Overview

Signal Conditioning 140MHz BW 4MHz SAW Filter

854909 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Qorvo
package instruction	SMP-53, 12 PIN
Reach Compliance Code	compliant
ECCN code	5A991.B
Other features	TAPE AND REEL
Center frequency or cutoff frequency (fo/fc)	140 MHz
filter type	SAW FILTER
high	2 mm
input resistance	50 OHM
Maximum insertion loss	12.5 dB
JESD-609 code	e4
length	13.3 mm
Installation type	SURFACE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L13.3XB6.5XH2.0 (mm)/L0.524XB0.256XH0.079 (inch)
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
width	6.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Data Sheet

Features

•

Usable bandwidth of 4 MHz

Typical 3 dB bandwidth of 4.6 MHz

Low loss

High attenuation

Single-ended operation, 50Ω

Ceramic Surface Mount Package (SMP)

Hermetic

Part Number 854909

140 MHz SAW Filter

•

Package

Surface Mount 13.30 x 6.50 x 1.75 mm

Pin Configuration

Bottom View

1.75 NOM.

1.96 MAX.

0.76

13.3

2.54

2.18

6.50

2.54

1.17 x 3.76

0.79

1.50

Pin No.

6,12

1,2,3,4

7,8,9,10

Description

Output

Input

Ground

Case Ground

Dimensions shown are nominal in millimeters

All tolerances are

±0.15mm

except overall

length and width

±0.10mm

Body:

ceramic

Lid:

Kovar, Ni

plated

Terminations:

plating 0.5 - 1.0µm,

over a 2 - 6µm

plating

Subject to change or obsolescence without notice

Rev -

09-May-2005

Page 1 of 5

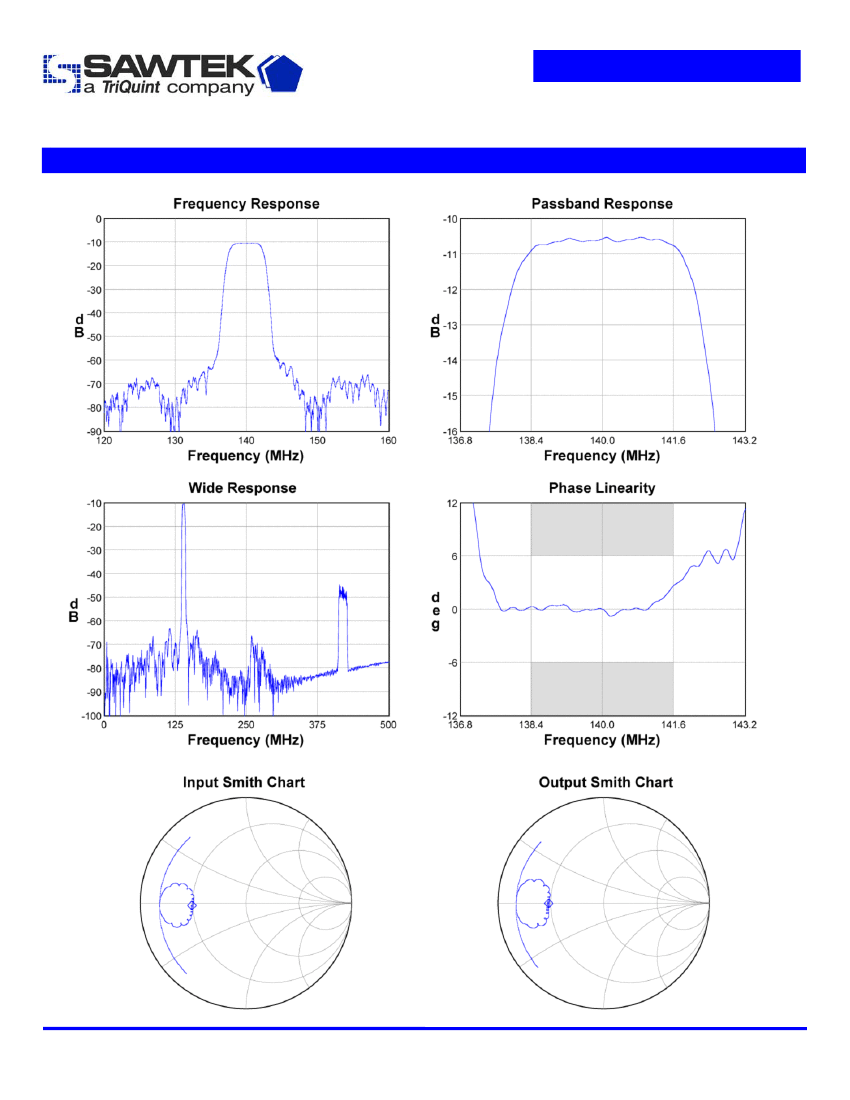

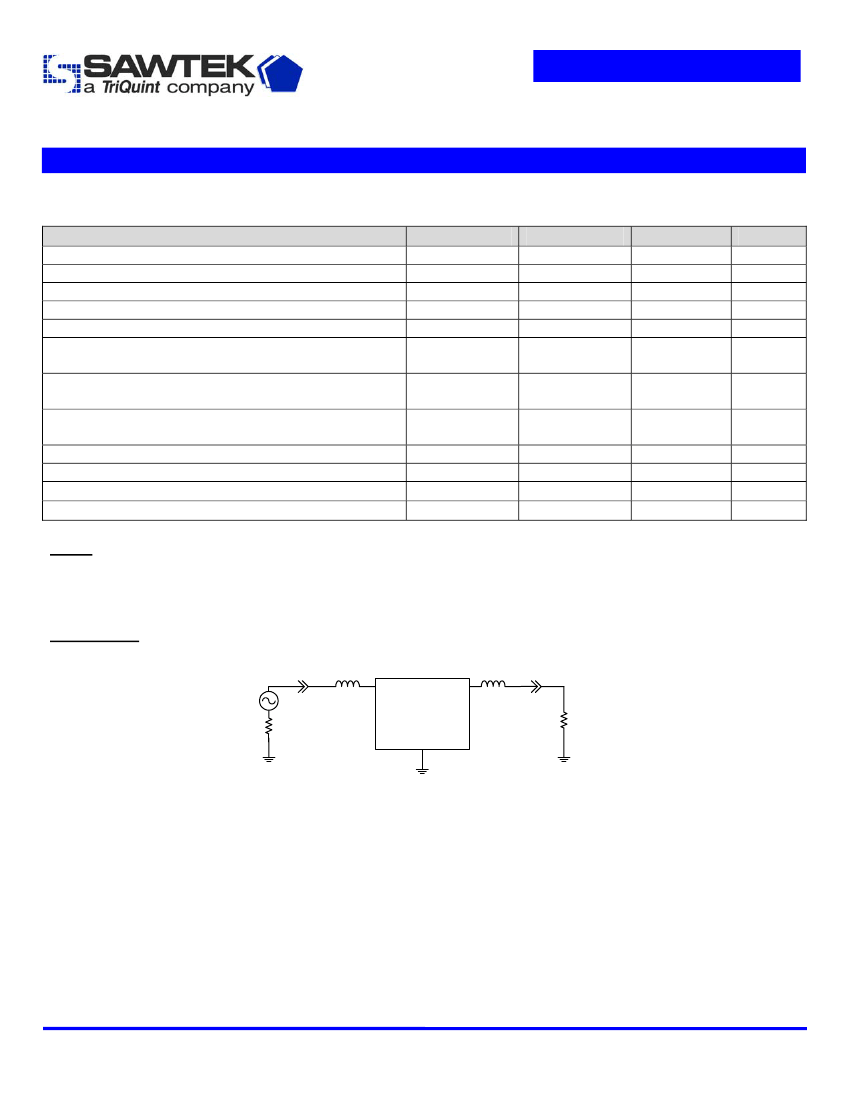

854909 Related Products

	854909	854909-EVB
Description	Signal Conditioning 140MHz BW 4MHz SAW Filter	Signal Conditioning 140MHz BW 4.6MHz Eval Board
